SUN HYDRAULICS
CXBBECV/AP
$181.60 USD
Tags:
- SUN HYDRAULICS
- Material:CXBBECV/AP
- Model:CXBB-ECV/AP
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXBBECV/AP (CXBBECV/AP) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model facilitates free flow from the inlet port 1 to the outlet port 2 while effectively blocking flow in the reverse direction, ensuring operational security and system integrity. The CXBBECV/AP is characterized by its extremely low leakage rates, with a maximum leakage of less than 1 drop per minute (0.07 cc/min), which stands out in maintaining system efficiency and reducing fluid loss. This valve is capable of handling a maximum operating pressure of 5000 psi (350 bar) at both ports, accommodating rigorous application demands. It features a T-16A cavity and conforms to Series 0 specifications, with a flow capacity of up to 10 gpm (40 L/min). The construction of the CXBBECV/AP incorporates Sun's floating style design, which minimizes potential internal part binding that could arise from excessive installation torque or variations in cavity/cartridge machining. Additional technical specifications include a valve hex size of 3/4 in. (19.1 mm) and an installation torque range of 20 - 25 lbf\u00b7ft (27 - 33 Nm). The model weighs approximately .20 lb (0.10 kg), making it lightweight yet robust for various hydraulic setups. For maintenance or repairs, it uses a Viton seal kit/cartridge specified under part number 990162006. This check valve is ideal for applications where space and reliability are critical, offering an efficient solution for controlling directional flow in hydraulic circuits.
The Sun Hydraulics CXBBECV/AP (CXBBECV/AP) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model facilitates free flow from the inlet port 1 to the outlet port 2 while effectively blocking flow in the reverse direction, ensuring operational security and system integrity. The CXBBECV/AP is characterized by its extremely low leakage rates, with a maximum leakage of less than 1 drop per minute (0.07 cc/min), which stands out in maintaining system efficiency and reducing fluid loss. This valve is capable of handling a maximum operating pressure of 5000 psi (350 bar) at both ports, accommodating rigorous application demands. It features a T-16A cavity and conforms to Series 0 specifications, with a flow capacity of up to 10 gpm (40 L/min). The construction of the CXBBECV/AP incorporates Sun's floating style design, which minimizes potential internal part binding that could arise from excessive installation torque or variations in cavity/cartridge machining. Additional technical specifications include a valve hex size of 3/4 in. (19.1 mm) and an installation torque range of 20 - 25 lbf\u00b7ft (27 - 33 Nm). The model weighs approximately .20 lb (0.10 kg), making it lightweight yet robust for various hydraulic setups. For maintenance or repairs, it uses a Viton seal kit/cartridge specified under part number 990162006. This check valve is ideal for applications where space and reliability are critical, offering an efficient solution for controlling directional flow in hydraulic circuits.
Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

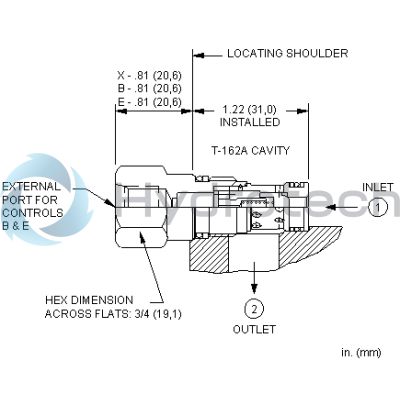

| Cavity | T-162A |
| Series | 0 |
| Capacity | 10 gpm40 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
