SUN HYDRAULICS
CXBAXZV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

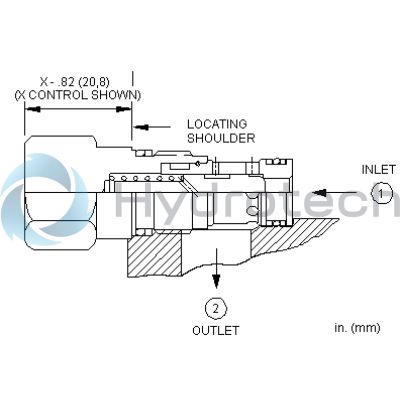

The Sun Hydraulics CXBAXZV (CXBAXZV) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model allows free flow from inlet port 1 to outlet port 2 while blocking reverse flow, ensuring efficient operation in various hydraulic systems. The CXBAXZV features a T-162A cavity and belongs to the Series 0, tailored for compact system integration with a maximum capacity of 10 gpm (40 L/min). It can withstand pressures up to 5000 psi (350 bar), making it suitable for high-pressure environments. With its advanced design, the CXBAXZV offers exceptionally low leakage rates, less than one drop per minute (0.07 cc/min), contributing to system efficiency and reducing fluid loss. The valve is equipped with EPDM seals specifically for use with phosphate ester fluids; however, these seals must not be exposed to petroleum-based fluids as they can cause damage. Furthermore, the valve incorporates Sun's floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. This check valve is direct acting, providing quick response times and robust performance in preventing overpressure situations. Its compact size (.20 lb/0.10 kg) and specific installation requirements (torque between 20 - 25 lbf.ft/27 - 33 Nm) make it easy to install and maintain within various hydraulic setups. The CXBAXZV is an essential component for systems where unidirectional flow and leakage control are critical for operational success and efficiency.
