SUN HYDRAULICS
CXBAXAV/AP

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

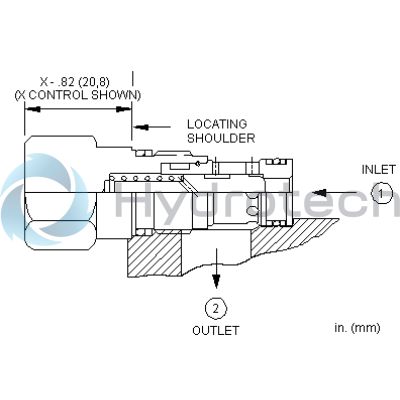

The Sun Hydraulics CXBAXAV/AP (CXBAXAV/AP) is a high-performance, two-port check valve that ensures efficient fluid control in hydraulic systems. This model allows free flow from the inlet port 1 to the outlet port 2 while blocking flow in the reverse direction, making it ideal for applications requiring unidirectional flow. The valve is designed to fit a T-16A cavity and is part of the Series 0 collection, offering a capacity of up to 10 gpm (40 L/min). It can withstand a maximum operating pressure of 5000 psi (350 bar), which suits it for high-pressure environments. The CXBAXAV/AP demonstrates exceptional sealing capabilities, with EPDM seals that are specifically chosen for compatibility with phosphate ester fluids; however, these seals must not be exposed to petroleum-based fluids as they can cause damage. The valve features Sun Hydraulics' floating style construction which reduces the risk of internal parts binding due to over-torquing or machining variations during installation. This design detail enhances the valve\u2019s reliability and longevity in demanding operational conditions. Key specifications include a maximum leakage rate of less than one drop per minute (0.07 cc/min), ensuring minimal fluid loss and efficient operation. The valve has a hex size of 3/4 inch (19.1 mm) and requires an installation torque between 20 - 25 lbf.ft (27 - 33 Nm). Weighing just 0.20 lb (0.10 kg), this model is lightweight yet robust enough to handle rigorous industrial applications without compromising performance.
