SUN HYDRAULICS
SHUTTLE VALVE
CSZNXXN

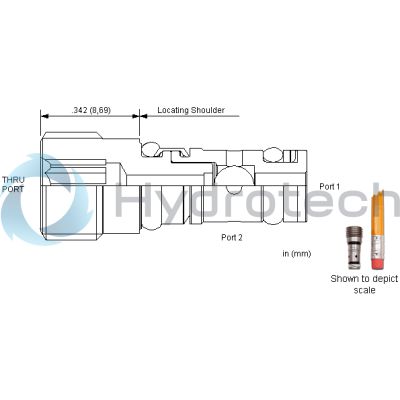

The single ball shuttle connects the higher of two work ports to the signal or common port. The signal is sensed at port 2.

• This valve is what we call an Insert style. It is meant to be buried in a manifold or actuator. The cavity drawing for the T-382A cavity contains a lot of detailed information and should be studied closely when applying this valve.
• Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
• The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
• Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
