SUN HYDRAULICS
CSADXXN/LH
$48.10 USD
Tags:
- SUN HYDRAULICS
- Material:CSADXXN/LH
- Model:CSAD-XXN/LH
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSADXXN/LH (CSADXXN/LH) is a high-performance shuttle valve designed for hydraulic systems requiring reliable pressure signal management between two work ports. This model is particularly noted for its single ball shuttle mechanism, which effectively connects the higher pressure of two ports to a common or signal port, with the pressure signal sensed at port 2. The valve features a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of 2.5 gpm (10 L/min), making it suitable for various demanding applications. Constructed with hardened steel balls and seats, the CSADXXN/LH exhibits excellent wear characteristics and can tolerate high levels of contamination. This durability is enhanced by Sun Hydraulics' floating style construction which minimizes internal binding that might result from excessive installation torque or variations in cavity/cartridge machining. The valve\u2019s design allows for the decay of the pressure signal when both load ports drop to lower pressures, ensuring stable system performance. Seals made from EPDM are used in this model, making it suitable specifically for systems utilizing phosphate ester fluids; however, these seals must not be exposed to petroleum-based fluids as they could be damaged. The valve's specifications also include a hex size of 7/8 in. (22.2 mm) and an installation torque range of 30-35 lbf-ft (41-47 Nm). Weighing just 0.20 lb (0.10 kg), the CSADXXN/LH maintains a compact and efficient profile suitable for various integrated hydraulic systems without adding significant weight or bulk.
The Sun Hydraulics CSADXXN/LH (CSADXXN/LH) is a high-performance shuttle valve designed for hydraulic systems requiring reliable pressure signal management between two work ports. This model is particularly noted for its single ball shuttle mechanism, which effectively connects the higher pressure of two ports to a common or signal port, with the pressure signal sensed at port 2. The valve features a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of 2.5 gpm (10 L/min), making it suitable for various demanding applications. Constructed with hardened steel balls and seats, the CSADXXN/LH exhibits excellent wear characteristics and can tolerate high levels of contamination. This durability is enhanced by Sun Hydraulics' floating style construction which minimizes internal binding that might result from excessive installation torque or variations in cavity/cartridge machining. The valve\u2019s design allows for the decay of the pressure signal when both load ports drop to lower pressures, ensuring stable system performance. Seals made from EPDM are used in this model, making it suitable specifically for systems utilizing phosphate ester fluids; however, these seals must not be exposed to petroleum-based fluids as they could be damaged. The valve's specifications also include a hex size of 7/8 in. (22.2 mm) and an installation torque range of 30-35 lbf-ft (41-47 Nm). Weighing just 0.20 lb (0.10 kg), the CSADXXN/LH maintains a compact and efficient profile suitable for various integrated hydraulic systems without adding significant weight or bulk.

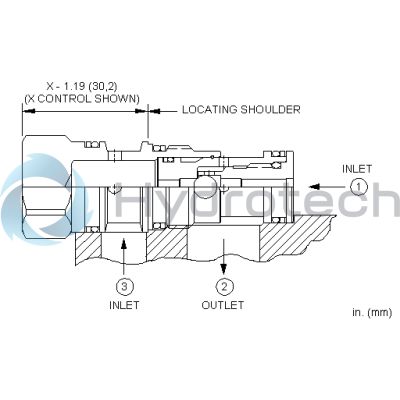

The single ball shuttle connects the higher of two work ports to the signal or common port. The signal is sensed at port 2.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 2.5 gpm10 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
