SUN HYDRAULICS
CSABBXN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

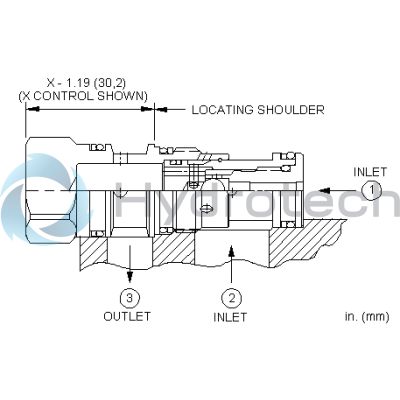

The Sun Hydraulics CSABBXN (CSABBXN) is a high-performance shuttle valve designed for hydraulic systems requiring reliable load sensing and signal decay capabilities. This model is particularly distinguished by its single ball shuttle mechanism that connects the higher of two work ports to the signal or common port, with the signal being sensed at port 3. The valve features hardened steel balls and seats which enhance wear characteristics and provide significant contamination tolerance. The CSABBXN operates efficiently with a maximum capacity of 2.5 gpm (10 L/min) and can withstand up to 5000 psi (350 bar), making it suitable for high-pressure applications. It is designed to minimize leakage, allowing no more than 5 drops/min (0.3 cc/min), ensuring system efficiency and reliability. This model is equipped with EPDM seals specifically for use with phosphate ester fluids; however, exposure to petroleum-based fluids should be avoided as it could damage the seals. Engineered with Sun\u2019s floating style construction, the CSABBXN reduces risks associated with internal parts binding which can occur due to excessive installation torque or variations in cavity/cartridge machining. It requires an installation torque of 30-35 lbf ft (41-47 Nm) and has a compact design, weighing just 0.20 lb (0.10 kg). The valve also features a hex size of 7/8 in (22.2 mm), facilitating easier installation. Ideal for systems where precise fluid control is necessary, this shuttle valve ensures efficient operation across various hydraulic applications by effectively managing pressure signals between load ports.
