SUN HYDRAULICS
CNFCXFN/AP
$157.90 USD
Tags:
- SUN HYDRAULICS
- Material:CNFCXFN/AP
- Model:CNFC-XFN/AP
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNFCXFN/AP (CNFCXFN/AP) is a robust cartridge valve designed for hydraulic systems requiring reliable check valve functionality with a customer-specified bypass orifice. This model facilitates free flow from port 1 to port 2 while restricting flow in the reverse direction, from port 2 to port 1, which is controlled by the specified orifice size ranging from 0.4 to 3.2 mm (0.016 to 0.127 inches). The orifice diameter selected by the customer is conveniently stamped on one of the hex faces of the cartridge for easy identification. Constructed to withstand pressures up to 5000 psi (350 bar) at both ports, this valve is suitable for high-pressure applications and can handle flow capacities up to 30 gpm (120 L/min). It features Sun's floating style construction which minimizes internal part binding and potential malfunctions caused by excessive installation torque or variations in cavity/cartridge machining. This model uses a T5A cavity and belongs to the Series 2 line of Sun Hydraulics\u2019 valves. It also includes corrosion-resistant options, indicated by suffixes AP or LH in the model code, making it ideal for use in corrosive environments. The valve installation requires a torque of between 45 and 50 lbf ft (61 - 68 Nm), ensuring a secure fit within hydraulic systems while maintaining operational integrity and safety. Overall, the CNFCXFN/AP offers precise fluid control with customizable restrictions in challenging industrial settings, enhancing system efficiency and reliability through its specialized design and construction features.
The Sun Hydraulics CNFCXFN/AP (CNFCXFN/AP) is a robust cartridge valve designed for hydraulic systems requiring reliable check valve functionality with a customer-specified bypass orifice. This model facilitates free flow from port 1 to port 2 while restricting flow in the reverse direction, from port 2 to port 1, which is controlled by the specified orifice size ranging from 0.4 to 3.2 mm (0.016 to 0.127 inches). The orifice diameter selected by the customer is conveniently stamped on one of the hex faces of the cartridge for easy identification. Constructed to withstand pressures up to 5000 psi (350 bar) at both ports, this valve is suitable for high-pressure applications and can handle flow capacities up to 30 gpm (120 L/min). It features Sun's floating style construction which minimizes internal part binding and potential malfunctions caused by excessive installation torque or variations in cavity/cartridge machining. This model uses a T5A cavity and belongs to the Series 2 line of Sun Hydraulics\u2019 valves. It also includes corrosion-resistant options, indicated by suffixes AP or LH in the model code, making it ideal for use in corrosive environments. The valve installation requires a torque of between 45 and 50 lbf ft (61 - 68 Nm), ensuring a secure fit within hydraulic systems while maintaining operational integrity and safety. Overall, the CNFCXFN/AP offers precise fluid control with customizable restrictions in challenging industrial settings, enhancing system efficiency and reliability through its specialized design and construction features.

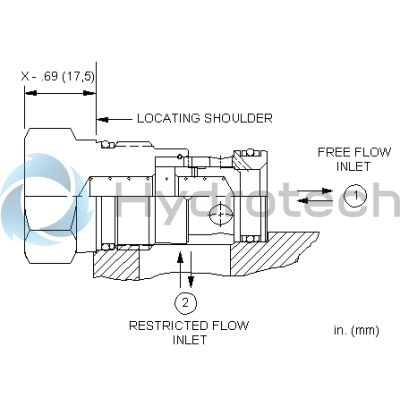

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-5A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .127 in.0,4 - 3,2 mm |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-203-006 |
