SUN HYDRAULICS
CNDCXDN/AP
$154.50 USD
Tags:
- SUN HYDRAULICS
- Material:CNDCXDN/AP
- Model:CNDC-XDN/AP
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNDCXDN/AP (CNDCXDN/AP) is a highly specialized hydraulic check valve designed for efficient flow control in hydraulic systems. This valve features a unique freeflow, nose-to-side configuration that allows unimpeded flow from port 1 to port 2 while incorporating a customer-specified orifice to restrict flow in the reverse direction, from port 2 to port 1. The specific orifice dimensions range from 0.4 mm to 2.7 mm, catering to diverse hydraulic system requirements and ensuring precise fluid control. Rated for a maximum operating pressure of up to 5000 psi (350 bar) and with a flow capacity of up to 15 gpm (60 L/min), the CNDCXDN/AP is built to handle demanding applications. The valve's construction includes Sun's floating style design which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This model is particularly suited for corrosive environments, indicated by its AP model code suffix, highlighting its use of corrosion-resistant materials. For ease of installation and maintenance, the cartridge's hex size is standardized at 7/8 inches (22.2 mm), and it requires an installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm). Additionally, each valve comes with Viton seals as part of the seal kit/cartridge package to ensure durable sealing performance under various operational conditions. Overall, the Sun Hydraulics CNDCXDN/AP check valve combines robust construction with precision engineering, making it an ideal choice for controlling fluid flow in complex hydraulic systems while ensuring reliability and durability in harsh working environments.
The Sun Hydraulics CNDCXDN/AP (CNDCXDN/AP) is a highly specialized hydraulic check valve designed for efficient flow control in hydraulic systems. This valve features a unique freeflow, nose-to-side configuration that allows unimpeded flow from port 1 to port 2 while incorporating a customer-specified orifice to restrict flow in the reverse direction, from port 2 to port 1. The specific orifice dimensions range from 0.4 mm to 2.7 mm, catering to diverse hydraulic system requirements and ensuring precise fluid control. Rated for a maximum operating pressure of up to 5000 psi (350 bar) and with a flow capacity of up to 15 gpm (60 L/min), the CNDCXDN/AP is built to handle demanding applications. The valve's construction includes Sun's floating style design which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This model is particularly suited for corrosive environments, indicated by its AP model code suffix, highlighting its use of corrosion-resistant materials. For ease of installation and maintenance, the cartridge's hex size is standardized at 7/8 inches (22.2 mm), and it requires an installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm). Additionally, each valve comes with Viton seals as part of the seal kit/cartridge package to ensure durable sealing performance under various operational conditions. Overall, the Sun Hydraulics CNDCXDN/AP check valve combines robust construction with precision engineering, making it an ideal choice for controlling fluid flow in complex hydraulic systems while ensuring reliability and durability in harsh working environments.

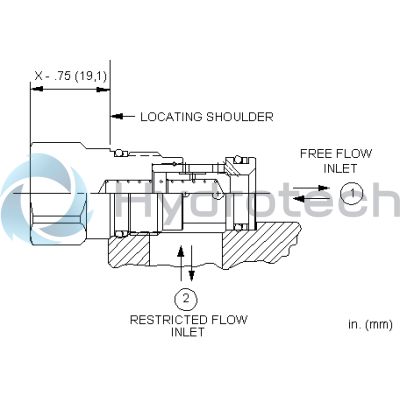

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .107 in.0,4 - 2,7 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-010-006 |
