The Sun Hydraulics CNBCXCV (CNBCXCV) is a versatile hydraulic check valve designed for high-pressure applications, capable of handling up to 5000 psi (350 bar) at both ports 1 and 2. This model features a free flow from port 1 to port 2, while flow from port 2 to port 1 is controlled by a customer-specified orifice, which can range from .016 to .062 inches (0.4 to 1.6 mm). The specified orifice diameter is conveniently stamped on one of the cartridge\u2019s hex faces for easy identification. This two-port check valve fits in a T162A cavity and is part of the Series 0 collection, with a maximum flow capacity of 7.5 gpm (30 L/min). It incorporates Sun's floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design feature ensures reliable operation and longevity of the valve under varying conditions. The CNBCXCV model weighs approximately .20 lb (0.10 kg) and requires an installation torque between 20 and 25 lbf ft (27 - 33 Nm). The valve hex size is measured at .75 inches (19.1 mm), making it compatible with standard tools for installation and maintenance. A Viton seal kit is available for this model under the part number: 990162006, ensuring leak-proof performance even under high pressure. This check valve is ideal for applications requiring precise flow control and where space and reliability are critical considerations.
The Sun Hydraulics CNBCXCV (CNBCXCV) is a versatile hydraulic check valve designed for high-pressure applications, capable of handling up to 5000 psi (350 bar) at both ports 1 and 2. This model features a free flow from port 1 to port 2, while flow from port 2 to port 1 is controlled by a customer-specified orifice, which can range from .016 to .062 inches (0.4 to 1.6 mm). The specified orifice diameter is conveniently stamped on one of the cartridge\u2019s hex faces for easy identification. This two-port check valve fits in a T162A cavity and is part of the Series 0 collection, with a maximum flow capacity of 7.5 gpm (30 L/min). It incorporates Sun's floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design feature ensures reliable operation and longevity of the valve under varying conditions. The CNBCXCV model weighs approximately .20 lb (0.10 kg) and requires an installation torque between 20 and 25 lbf ft (27 - 33 Nm). The valve hex size is measured at .75 inches (19.1 mm), making it compatible with standard tools for installation and maintenance. A Viton seal kit is available for this model under the part number: 990162006, ensuring leak-proof performance even under high pressure. This check valve is ideal for applications requiring precise flow control and where space and reliability are critical considerations.

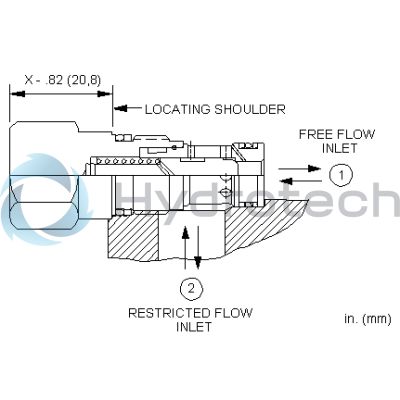

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .062 in.0,4 - 1,6 mm |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
