SUN HYDRAULICS
CNBCXAN
$33.30 USD
Tags:
- SUN HYDRAULICS
- Material:CNBCXAN
- Model:CNBC-XAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNBCXAN (CNBCXAN) is a meticulously engineered check valve designed for hydraulic systems requiring reliable, directional flow control. It features a two-port configuration within the T-16A cavity series and offers a free flow from port 1 to port 2, while incorporating a customer-specified orifice to restrict flow in the reverse direction from port 2 to port 1. The specified orifice diameter, crucial for controlling flow rates, is conveniently stamped on one of the cartridge's hex faces for easy identification. This model is built to withstand a maximum operating pressure of up to 5000 psi (350 bar) at both ports, making it suitable for high-pressure applications. It can handle a capacity of up to 7.5 gpm (30 L/min), with an orifice range between .016 and .062 inches (0.4 to 1.6 mm), which allows for precise control over fluid flow in various hydraulic setups. The CNBCXAN benefits from Sun Hydraulics' floating style construction which minimizes potential internal binding caused by excessive installation torque or variations in cavity/cartridge machining\u2014ensuring consistent performance and longevity. The valve's installation requires a torque of between 20 and 25 lbf ft (27 - 33 Nm), and it has a compact model weight of just .20 lb (0.10 kg). For maintenance and repairs, Viton seal kits are available under part number 990162006. Designed with versatility in mind, this valve is an ideal choice for applications where precise fluid control is necessary, enhanced by its robust construction tailored for demanding environments where reliability is paramount.
The Sun Hydraulics CNBCXAN (CNBCXAN) is a meticulously engineered check valve designed for hydraulic systems requiring reliable, directional flow control. It features a two-port configuration within the T-16A cavity series and offers a free flow from port 1 to port 2, while incorporating a customer-specified orifice to restrict flow in the reverse direction from port 2 to port 1. The specified orifice diameter, crucial for controlling flow rates, is conveniently stamped on one of the cartridge's hex faces for easy identification. This model is built to withstand a maximum operating pressure of up to 5000 psi (350 bar) at both ports, making it suitable for high-pressure applications. It can handle a capacity of up to 7.5 gpm (30 L/min), with an orifice range between .016 and .062 inches (0.4 to 1.6 mm), which allows for precise control over fluid flow in various hydraulic setups. The CNBCXAN benefits from Sun Hydraulics' floating style construction which minimizes potential internal binding caused by excessive installation torque or variations in cavity/cartridge machining\u2014ensuring consistent performance and longevity. The valve's installation requires a torque of between 20 and 25 lbf ft (27 - 33 Nm), and it has a compact model weight of just .20 lb (0.10 kg). For maintenance and repairs, Viton seal kits are available under part number 990162006. Designed with versatility in mind, this valve is an ideal choice for applications where precise fluid control is necessary, enhanced by its robust construction tailored for demanding environments where reliability is paramount.

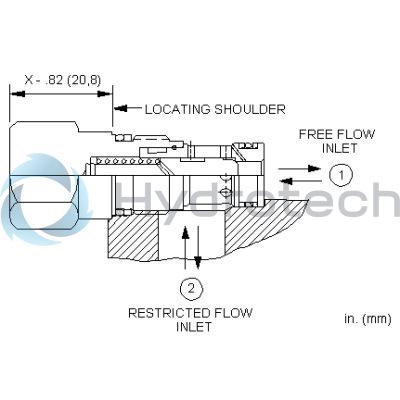

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .062 in.0,4 - 1,6 mm |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
Show FAQ
