HYDAC
921048
$1,015.99 USD
- HYDAC
- Material:921048
- Model:HY-TTC50CD-082K-768K0000-000
- Summary:HY-TTC 50-CD-082K-768K-0000-000
Quantity in stock: 0

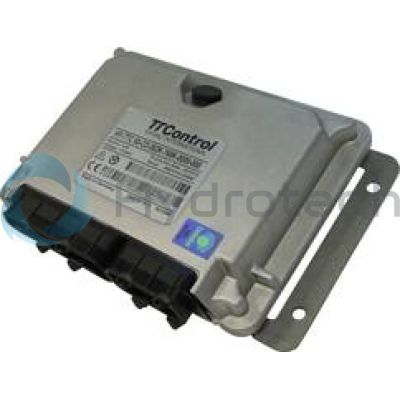

Universal mobile control HY-TTC 50
The HY-TTC 50 is the basic model in the 16-bit controller family. It is a powerful device which can be used both as a stand-alone solution and as a part of a networked system in modern machines.
It meets all the technical requirements of modern automotive electronics in the off-highway sector. Two CAN interfaces, an RS232 interface and a LIN interface are available for serial communication. The HY-TTC 50 is part of a complete and compatible product family and is protected by an extremely compact, robust housing specially designed for the off-highway vehicle industry.
It meets all the technical requirements of modern automotive electronics in the off-highway sector. Two CAN interfaces, an RS232 interface and a LIN interface are available for serial communication. The HY-TTC 50 is part of a complete and compatible product family and is protected by an extremely compact, robust housing specially designed for the off-highway vehicle industry.
- Programming in CoDeSys® 2.3 or C/C++
- 82 kB RAM
- 40 inputs and outputs, including
- 16 power outputs
- 4 current measuring inputs
- 8 analogue inputs - All inputs and outputs are configurable and are protected against overvoltage and short circuits
- Stabilized, adjustable sensor voltage supply with internal monitoring
- No reset caused by dip in voltage when engine is started
- Robust aluminium die cast housing with a waterproof 80-pole connection plug and pressure equalization via a waterproof Gore-Tex® membrane
