HYDAC
3054472
$51.44
- HYDAC
- Material:3054472
- Model:SD10-01-C-N-H
- Summary:SD10-01-C-N-H
Quantity in stock: 3

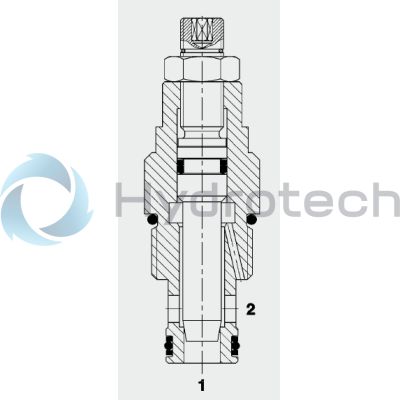

The needle valve SD10 is a cartridge valve for influencing the flow rate by means of a throttle spindle. When the turning knob is screwed out, the flow rate is increased - depending on viscosity and pressure. Throttle and shut-off function in both directions. Cavity UNF 7/8-14. Qmax = 160 l/min Pmax = 420 bar
