HYDAC
3023268

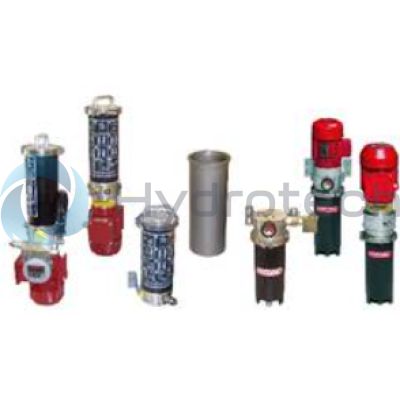

The compact and stationary fluid conditioning units of the OLF 5 are used for the fine filtration of hydraulic and lubrication oils in bypass flow. Versions without motor-pump unit are also available. The Toploader version is distinguished by the "upward" dismantling of elements (tool-free element replacement). The Dimicron elements used exhibit the following properties:

• Particularly high contamination retention capacity

• Environment-friendly disposal (ash-ability) and

• Water retention (optional: Aquamicron)


The OLF 5 is used on machine tools, plastic injection machines, mobile devices and in wind power.

• Flow rate Hydraulic Line: max. 15 l/min

• Flow rate Lubrication Line: max. 4 l/min

• Operating pressure Hydraulic Line: max. 4.5 bar

• Operating pressure Lubrication Line: max. 3.5 bar

• Improvement of component and filter service life

• Greater machine availability

• Longer oil change intervals

• Lower space requirements through compact construction

• High service-friendliness

• High contamination retention capacity of the elements

• Environment-friendly element disposal through ash-ability
