HENGST
1020889B

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hengst directly.***

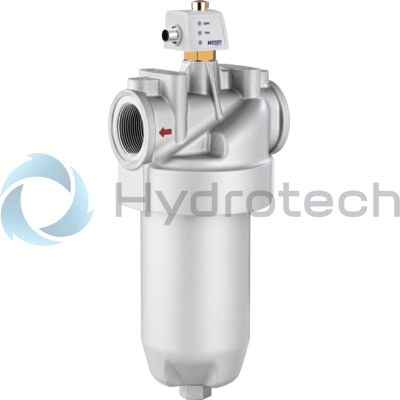

The Hengst 110LEN0250-2X/PWR6A00-V2,2-M-R6 (1020889B) is a high-performance hydraulic-inline filter designed for efficient filtration of solids from fluids in hydraulic systems and lubricating oil systems. This inline filter is intended for installation in pipelines, providing a reliable solution for maintaining fluid cleanliness. It features a robust design with an aluminum housing and utilizes a multilayer glass fiber material (PWR) as its filter media, ensuring effective filtration with a nominal filtration grade of 6 microns. The filter's construction includes standard support cage material and NBR seals, offering durability and compatibility with various fluids. The Hengst 110LEN0250-2X/PWR6A00-V2,2-M-R6 is engineered to withstand challenging conditions with a maximum working pressure of 110 bar and a collapse pressure rating of 30 bar. It is equipped with an optical indicator for monitoring the filter condition, and its bypass cracking pressure is set at 3.5 bar, ensuring system protection by allowing fluid flow even when the filter element reaches its dirt holding capacity. The port configuration includes G1 1/2 ports positioned horizontally according to ISO228-1 standards. This inline filter supports easy top mounting and does not include additional features such as a check valve or lid lifting device, which simplifies maintenance operations. Its suitability for HFC/HFA fluids and compliance with DIN24550 standards highlight its versatility in various applications where reliable fluid filtration is critical. The Hengst 110LEN0250-2X/PWR6A00-V2,2-M-R6 offers exceptional performance and reliability for maintaining optimal system operation in demanding environments.
