HENGST
1009180B

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hengst directly.***

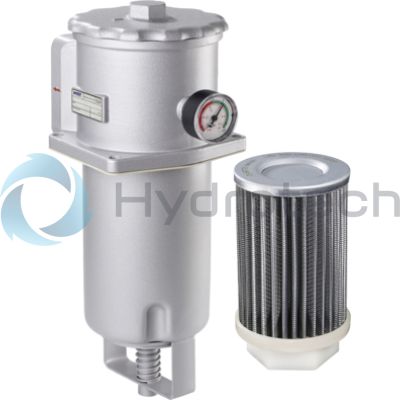

The Hengst SE 225 G130-S00-010-00M00 (1009180B) is a hydraulic-suction filter designed for lateral tank mounting below the oil level. This suction filter is specifically engineered to provide direct wear protection for pumps by filtering out contaminants in the suction line. It features a stainless steel wire mesh filter media with a filtration grade of 130, ensuring efficient filtration performance. The filter's housing is made from carbon steel and aluminum, offering durability and resistance to various environmental conditions. The SE 225 model includes a zinc-plated support cage material and an NBR seal designation, which enhances its reliability and longevity in demanding applications. With a nominal size of 225, this suction filter has a standard collapse pressure rating and does not include an indicator or cyclone effect feature. The port designation is G2 1/2 with a horizontal port position compliant with ISO228-1 standards, making it suitable for specific hydraulic systems requiring such configurations. Additionally, the bypass valve code is set at 1 with a bypass cracking pressure of 0.3, providing an added layer of protection against potential blockages or overpressure situations within the system. This product does not accommodate HFC/HFA suitability nor complies with DIN24550 standards, indicating its specialized use in certain hydraulic applications rather than universal applicability across all fluid types or systems.
