HENGST
1008932B
$2,494.63 USD
Tags:
- HENGST
- Material:1008932B
- Model:R928037913
- Summary:Hydraulic-Filter Element
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hengst directly.***

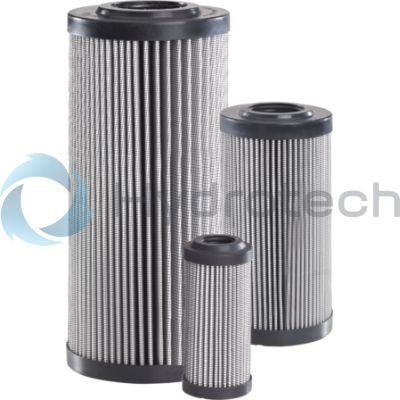

The Hengst 20.500 G10-S00-6-M (1008932B) is a high-performance hydraulic filter element designed to optimize filtration in various hydraulic systems. It features a stainless steel wire mesh filter media, which ensures robust filtration with excellent retention and dirt holding capacities. With dimensions of 250 mm in length, 142.5 mm in outer diameter, and 95 mm in inner diameter, this filter element is crafted to fit seamlessly into compatible systems. The design includes a bypass valve coded at 6 and a standard collapse pressure rating, making it suitable for specific operational parameters without the risk of structural failure under pressure fluctuations. The filter element's construction incorporates an NBR seal (seal code M), ensuring reliable sealing under various conditions, while its nominal size of 500 indicates its capacity to handle substantial fluid volumes efficiently. Although not suitable for HFC/HFA fluids or compliant with DIN24550 standards, this product's focus on durability and performance makes it ideal for applications requiring resilient filtration solutions. A standout feature of the Hengst 20.500 G10-S00-6-M is its ability to maintain low pressure loss while maximizing dirt retention capabilities, thanks to the carefully selected filter media configuration coded as G10. This configuration is instrumental in extending the service life of hydraulic systems by preventing contaminants from circulating through sensitive components. This model does not include a support cage but still maintains structural integrity due to its robust design class as a standard filter element. Its bypass cracking pressure is rated at 3 bar, providing additional protection against excessive pressure build-up within the system. Overall, this hydraulic-filter element is engineered for efficiency and reliability in demanding environments where precision filtration is paramount.
The Hengst 20.500 G10-S00-6-M (1008932B) is a high-performance hydraulic filter element designed to optimize filtration in various hydraulic systems. It features a stainless steel wire mesh filter media, which ensures robust filtration with excellent retention and dirt holding capacities. With dimensions of 250 mm in length, 142.5 mm in outer diameter, and 95 mm in inner diameter, this filter element is crafted to fit seamlessly into compatible systems. The design includes a bypass valve coded at 6 and a standard collapse pressure rating, making it suitable for specific operational parameters without the risk of structural failure under pressure fluctuations. The filter element's construction incorporates an NBR seal (seal code M), ensuring reliable sealing under various conditions, while its nominal size of 500 indicates its capacity to handle substantial fluid volumes efficiently. Although not suitable for HFC/HFA fluids or compliant with DIN24550 standards, this product's focus on durability and performance makes it ideal for applications requiring resilient filtration solutions. A standout feature of the Hengst 20.500 G10-S00-6-M is its ability to maintain low pressure loss while maximizing dirt retention capabilities, thanks to the carefully selected filter media configuration coded as G10. This configuration is instrumental in extending the service life of hydraulic systems by preventing contaminants from circulating through sensitive components. This model does not include a support cage but still maintains structural integrity due to its robust design class as a standard filter element. Its bypass cracking pressure is rated at 3 bar, providing additional protection against excessive pressure build-up within the system. Overall, this hydraulic-filter element is engineered for efficiency and reliability in demanding environments where precision filtration is paramount.
The Filter Element is the central component in a filter, where the actual filtration takes place. The key filter parameters such as retention capacity, dirt holding capacity and pressure loss are determined by the Filter Element and the filter media used.
