BOSCH REXROTH
R912007182

$980.59

BOSCH REXROTH
Material:R912007182

Quantity in stock: 0

Assessoires Frequency Converter FEAE

Unpacked Weight: 3.1 kg

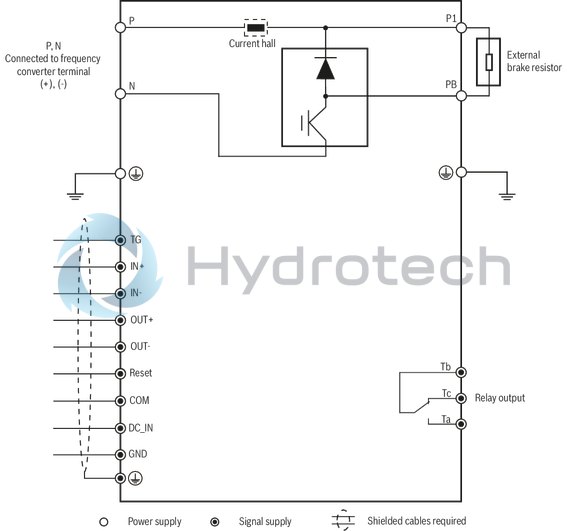

External brake choppers are used together with an external brake resistor to increase the braking power of frequency converters that do not have an integrated brake chopper.

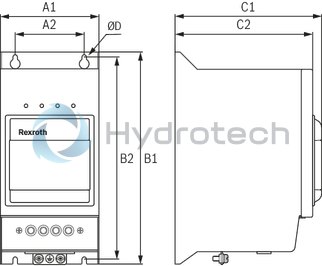

3D CAD

Type code extension	FEAE07.1-EA2-NNNN
Productgroup ID	4,6
Communication protocol	Not defined
EPLAN	https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.FEAE07.1-EA2-NNNN**&downloads=true
Weight	3.1

Type code

01	02		03		04		05
FEAE	07	.		-		-	NNNN

01	Brake chopper FEAE07.1						FEAE
Variant
02	Brake chopper						07
Variant
03	1						1
Version
04	VFC 30 ... 55 kW						VA1
	VFC 75, 90 kW						VA2
	EFC 30 ... 55 kW						EA1
	EFC 75, 90 kW						EA2
Other version
05	None						NNNN

Performance data

Type	Mains connection voltage	Tolerance of the mains connection voltage	Mains frequency	Tolerance of the mains frequency
	3-phase		Mains frequency
	Unetz		fnetz
	V AC	%	Hz	%
FEAE07.1-EA1-NNNN	380 ... 480	-15 ... +10	50 ... 60	± 5
FEAE07.1-EA2-NNNN	380 ... 480	-15 ... +10	50 ... 60	± 5

Brake chopper/resistor

Type			FEAE07.1-EA1-NNNN	FEAE07.1-EA2-NNNN
Input and output specification	Output current		0 ... 80 A	0 ... 125 A
	Brake chopper start voltage		600 ... 785 V
	Maximum hysteresis		0 ... 100 V
Voltage supply	DC bus voltage range		600 ... 810 V DC
Guarantee	Heat sink overheating		Activated when temperature exceeds the set value
	Error output		Relays 0.6 A, 125 V AC/2 A, 30 V DC (Ta, Tb default NC contact)
	Further safeguards		Overvoltage protection Overheating protection Overcurrent protection Short-circuit protection
Operating time OT		%	10
Maximum duty cycle			0 ... 10 s

Functions

Type		FEAE07.1-EA1-NNNN, FEAE07.1-EA2-NNNN
Number of digital inputs	24 V DC (of which 1x pulse train 50 kHz)	5
Number of digital outputs	24 V DC/50 mA (pulse train 32 kHz)	2
Number of relay outputs	230 V AC/30 V DC/3 A	1
Status messages via digital outputs		Power Error Master/Slave Brakes
