BOSCH REXROTH
R911370704
$4,657.65
- BOSCH REXROTH
- Material:R911370704
- Model:XM2100.01-01-31-31-301-NN-101NNNN
Quantity in stock: 2
XM21 control
The compact XM control platform is available for a variety of Motion Logic applications. The local connection of the S20 I/O modules extends the control flexibly for high-performance process connection. Decentralized I/O stations can be easily integrated via a number of fieldbus couplers. Optional extension modules open up further functions. The robust design simplifies handling and allows for a wide range of applications.
Unpacked Weight: 0.616 kg
The XM control platform is available for a variety of Motion Logic applications. The local connection of the modules from the new I/O family S20 expands the control flexibly for high-performance process connection. Decentralized I/Os, drives and other system peripherals come connected standard via Sercos. Optional extension modules open up further integration options. The service-friendly design is an easy way to reduce installation and commissioning costs.
| 2D CAD | Download 2D CAD |
| 3D CAD | Download 3D CAD |
| Memory | 512 MB |
| Protection class | III |
| Remanent Memory | 128 kB |
| Maximum operating altitude | 4700 |
| Width | 100 |
| Productgroup ID | 4,6 |
| Communication option | With expansion module (Profinet master or slave, EtherNET IP master or slave) |
| Height | 126.3 |
| communication interface | None |
| International protection code | IP20 |
| Number of axes | 1-20 |
| Type code extension | XM2100.01-01-31-31-301-NN-101NNNN |
| function package | PLC + Motion Standard |
| Power supply voltage | 24 |
| Processor | Intel ATOM E620 600 MHz |
| Mass storage | 1 GB |
| ctrlX configurator | https://www.boschrexroth.com/ctrlx-configurator/ |
| Depth | 74.1 |
| EPLAN | https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.XM2100.01-01-31-31-301-NN-101NNNN**&downloads=true |
| Weight | 0.616 |
| Ambient temperature (during operation) | -25-60 |
| Ambient temperature (storage and transport) | -30-85 |
| Fieldbus system and safety | On-Board (2 x RJ45): Sercos (Master). Alternativ: EtherCAT I/O (Master),On-Board (2 x RJ45): Sercos (Master). Alternativ: EtherCAT I/O (Master);Via extension modules: Sercos (Cross communication), PROFINET RT (Controller/Device) |
| type of interface | Engineering Port (RJ45) 1 x Gbit Ethernet,1 x Slot for SD-Karte 1GB,1 × USB-Host,1 × USB-Device |
General data
|
Type |
XM2100.01-01 | |
|
Ambient temperature (operation) |
°C |
-25 … +60 |
|
Permissible relative humidity (operation) |
5 % ... 95 % acc. to DIN EN 61131-2 | |
|
Protection type |
IP20 | |
|
Weight |
kg |
0.48 |
Memory
|
Type |
XM2100.01-01 | |
|
Application/application |
MB |
512 |
Connection data
|
Type |
XM2100.01-01 | ||
|
Function extension |
Connection of XM extension modules XFE01-1-FB-xx via controller bus base module XA-BS02 (included in scope of delivery) | ||
|
I/O extension |
Connection of S20 modules via controller bus base module XA-BS01 or XA-BS02 (included in scope of delivery) | ||
Interfaces
|
Type |
XM2100.01-01 | |
|
Type |
1 x Ethernet (RJ45) (1 GB) 1 x USB host 1 x USB device 1 x slot for SD card |
|
|
Fieldbus system |
Sercos III master/slave PROFINET RT (controller/device); via extension modules EtherNet/IP scanner/adapter; via extension modules PROFIBUS DP (master/slave); via extension modules |
|
Electrical data
|
Type |
XM2100.01-01 | |
|
Supply voltage U |
V DC |
24 |
|
Umin ... Umax |
18 V ... 31.2 V (including all tolerances, including ripple) | |
|
Residual ripple |
% |
± 5 |
Mechanical tests
|
Type |
XM2100.01-01 | |
|
Vibration resistance |
g |
5 |
|
Shock |
g |
30 |
S20 (IP20)
I/O system for the control cabinet
S20 (IP20)
I/O system for the control cabinet
Compact, modular, and simple Space-saving I/O technology for DIN rail mounting Individually combinable modules Innovative assembly and installation conceptCAD Download
I/O system for field installation
S67 (IP67)
I/O system for field installation
S67 (IP67)
Robust and reliable High protection type IP67 for harsh industrial environments Intelligent voltage concept for selective power-off Fast and perfect installation Easy assemblyCAD Download
Extension modules
XFE
Extension modules
XFE
Expansion of connectivity with additional interfaces Expansion of the standard control to the SafeLogic safety controllerOperating instructions
CAD Download

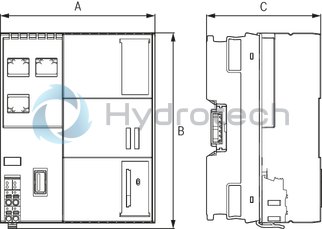

Dimensions
|
Type |
XM2100.01-01 | |
|
A |
mm |
100 |
|
B |
mm |
126.3 |
|
C |
mm |
74.1 |
Norms and Standards
|
Type |
XM2100.01-01 | |
|
Certifications |
CE/UL/CSA | |
