BOSCH REXROTH
R911173753
$4,976.35 USD
- BOSCH REXROTH
- Material:R911173753
- Model:VAM21.1-S3-NF-NN-TB-TA-VD-NN
Quantity in stock: 0
Unpacked Weight: 2.63 kg
| Mechanical strength | 1g vibration / 15g shock |
| Width | 350 |
| Productgroup ID | 4,6 |
| Input voltage | DC 24 V |
| Height | 169 |
| Device assignment | VPP21 |
| International protection code | IP54 |
| Communication | Sercos III |
| Depth | 84.1 |
| Weight | 2.63 |
General data
|
Type |
VAM 21.1 | |
|
Colors |
RAL 7024 graphite gray | |
|
Weight |
kg |
1.9 |
|
Protection type front |
IP54 | |
Operation
|
Type |
VAM 21.1 | |
|
Type |
Machine control panel for standard machine tools - - |
|
|
Function keys |
15 short-stroke keys, 1 emergency off key, 1 feed override rotary switch, 1 spindle override rotary switch, 6 long-travel keys, 1 assembly breakout for switch elements | |
Interfaces
|
Type |
VAM 21.1 | |
|
Fieldbus system |
1 x SERCOS III (2 x RJ45) - - - |
|
Electrical data
|
Type |
VAM 21.1 | |
|
Logic supply UL |
V DC |
24 |
|
A |
≤ 0.5 | |
|
Input supply UM |
V DC |
24 |
|
Output supply UM |
A |
≤ 0.5 |
Mechanical tests
|
Type |
VAM 21.1 | |
|
Vibration resistance |
g |
1 |
|
Shock resistance |
g |
15 |

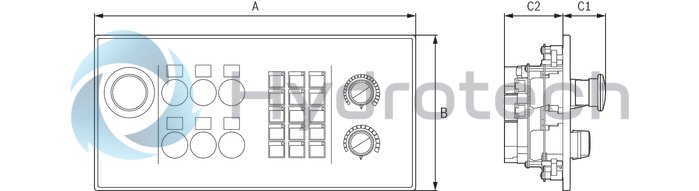

Dimensions
|
Type |
VAM 21.1 | |
|
A |
mm |
350 |
|
B |
mm |
169 |
|
C1 |
mm |
46.5 |
|
C2 |
mm |
63.7 |
Norms and Standards
|
Type |
VAM 21.1 | |
|
Certification |
CE UL CSA |
|
