BOSCH REXROTH
R911173749
$905.97 USD
- BOSCH REXROTH
- Material:R911173749
- Model:S20-DOR-4/2-220-AC
Quantity in stock: 0
The Bosch Rexroth S20-DOR-4/2-220-AC (R911173749) is a state-of-the-art IO module designed to provide efficient and flexible solutions for machine automation. This module boasts a compact and modular design, making it an excellent choice for space-saving top hat rail mounting within control cabinets or field installations. The S20-DOR-4/2-220-AC features four relay Normally Open (NO) contacts, offering independent and floating connections that cater to a variety of actuator types. Its forced ventilated axial fan ensures reliable operation under various conditions. With a nominal current per output of 2A and a total current capacity of 8A across the module, it is well-suited for handling substantial loads. The quick reaction time and ease of handling enhance the module's performance in demanding applications. The robust design and mechanics are complemented by diagnostic and status indicators, which facilitate monitoring and maintenance. Integration into existing systems is seamless thanks to open communication standards, ensuring maximum availability of the IO modules. Users benefit from innovative assembly and installation concepts that reduce setup time significantly. Additionally, the S20-DOR-4/2-220-AC allows for mixed usage with low voltage and extra low voltage modules within the same S station, providing unparalleled versatility. This product is part of Bosch Rexroth's ctrlX AUTOMATION system, which can be configured using the ctrlX configurator tool available online. The product group ID falls under the ctrlX AUTOMATION series, emphasizing its compatibility with a broad range of automated solutions provided by Bosch Rexroth. With all these features packed into a streamlined package, the S20-DOR-4/2-220-AC (R911173749) stands out as an essential component for modern automation tasks requiring reliability, flexibility, and high performance.
Cabinet I/O S20
The modular, compact device design of the I/O systems from Rexroth provides you with maximum flexibility for cost-effective implementation of your custom machine concepts. The I/O modules have a robust design and mechanics, Forced ventilated - Axial fan 230Vre easy to handle, have a fast reaction time and are quick to install – both in the control cabinet as well as in the field. Open communication standards allow you to perfectly integrate the I/O modules with maximum availability.
Unpacked Weight: 0.254 kg
This module is designed for use within an S20 station. It has four relay N/O contacts that are independent from each other and floating. Low voltage and extra low voltage modules can be used directly next to each other in an S20 station.
| Innovative assembly and installation concept |
| Individually combinable modules |
| Space-saving I/O technology for top hat rail mounting |
| Compact, modular and simple |
| 2D CAD | Download 2D CAD |
| 3D CAD | Download 3D CAD |
| Type code extension | S20-DOR-4/2-220-AC |
| Productgroup ID | 4,6 |
| ctrlX configurator | https://www.boschrexroth.com/ctrlx-configurator/ |
| Number of channels | 4 |
| EPLAN | https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.S20-DOR-4%2F2-220-AC**&downloads=true |
| Weight | 0.254 |
General data
|
Type |
S20-DOR-4/2-220-AC | |
|
Color |
Gray | |
|
Weight 1) |
g |
206 |
|
Ambient temperature (operation) |
-25 °C ... +60 °C | |
| -25 °C ... +50 °C | ||
| -25 °C ... +40 °C | ||
|
Ambient temperature (storage/transport) |
-40 °C ... +85 °C | |
|
Permissible relative humidity (operation) |
5 % ... 95 %, no dewing | |
|
Permissible relative humidity (storage/transport) |
5 % ... 95 %, no dewing | |
|
Air pressure (operation) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Air pressure (storage/transport) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Protection type |
IP20 | |
|
Installation position |
Any (pay attention to temperature and power derating) | |
|
Degree of contamination |
2 | |
|
Overvoltage class |
III (EN 61010-2-201/UL 61010-2-201), up to 2000 m above sea level; II (EN 61010-2-201/UL 61010-2-201), up to 3000 m above sea level |
|
| 1) | Including plug and bus base module |
| 2) | Max 6 A/channel for wall mounting on a horizontal support rail; max. 4 A/channel for any installation position |
| 3) | Max 8 A/channel for wall mounting on a horizontal support rail; max. 6 A/channel for any installation position |
| 4) | Max. 8 A/channel in any installation position |
Connection data
|
Type |
S20-DOR-4/2-220-AC | |
|
Designation |
S20 connector | |
|
Connection type |
Push-in technology | |
|
Conductor cross-section solid/flexible/AWG |
0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16 |
|
|
Stripping length |
mm |
8 |
Interface local bus
|
Type |
S20-DOR-4/2-220-AC | |
|
Connection type |
Bus base module | |
|
Transmission speed |
MBit/s |
100 |
Power supply to logic
|
Type |
S20-DOR-4/2-220-AC | |
|
Logic voltage UBus 1) |
V DC |
5 |
|
Maximum current consumption from UBus 2) |
mA |
280 |
|
Maximum power consumption from UBus 2) |
W |
1.4 |
| 1) | Via bus base module |
| 2) | All relays tightened |
Relay output
|
Type |
S20-DOR-4/2-220-AC | ||
|
Number of outputs 1) |
4 | ||
|
Connection type |
Push-in technology | ||
|
Connectivity technology |
2-wire | ||
|
Nominal output voltage |
220 V DC, 230 V AC | ||
|
Output voltage range |
24 V DC ... 220 V DC -20 %/+15 % 24 V AC ... 230 V AC -20 %/+15 % (50/60 Hz) |
||
|
Output current |
Per channel |
A |
≤ 8 |
|
Per module |
A |
32 | |
|
Switch-on current |
Max. 15 A (for 4 s), max. 65 A (for 0.02 s) | ||
|
Contact version |
4 floating N/O contacts | ||
|
Contact material |
AgSnO2 | ||
|
Switching current 2) |
A |
≤ 8 | |
|
Switching capacity 3) |
VA |
≤ 2000 | |
|
Switching capacity acc. to IEC 60947-5-1 |
6 A (120 V (AC-15)) | ||
| 3 A (240 V (AC-15)) | |||
| 0.22 A (125 V (DC-13)) | |||
| 0.1 A (250 V (DC-13)) | |||
|
Switching frequency |
No load |
Hz |
20 |
|
With load |
Hz |
0.1 | |
|
Nominal current consumption 4) |
mW |
212 | |
|
Typical response delay |
ms |
10 | |
|
Typical bouncing time |
ms |
3 | |
|
Typical release time |
ms |
5 | |
|
Service life |
Mechanical |
10*106 switching cycles | |
|
Electrical |
100,000 switching cycles | ||
|
Common potentials |
All contacts floating | ||
| 1) | N/O contacts |
| 2) |
cos phi = 1 DC see load limit curve, e.g. following values: max. 8 A DC (≤30 V, ohmic load) max. 500 mA DC (110 V, ohmic load) max. 250 mA DC (220 V DC, ohmic load) max. 220 mA DC (125 V DC, L/R ≤50 ms, applications with UL approval) max. 110 A DC (250 V DC, L/R ≤50 ms, applications with UL approval) |
| 3) |
DC see load limit curve, e.g. following values: max. 240 W (30 V DC) max. 55 W (≥60 V DC) max. 25 W (125 V DC, 250 V DC, applications with UL approval) |
| 4) | Per relay |
PROFIBUS telegram data
|
Type |
S20-DOR-4/2-220-AC | |
|
Need for parameter data |
byte |
1 |
|
Need for configuration data |
byte |
6 |
Error messages to the higher-level control or computer system
|
Type |
S20-DOR-4/2-220-AC | |
|
Error message |
None | |
Electrical isolation/insulation of the voltage ranges
|
Type |
S20-DOR-4/2-220-AC | |
|
Test distance |
Test voltage | |
|
Relay contact/logic |
4 kV measurement surge voltage (safe separation according to EN 61010-2-201/IEC 61010-2-201) | |
|
Relay contact/logic |
5 kV pulse test voltage according to EN 61850/IEC 61850 | |
|
Contact/function earth |
4 kV measurement surge voltage (safe separation according to EN 61010-2-201/IEC 61010-2-201) | |
|
Contact/function earth |
5 kV pulse test voltage according to EN 61850/IEC 61850 | |
|
Contact/contact (open contact) |
1 kV, 50 Hz, 1 min. | |
|
Contact/contact (adjacent plugs) |
2.5 kV pulse test voltage according to EN 61850/IEC 61850 | |
Mechanical tests
|
Type |
S20-DOR-4/2-220-AC | |
|
Vibration resistance 1) |
g |
5 |
|
Shock 2) |
20 g (contact interruption) / 5 g (contact) | |
|
Continuous shock 2) |
g |
10 |
| 1) | Acc. to EN 60068-2-6/IEC 60068-2-6 |
| 2) | Acc. to EN 60068-2-27/IEC 60068-2-27 |
Conformity
|
Type |
S20-DOR-4/2-220-AC | ||
|
Conforms with |
|||
|
Testing of interference immunity acc. to EN 61000-6-2 |
Discharge of static electricity (ESD) |
Criterion A; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2 | |
|
Electro-magnetic fields |
Criterion A; 20 V/m to 1 GHz, 10 V/m to 3 GHz acc. to EN 61000-4-3/IEC 61000-4-3 | ||
|
Fast transients (burst) |
Criterion A; 4 kV acc. to EN 61000-4-4/IEC 61000-4-4 | ||
|
Transient overvoltage (surge) |
Criterion A; ±4 kV (asymmetric) acc. to EN 61000-4-5/IEC 61000-4-5 | ||
|
Line-fed disturbances |
Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6 | ||
|
Testing of disturbance transmission acc. to EN 61000-6-3 |
Radio disturbance characteristics |
Class B acc. to EN 55022 | |
|
Developed by norm IEC 61850-3 |
Discharge of static electricity (ESD) |
Criterion A; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2 | |
|
Electro-magnetic fields |
Criterion A; 20 V/m to 1 GHz, 10 V/m to 3 GHz acc. to EN 61000-4-3/IEC 61000-4-3 | ||
|
Fast transients (burst) |
Criterion A; 4 kV acc. to EN 61000-4-4/IEC 61000-4-4 | ||
|
Transient overvoltage (surge) |
Criterion A; ±4 kV (asymmetric) acc. to EN 61000-4-5/IEC 61000-4-5 | ||
|
Line-fed disturbances |
Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6 | ||
|
Interference immunity from magnetic fields |
300 A/m permanent, 1000 A/m for 1 s acc. to EN 61000-4-8/IEC 61000-4-8 | ||
|
Interference immunity from damped oscillating magnetic fields |
100 A/m acc. to EN 61000-4-10/IEC 61000-4-10 | ||
|
Interference immunity from conducted, common mode interferences |
30 V permanent, 300 V for 1 s acc. to EN 61000-4-16/IEC 61000-4-16 | ||
|
Damped oscillating shafts |
2.5 kV (asymmetric) acc. to EN 61000-4-18/IEC 61000-4-18 | ||
|
Radio disturbance characteristics |
Class B acc. to EN 55022 | ||
|
Approvals |
|
The current approvals can be found at www.boschrexroth.com. |

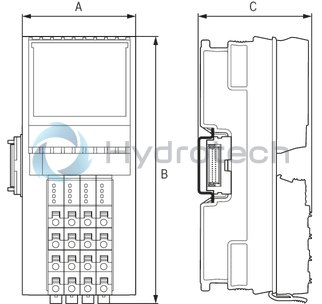

Dimensions
|
Type |
S20-DOR-4/2-220-AC | |
|
A |
mm |
53.6 |
|
B |
mm |
126.1 |
|
C |
mm |
54 |
|
Note on dimensions |
The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715). | |
