The Bosch Rexroth S20-DI-32/1-S (R911173747) is a sophisticated digital input module designed to efficiently acquire and process digital signals within an S station environment. This module stands out due to its modular and compact design, which maximizes flexibility for custom machine concepts while ensuring cost-effectiveness. It is particularly well-suited for installation on a top hat rail, emphasizing space-saving and ease of handling. The S20-DI-32/1-S module features robust mechanics and a forced ventilated axial fan, contributing to its durable build and reliable operation in various conditions. The fast reaction time of this IO module allows for quick signal processing, enhancing the overall performance of the system it integrates with. Installation is streamlined thanks to an innovative assembly concept, making it quick to set up both in control cabinets and in the field. With open communication standards, the S20-DI-32/1-S ensures seamless integration into existing systems with maximum availability. It supports individually combinable modules that can be tailored to specific requirements, showcasing its versatile application capabilities. One of the key features of this IO module is its adjustable filter times for inputs, which bolster interference immunity—a critical factor in maintaining signal integrity. The filter times can be set up to 3 ms, enabling an input frequency of up to 100 kHz, making it possible for users to implement counting functions through these inputs. Furthermore, the S20-DI-32/1-S comes equipped with diagnostic and status indicators that provide real-time feedback on the module's operational state. These indicators are essential for troubleshooting and ensuring consistent performance. The electronic device nameplate also offers easy identification and management within complex systems. In summary, the Bosch Rexroth S20-DI-32/1-S (R911173747) digital input module presents a reliable solution for digital signal acquisition with enhanced flexibility and robustness suited for various applications requiring precise signal processing capabilities.
Cabinet I/O S20
The modular, compact device design of the I/O systems from Rexroth provides you with maximum flexibility for cost-effective implementation of your custom machine concepts. The I/O modules have a robust design and mechanics, Forced ventilated - Axial fan 230Vre easy to handle, have a fast reaction time and are quick to install – both in the control cabinet as well as in the field. Open communication standards allow you to perfectly integrate the I/O modules with maximum availability.
Unpacked Weight: 0.214 kg
This module is designed for use within an S20 station. It is used to acquire digital signals. The filter times for the inputs can be adjusted to increase the interference immunity. Filter times of 100 μs allow the user to applicatively implement a counting function using an input frequency of maximum 5 kHz.
| Innovative assembly and installation concept |
| Individually combinable modules |
| Space-saving I/O technology for top hat rail mounting |
| Compact, modular and simple |
| 2D CAD | Download 2D CAD |
| 3D CAD | Download 3D CAD |
| Type code extension | S20-DI-32/1-S |
| Productgroup ID | 4,6 |
| ctrlX configurator | https://www.boschrexroth.com/ctrlx-configurator/ |
| Number of channels | 32 |
| EPLAN | https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.S20-DI-32%2F1-S**&downloads=true |
| Weight | 0.214 |
General data
|
Type |
S20-DI-32/1-S | |
|
Color |
Gray | |
|
Weight |
g |
167 |
|
Ambient temperature (operation) |
-25 °C ... +60 °C | |
|
Ambient temperature (storage/transport) |
-40 °C ... +85 °C | |
|
Permissible relative humidity (operation) |
5 % ... 95 % acc. to DIN EN 61131-2 | |
|
Permissible relative humidity (storage/transport) |
5 % ... 95 % acc. to DIN EN 61131-2 | |
|
Air pressure (operation) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Air pressure (storage/transport) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Protection type |
IP20 | |
|
Protection class |
III, IEC 61140, EN 61140, VDE 0140-1 | |
Connection data
|
Type |
S20-DI-32/1-S | |
|
Designation |
S20 connector | |
|
Connection type |
Spring-cage connection with direct plug technology | |
|
Conductor cross-section solid/flexible/AWG |
0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16 |
|
|
Stripping length |
mm |
8 |
Interface local bus
|
Type |
S20-DI-32/1-S | |
|
Connection type |
Bus base module | |
|
Transmission speed |
MBit/s |
100 |
Power supply to logic
|
Type |
S20-DI-32/1-S | |
|
Logic voltage UBus 1) |
V DC |
5 |
|
Maximum current consumption from UBus |
mA |
120 |
|
Maximum power consumption from UBus |
mW |
600 |
| 1) | Via bus base module |
Power supply to peripherals
|
Type |
S20-DI-32/1-S | |
|
Feed to digital input modules UI |
V DC |
24 |
|
Maximum permitted voltage range 1) |
19.2 V DC ... 30 V DC | |
|
Current consumption from UI |
mA |
≥ 50 |
|
Typical power consumption from UI |
mW |
960 |
|
Maximum power consumption from UI |
W |
1.2 |
|
Overvoltage/reverse polarity protection supply voltage |
Electronic (35 V, 0.5 s) / parallel diode; with external security 5 A (only for commissioning) | |
|
Guarantee 2) |
A |
≤ 8 |
| 1) | Including all tolerances, including ripple |
| 2) | Reverse polarity protection up to 5 A |
Digital inputs
|
Type |
S20-DI-32/1-S | |
|
Number of digital inputs |
32 | |
|
Connection type |
Direct plug-in technology | |
|
Connectivity technology |
1-wire technology | |
|
Description of the input |
Acc. to EN 61131-2 type 1 and type 3 | |
|
Nominal input voltage |
V DC |
24 |
|
Nominal input current |
mA |
2.4 |
|
Current profile |
Linear up to nominal current, then constant around 2.4 mA | |
|
Input voltage range "0" signal |
-3 V DC ... 5 V DC | |
|
Input voltage range "1" signal |
11 V DC ... 30 V DC | |
|
Input filter time |
3000 μs (default); 1000 μs; < 100 μs | |
|
Reverse polarity protection |
Parallel diode (30 V, 5 s) | |
Error messages to the higher-level control or computer system
|
Type |
S20-DI-32/1-S | |
|
Error message |
Failure in peripheral supply | |
Electrical isolation/insulation of the voltage ranges
|
Type |
S20-DI-32/1-S | |
|
Test distance |
Test voltage | |
|
5 V supply (logic)/24 V supply (peripherals) |
500 V AC, 50 Hz, 1 min. | |
|
5 V supply (logic)/function earth |
500 V AC, 50 Hz, 1 min. | |
|
24 V supply (peripherals)/function earth |
500 V AC, 50 Hz, 1 min. | |
Mechanical tests
|
Type |
S20-DI-32/1-S | |
|
Vibration resistance 1) |
g |
5 |
|
Shock 2) |
25 g, 11 ms duration, semi-sinusoidal shock pulse | |
|
Continuous shock 3) |
g |
10 |
| 1) | Acc. to IEC 60068-2-6 |
| 2) | Acc. to IEC 60068-2-27 |
| 3) | Acc. to EN 60068-2-29 |
Conformity
|
Type |
S20-DI-32/1-S | ||
|
Conforms with |
|||
|
Testing of interference immunity acc. to EN 61000-6-2 |
Discharge of static electricity (ESD) |
Criterion B; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2 | |
|
Electro-magnetic fields |
Criterion A; field strength: 10 V/m acc. to EN 61000-4-3/IEC 61000-4-3 | ||
|
Fast transients (burst) |
Criterion B; 2 kV acc. to EN 61000-4-4/IEC 61000-4-4 | ||
|
Transient overvoltage (surge) |
Criterion B; supply lines DC: ±0.5 kV/±0.5 kV (symmetric/asymmetric) acc. to EN 61000-4-5/IEC 61000-4-5 | ||
|
Line-fed disturbances |
Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6 | ||
|
Testing of disturbance transmission acc. to EN 61000-6-3 |
Radio disturbance characteristics |
Class B acc. to EN 55022 | |
|
Approvals |
|
The current approvals can be found at www.boschrexroth.com. |
|
Approvals |
|
The current approvals can be found at www.boschrexroth.com. |

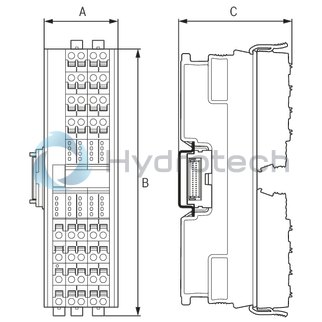

Dimensions
|
Type |
S20-DI-32/1-S | |
|
A |
mm |
35 |
|
B |
mm |
129.9 |
|
C |
mm |
54 |
|
Note on dimensions |
The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715). | |
