BOSCH REXROTH
R911173345
$421.39 USD
- BOSCH REXROTH
- Material:R911173345
- Model:S20-PWR
Quantity in stock: 0
The Bosch Rexroth S20-PWR (R911173345) is a robust and modular IO module designed to offer maximum flexibility and efficiency for custom machine concepts. This device features a compact design, ideal for space-saving top hat rail mounting within control cabinets or field installations. It is characterized by its easy handling, quick installation, rapid reaction times, and forced ventilation through an axial fan. The S20-PWR is compatible with open communication standards, ensuring seamless integration and maximum availability of the IO modules. Its innovative assembly and installation concept allows for individual module combinations, making it highly adaptable to specific application needs. The type code extension SPWR indicates its product group ID within the ctrlX configurator system. This particular model is engineered to be integrated into an S station environment. In instances where the local bus supply logic supply UBus reaches its maximum load capacity on the bus coupler, the S20-PWR can be utilized to regenerate this voltage. It accomplishes this by creating a 24V DC voltage UL from which the new UBus is derived, thereby ensuring continuous operation without loss of performance or functionality. The S20-PWR's construction emphasizes durability with its robust mechanics, ensuring it can withstand demanding industrial environments. Its weight and dimensions are calibrated to support ease of installation while maintaining a strong physical presence in any setup. In summary, the Bosch Rexroth S20-PWR offers a versatile and reliable solution for expanding or maintaining power supply within an automated control system, making it an essential component for efficient machine operation.
Cabinet I/O S20
The modular, compact device design of the I/O systems from Rexroth provides you with maximum flexibility for cost-effective implementation of your custom machine concepts. The I/O modules have a robust design and mechanics, Forced ventilated - Axial fan 230Vre easy to handle, have a fast reaction time and are quick to install – both in the control cabinet as well as in the field. Open communication standards allow you to perfectly integrate the I/O modules with maximum availability.
Unpacked Weight: 0.16 kg
This module is designed for use within an S20 station. If the maximum load on the bus coupler for local bus supply (logic supply UBus) is achieved, then you can use this module to provide this voltage again. To do this, create on the module a 24 V DC voltage (UL), from which the UBus is generated.
| Innovative assembly and installation concept |
| Individually combinable modules |
| Space-saving I/O technology for top hat rail mounting |
| Compact, modular and simple |
| 2D CAD | Download 2D CAD |
| 3D CAD | Download 3D CAD |
| Type code extension | S20-PWR |
| Productgroup ID | 4,6 |
| ctrlX configurator | https://www.boschrexroth.com/ctrlx-configurator/ |
| Number of channels | 1 |
| EPLAN | https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.S20-PWR**&downloads=true |
| Weight | 0.16 |
General data
|
Type |
S20-PWR | |
|
Color |
Gray | |
|
Weight 1) |
g |
107 |
|
Ambient temperature (operation) |
-25 °C ... +60 °C | |
|
Ambient temperature (storage/transport) |
-40 °C ... +85 °C | |
|
Permissible relative humidity (operation) |
5 % ... 95 %, no dewing | |
|
Permissible relative humidity (storage/transport) |
5 % ... 95 %, no dewing | |
|
Air pressure (operation) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Air pressure (storage/transport) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Protection type |
IP20 | |
|
Protection class |
III, IEC 61140, EN 61140, VDE 0140-1 | |
|
Installation position |
Any (no temperature derating) | |
| 1) | Including plug and bus base module |
Connection data
|
Type |
S20-PWR | |
|
Designation |
S20 connector | |
|
Connection type |
Push-in technology | |
|
Conductor cross-section solid/flexible/AWG |
0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16 |
|
|
Stripping length |
mm |
8 |
Interface local bus
|
Type |
S20-PWR | |
|
Connection type |
Bus base module | |
|
Transmission speed |
MBit/s |
100 |
Supply of the bus coupler
|
Type |
S20-PWR | |
|
Supply logic voltage UL |
V DC |
24 |
|
Maximum permitted voltage range 1) |
19.2 V DC ... 30 V DC | |
|
Power supply at UBus |
A |
≤ 4 |
|
Maximum current consumption from UL 2) |
A |
1.2 |
|
Maximum power consumption from UL 3) |
W |
22 |
| 1) | Including all tolerances, including ripple |
| 2) | IBus = 4 A; UL = 19.2 V |
| 3) | IBus = 4 A |
Error messages to the higher-level control or computer system
|
Type |
S20-PWR | |
|
Error message |
None | |
Mechanical tests
|
Type |
S20-PWR | |
|
Vibration resistance 1) |
g |
5 |
|
Shock 2) |
g |
30 |
|
Continuous shock 2) |
g |
10 |
| 1) | Acc. to EN 60068-2-6/IEC 60068-2-6 |
| 2) | Acc. to EN 60068-2-27/IEC 60068-2-27 |
Conformity
|
Type |
S20-PWR | ||
|
Conforms with |
|||
|
Testing of interference immunity acc. to EN 61000-6-2 |
Discharge of static electricity (ESD) |
Criterion B; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2 | |
|
Electro-magnetic fields |
Criterion A; field strength: 10 V/m acc. to EN 61000-4-3/IEC 61000-4-3 | ||
|
Fast transients (burst) |
Criterion B; 2 kV acc. to EN 61000-4-4/IEC 61000-4-4 | ||
|
Transient overvoltage (surge) |
Criterion B; supply lines DC: ±0.5 kV/±0.5 kV (symmetric/asymmetric) acc. to EN 61000-4-5/IEC 61000-4-5 | ||
|
Line-fed disturbances |
Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6 | ||
|
Testing of disturbance transmission acc. to EN 61000-6-3 |
Radio disturbance characteristics |
Class B acc. to EN 55022 | |
|
Approvals |
|
The current approvals can be found at www.boschrexroth.com. |

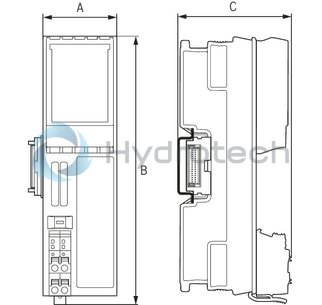

Dimensions
|
Type |
S20-PWR | |
|
A |
mm |
35 |
|
B |
mm |
126.1 |
|
C |
mm |
54 |
|
Note on dimensions |
The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715). | |
