The Bosch Rexroth S20-PB-BK (R911173247) is a high-performance cabinet IO system designed for optimal flexibility and efficiency in machine concept implementation. This modular and compact device boasts a robust design that includes forced ventilation through an axial fan, ensuring reliable operation under various conditions. The IO modules are user-friendly, featuring fast reaction times and straightforward installation processes that can be executed both in control cabinets and directly in the field. With open communication standards, the S20-PB-BK ensures seamless integration with existing systems, providing maximum availability for your operations. Its space-saving technology is ideal for top hat rail mounting, allowing for a clean setup and efficient use of available space. The modules can be combined individually to meet specific requirements, supported by an innovative assembly and installation concept. Notably, the S20-PB-BK serves as a crucial component in fieldbus communication protocols, particularly with PROFIBUS networks. It acts as a bus coupler that facilitates the connection of up to 64 S participants to a PROFIBUS system effectively. This feature is vital for expanding or modifying network configurations without significant downtime or complexity. Additionally, the device comes equipped with diagnostic and status indicators that provide real-time feedback on system performance and assist in troubleshooting any issues that may arise during operation. With its type code extension SPBBK and product group ID, this Bosch Rexroth module is easily identifiable and manageable within control systems. The S20-PB-BK's lightweight design further enhances its appeal for various applications where space constraints or weight considerations are critical factors. Overall, this IO system from Bosch Rexroth is engineered to deliver reliability, scalability, and ease of use for a wide range of automation tasks.
Cabinet I/O S20
The modular, compact device design of the I/O systems from Rexroth provides you with maximum flexibility for cost-effective implementation of your custom machine concepts. The I/O modules have a robust design and mechanics, Forced ventilated - Axial fan 230Vre easy to handle, have a fast reaction time and are quick to install – both in the control cabinet as well as in the field. Open communication standards allow you to perfectly integrate the I/O modules with maximum availability.
Unpacked Weight: 0.225 kg
The bus coupler is the connection between a PROFIBUS network and the S20 system. You can use the bus coupler to connect up to 63 S20 participants to an existing PROFIBUS system.
| Innovative assembly and installation concept |
| Individually combinable modules |
| Space-saving I/O technology for top hat rail mounting |
| Compact, modular and simple |
| 2D CAD | Download 2D CAD |
| 3D CAD | Download 3D CAD |
| Type code extension | S20-PB-BK |
| Productgroup ID | 4,6 |
| Fieldbus communication protocol | PROFIBUS |
| ctrlX configurator | https://www.boschrexroth.com/ctrlx-configurator/ |
| EPLAN | https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.S20-PB-BK**&downloads=true |
| Weight | 0.225 |
General data
|
Type |
S20-PB-BK | |
|
Color |
Gray | |
|
Weight 1) |
g |
175 |
|
Ambient temperature (operation) 2) |
-25 °C ... +55 °C | |
|
Ambient temperature (storage/transport) |
-40 °C ... +85 °C | |
|
Permissible relative humidity (operation) |
5 % ... 95 %, no dewing | |
|
Permissible relative humidity (storage/transport) |
5 % ... 95 %, no dewing | |
|
Air pressure (operation) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Air pressure (storage/transport) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Protection type |
IP20 | |
|
Protection class |
III, IEC 61140, EN 61140, VDE 0140-1 | |
|
Installation position |
Any (note temperature derating) | |
| 1) | Including plug and bus base module |
| 2) | Installation position: for wall mounting on a level support rail, max. 60 °C |
Connection data
|
Type |
S20-PB-BK | |
|
Designation |
S20 connector | |
|
Connection type |
Push-in technology | |
|
Conductor cross-section solid/flexible/AWG |
0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16 |
|
|
Stripping length |
mm |
8 |
Interface fieldbus
|
Type |
S20-PB-BK | |
|
Number of interfaces |
1 | |
|
Connection type |
D-SUB socket, 9-pin | |
|
Transmission speed |
9.6 kBit/s ... 12 MBit/s | |
Interface local bus
|
Type |
S20-PB-BK | |
|
Connection type |
Bus base module | |
|
Transmission speed |
MBit/s |
100 - |
Interface service
|
Type |
S20-PB-BK | |
|
Number of interfaces |
1 | |
System boundaries
|
Type |
S20-PB-BK | |
|
Number of process data |
≤488 bytes (per station) ≤244 bytes (input) ≤244 bytes (output) |
|
|
Number of parameter data |
byte |
≤ 244 |
|
Number of configuration data |
byte |
≤ 244 |
|
Number of supported participants per station |
≤ 63 | |
Supply of the bus coupler
|
Type |
S20-PB-BK | |
|
Supply logic voltage UL |
V DC |
24 |
|
Maximum permitted voltage range 1) |
19.2 V DC ... 30 V DC | |
|
Power supply at UBus |
A |
2 |
|
Typical current consumption from UL 2) |
mA |
101 |
|
Maximum current consumption from UL 3) |
mA |
567 |
|
Typical power consumption from UL 4) |
W |
2.5 |
|
Maximum power consumption from UL 5) |
W |
13.7 |
| 1) | Including all tolerances, including ripple |
| 2) | Without I/Os and UL = 24 V |
| 3) | With 2 A at UBus for the I/Os and UL = 24 V |
| 4) | Without I/Os |
| 5) | With 2 A load at UBus for the I/Os |
Error messages to the higher-level control or computer system
|
Type |
S20-PB-BK | |
|
Error message |
Diagnostic alarm | |
Mechanical tests
|
Type |
S20-PB-BK | |
|
Vibration resistance 1) |
g |
5 |
|
Shock 2) |
g |
30 |
|
Continuous shock 2) |
g |
10 |
| 1) | Acc. to EN 60068-2-6/IEC 60068-2-6 |
| 2) | Acc. to EN 60068-2-27/IEC 60068-2-27 |
Conformity
|
Type |
S20-PB-BK | ||
|
Conforms with |
|||
|
Testing of interference immunity acc. to EN 61000-6-2 |
Discharge of static electricity (ESD) |
Criterion B; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2 | |
|
Electro-magnetic fields |
Criterion A; field strength: 10 V/m acc. to EN 61000-4-3/IEC 61000-4-3 | ||
|
Fast transients (burst) |
Criterion B; 2 kV acc. to EN 61000-4-4/IEC 61000-4-4 | ||
|
Transient overvoltage (surge) |
Criterion B; supply lines DC: ±0.5 kV/±0.5 kV (symmetric/asymmetric); fieldbus cable shielding: ±1 kV acc. to EN 61000-4-5/IEC 61000-4-5 | ||
|
Line-fed disturbances |
Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6 | ||
|
Testing of disturbance transmission acc. to EN 61000-6-3 |
Radio disturbance characteristics |
Class B acc. to EN 55022 | |
|
Approvals |
|
The current approvals can be found at www.boschrexroth.com. |

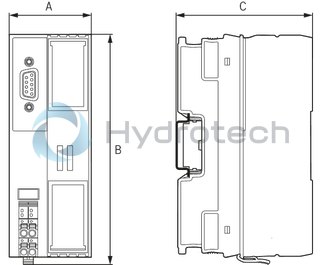

Dimensions
|
Type |
S20-PB-BK | |
|
A |
mm |
45 |
|
B |
mm |
125.9 |
|
C |
mm |
74 |
|
Note on dimensions |
The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715). | |
