BOSCH REXROTH
R911172544
$1,085.08 USD
- BOSCH REXROTH
- Material:R911172544
- Model:S20-SSI-AO-1/1
Quantity in stock: 0
The Bosch Rexroth S20-SSI-AO-1/1 (R911172544) is a sophisticated IO module designed with a modular and compact structure, ensuring easy handling and rapid installation. This device is specifically engineered to fit seamlessly into control cabinets or field setups, thanks to its space-saving technology that is suitable for top hat rail mounting. Its robust design incorporates forced ventilation through an axial fan, which contributes to the module's reliable performance in various operational conditions. The S20-SSI-AO-1/1 module stands out for its ability to interface with absolute encoders via an SSI connection, managing an impressive encoder resolution of up to 32 bits. It accommodates both gray and binary code inputs and supports a high transmission frequency of up to 2 MHz, making it highly versatile for different data acquisition scenarios. Additionally, the module features an analog output that can be employed for setting values in diverse drive systems such as electric or hydraulic drives. Equipped with current and voltage measuring ranges, the S20-SSI-AO-1/1 also offers diagnostic and status indicators that enhance its functionality and reliability in monitoring tasks. The device is capable of detecting the position through absolute encoders while also providing options such as rotation direction reversal for comprehensive control over motion applications. This IO module is part of a product group identified by the ctrlX configurator from Bosch Rexroth, highlighting its compatibility with open communication standards which ensures maximum availability when integrated into machine concepts. The innovative assembly and installation concept of this IO technology underscores its user-friendly nature, allowing for individual combination of modules to meet bespoke requirements within an automation station setup.
Cabinet I/O S20
The modular, compact device design of the I/O systems from Rexroth provides you with maximum flexibility for cost-effective implementation of your custom machine concepts. The I/O modules have a robust design and mechanics, Forced ventilated - Axial fan 230Vre easy to handle, have a fast reaction time and are quick to install – both in the control cabinet as well as in the field. Open communication standards allow you to perfectly integrate the I/O modules with maximum availability.
Unpacked Weight: 0.192 kg
This module is designed for use within an 20 station. It is used to acquire data from absolute encoders with an SSI interface using a maximum resolution of up to 56 bits. This module supports encoders with gray and binary code. Transmission rates of up to 2 MHz are supported. The module also has an analog output that can be used to specify set values, e.g. for electric or hydraulic drives.
| Innovative assembly and installation concept |
| Individually combinable modules |
| Space-saving I/O technology for top hat rail mounting |
| Compact, modular and simple |
| 2D CAD | Download 2D CAD |
| 3D CAD | Download 3D CAD |
| Type code extension | S20-SSI-AO-1/1 |
| Productgroup ID | 4,6 |
| ctrlX configurator | https://www.boschrexroth.com/ctrlx-configurator/ |
| Number of channels | 1 |
| EPLAN | https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.S20-SSI-AO-1%2F1**&downloads=true |
| Weight | 0.192 |
General data
|
Type |
S20-SSI-AO-1/1 | |
|
Color |
Gray | |
|
Weight 1) |
g |
135 |
|
Ambient temperature (operation) |
-25 °C ... +60 °C | |
|
Ambient temperature (storage/transport) |
-40 °C ... +85 °C | |
|
Permissible relative humidity (operation) |
5 % ... 95 %, no dewing | |
|
Permissible relative humidity (storage/transport) |
5 % ... 95 %, no dewing | |
|
Air pressure (operation) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Air pressure (storage/transport) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Protection type |
IP20 | |
|
Protection class |
III, IEC 61140, EN 61140, VDE 0140-1 | |
| 1) | Including plug and bus base module |
Connection data
|
Type |
S20-SSI-AO-1/1 | |
|
Designation |
S20 connector | |
|
Connection type |
Push-in technology | |
|
Conductor cross-section solid/flexible/AWG |
0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16 |
|
|
Stripping length |
mm |
8 |
|
Permissible cable length |
m |
≤ 250 |
Interface local bus
|
Type |
S20-SSI-AO-1/1 | |
|
Connection type |
Bus base module | |
|
Number |
1 | |
|
Transmission speed |
MBit/s |
100 |
Power supply to logic
|
Type |
S20-SSI-AO-1/1 | |
|
Logic voltage UBus 1) |
V DC |
5 |
|
Maximum current consumption from UBus |
mA |
140 |
|
Maximum power consumption from UBus |
mW |
700 |
| 1) | Via bus base module |
Power supply to peripherals
|
Type |
S20-SSI-AO-1/1 | |
|
Feed to digital input modules UI |
V DC |
24 |
|
Maximum permitted voltage range 1) |
19.2 V DC ... 30 V DC | |
|
Current consumption from UI 2) |
mA |
≤ 60 |
|
Maximum power consumption from UI 2) |
W |
1.4 |
|
Overvoltage protection |
Electronic (35 V, 0.5 s) | |
|
Reverse polarity protection |
Reverse polarity protection diode | |
|
Transient protection |
Suppressor diode | |
| 1) | Including all tolerances, including ripple |
| 2) | Supply for SSI interface and the analog output (20 mA), without sensor supply |
SSI interface
|
Type |
S20-SSI-AO-1/1 | |
|
Number |
1 | |
|
Connection type |
Push-in technology | |
|
Connectivity technology |
4-wire, twisted pair, shielded cable | |
|
Description of the input |
RS-422 interface acc. to SSI specification | |
|
Encoder signals |
Single-turn and multi-turn encoder, length measuring rods | |
|
Cycle frequency |
Up to 2 MHz (configurable: 67.5 kHz, 125 kHz (default), 250 kHz, 500 kHz, 1 MHz) | |
|
Parity |
Even, Odd or No Parity | |
|
Resolution |
8 ... 56 Bit | |
|
Encoding |
Gray code, binary code | |
|
Process data update |
Depending on the used encoder, clock frequency and the data length. | |
|
Overvoltage protection |
Electronic (35 V, permanent) | |
|
Short-circuit protection, overload protection |
Electronic | |
|
Transient protection |
Shielding | |
Encoder supply
|
Type |
S20-SSI-AO-1/1 | |
|
24 V encoder supply |
||
|
Nominal output voltage |
24 V DC (UI-0.5 V) | |
|
Voltage range |
19.5 V DC ... 30 V DC | |
|
Current-carrying capacity |
mA |
≤ 500 |
|
Overvoltage protection |
Electronic (35 V, 0.5 s) | |
|
Short-circuit protection, overload protection |
Electronic | |
|
Transient protection |
Shielding | |
Analog outputs
|
Type |
S20-SSI-AO-1/1 | |
|
Number of analog outputs |
1 | |
|
Connection type |
Push-in technology | |
|
Connectivity technology |
2-wire technology (shielded, twisted pair) | |
|
Resolution D/A |
bits |
16 |
|
D/A conversion time |
µs |
5 |
|
Output value representation |
16 bits (15 bits + sign) | |
|
Data formats |
IB IL, S7 compatible | |
|
Permissible cable length |
m |
≤ 250 |
|
Overvoltage protection |
Electronic (35 V, permanent) | |
|
Short-circuit protection, overload protection |
Electronic | |
|
Transient protection |
Suppressor diode | |
Analog outputs, current
|
Type |
S20-SSI-AO-1/1 | |
|
Current output signal |
0 mA ... 20 mA 4 mA ... 20 mA -20 mA ... 20 mA |
|
|
Output load current output |
Ω |
≤ 500 |
|
Precision |
Typ. 0.1 % (of the output range end value) | |
Analog outputs, voltage
|
Type |
S20-SSI-AO-1/1 | |
|
Voltage output signal |
0 V ... 5 V -5 V ... 5 V 0 V ... 10 V -10 V ... 10 V |
|
|
Output load voltage output |
kΩ |
> 2 |
|
Precision |
Typ. 0.1 % (of the output range end value) | |
PROFIBUS telegram data
|
Type |
S20-SSI-AO-1/1 | |
|
Need for parameter data |
byte |
29 |
|
Need for configuration data |
byte |
7 |
Mechanical tests
|
Type |
S20-SSI-AO-1/1 | |
|
Vibration resistance 1) |
g |
5 |
|
Shock 2) |
30 g, 11 ms duration, semi-sinusoidal shock pulse | |
|
Continuous shock 2) |
g |
10 |
| 1) | Acc. to EN 60068-2-6/IEC 60068-2-6 |
| 2) | Acc. to EN 60068-2-27/IEC 60068-2-27 |
Conformity
|
Type |
S20-SSI-AO-1/1 | ||
|
Conforms with |
|||
|
Testing of interference immunity acc. to EN 61000-6-2 |
Discharge of static electricity (ESD) |
Criterion B; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2 | |
|
Electro-magnetic fields |
Criterion A; field strength: 10 V/m acc. to EN 61000-4-3/IEC 61000-4-3 | ||
|
Fast transients (burst) |
Criterion B; 2 kV acc. to EN 61000-4-4/IEC 61000-4-4 | ||
|
Transient overvoltage (surge) |
Criterion B; supply lines DC: ±0.5 kV/±0.5 kV (symmetric/asymmetric); fieldbus cable shielding: ±1 kV acc. to EN 61000-4-5/IEC 61000-4-5 | ||
|
Line-fed disturbances |
Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6 | ||
|
Testing of disturbance transmission acc. to EN 61000-6-3 |
Radio disturbance characteristics |
Class B acc. to EN 55022 | |
|
Approvals |
|
The current approvals can be found at www.boschrexroth.com. |

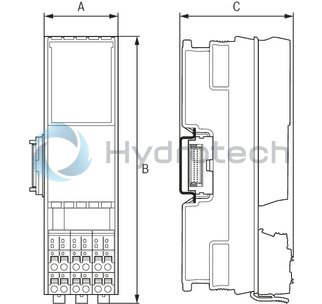

Dimensions
|
Type |
S20-SSI-AO-1/1 | |
|
A |
mm |
35 |
|
B |
mm |
126.1 |
|
C |
mm |
54 |
|
Note on dimensions |
The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715). | |
