BOSCH REXROTH
R911172293
$677.88 USD
- BOSCH REXROTH
- Material:R911172293
- Model:SLC-A-UE410-2RO4
Quantity in stock: 0
The Bosch Rexroth SLC-A-UE410-2RO4 (R911172293) is a relay module designed to enhance the functionality of the SafeLogic compact safety controller's base station. This module is equipped with two-channel outputs that utilize forcibly guided relay contacts, ensuring reliable and secure operations. The SLC-A-UE410-2RO4 also features a return signaling path, which is critical for contactor monitoring through External Device Monitoring (EDM). Users can expand their system to include up to several secure relay outputs per station, depending on their specific requirements. However, it's important to note that this module functions exclusively in conjunction with the digital IO module SLCXTIO. This integration capability ensures seamless communication and coordination within the safety controller system. The Bosch Rexroth relay module is an ideal solution for applications requiring dependable extension of CPU modules with relay outputs, providing both performance and safety in a compact form factor.
The relay module upgrades the base station of the SafeLogic compact safety controller. The module provides two-channel outputs with contacts in the form of forcibly guided relay contacts. The module is connected via the digital SLC-3-XTIO84302 I/O module.
General data
|
Type |
SLC-A-UE410-2RO4 | |
|
Weight 1) |
g |
160 |
|
Ambient temperature (operation) |
-25 °C ... +55 °C | |
|
Ambient temperature (storage) |
-25 °C ... +70 °C | |
|
Permissible relative humidity (operation) |
15 % ... 95 %, no dewing | |
|
Protection type terminals |
IP20, EN 60529 | |
|
Protection type housing |
IP40, EN 60529 | |
| 1) | ±5 % |
Safety technological parameters
|
Type |
SLC-A-UE410-2RO4 | |
|
Safety integrity level acc. to IEC 61508 |
SIL 3 | |
|
Safety integrity level acc. to EN 62061 |
SILCL3 | |
|
Category acc. to EN ISO 13849-1 |
Category 4 | |
|
Performance level acc. to EN ISO 13849-1 |
PL e | |
|
PFHd acc. to EN ISO 13849 |
1.2*10-9 - |
|
|
TM (service life) acc. to EN ISO 13849 |
20 a | |
Electrical data
|
Type |
SLC-A-UE410-2RO4 | |
|
Protection class |
III, DIN EN 61140 | |
|
Type of voltage supply |
Via FLEXBUS+ | |
|
Internal power consumption |
W |
1.6 |
|
Switching current |
A |
≤ 6 |
|
Mechanical service life (relay contacts) |
1*107 switching cycles | |
|
Electrical service life (relay contacts) |
1*105 switching cycles | |
Interfaces
|
Type |
SLC-A-UE410-2RO4 | |
|
Contact type |
Forcibly guided | |
|
Number of safe contact outputs |
2 | |
|
Number of signaling current paths |
1 | |
|
Number of return signaling current paths |
1 | |
|
Number of control inputs |
1 | |
|
Cascadable |
No | |
|
Connection type |
Plug-in block modules | |
Mechanical tests
|
Type |
SLC-A-UE410-2RO4 | |
|
Vibration resistance |
5 g, 5 ... 500 Hz, acc. to EN 60068-2-64 - |
|
Digital I/O module (8 inputs, 4 outputs)
SLC-3-XTIO84302
Digital I/O module (8 inputs, 4 outputs)
SLC-3-XTIO84302
8 SIL 3 safety inputs, 4 SIL 3 safety outputs Monitoring of the connected sensor system Fast safety response due to integrated fast shut-off function Diagnosis LEDs Required when using the SLC‑A‑UE410‑4RO4/2RO4 relay modulesOperating instructions
CAD Download

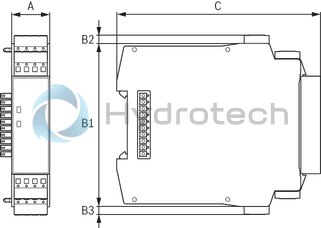

Dimensions
|
Type |
SLC-A-UE410-2RO4 | |
|
A |
mm |
22.5 |
|
B1 |
mm |
96.5 |
|
B2 |
mm |
5.1 |
|
B3 |
mm |
5.1 |
|
C |
mm |
120.6 |
