BOSCH REXROTH
R911172285
$1,072.53 USD
- BOSCH REXROTH
- Material:R911172285
- Model:SLC-3-CPU130302
Quantity in stock: 0
The Bosch Rexroth SLC-3-CPU130302 (R911172285) is a high-performance CPU module designed as the central processing unit for the SafeLogic compact safety controller. This critical component ensures the reliable processing of safety-related input signals from activated I/O modules. It is responsible for monitoring and managing all configuration data along with the safety program, securely stored on a dedicated memory plug. With its advanced features, the SLC-3-CPU130302 offers fast startup capabilities facilitated by a system connector RS connection, which significantly reduces system downtime and enhances productivity. For maintenance and troubleshooting, it includes a USB interface that provides convenient local diagnostics. The module also supports safe device communication through EFI (Ethernet for Field Instrumentation), ensuring secure and efficient data exchange within the system. The FLEXBUS communication bus integrated into this CPU module enables seamless interaction within the controller setup, promoting an effective and responsive safety control environment. This product is essential for applications requiring stringent safety measures and reliable performance in processing safety-related data. The Bosch Rexroth SLC-3-CPU130302 stands out as a vital component in any safety-critical control system where precision and dependability are paramount.
The CPU module is the central processing unit of the SafeLogic compact safety controller. All the safety-related input signals to/from the activated I/O modules are processed in it. The CPU module monitors and processes all configuration data and the safety program, which are stored in the memory plug. Data is exchanged within the system via the FLEXBUS+ communication bus.
General data
|
Type |
SLC-3-CPU1 | |
|
Weight 1) |
g |
119 |
|
Ambient temperature (operation) |
-25 °C ... +55 °C | |
|
Ambient temperature (storage) |
-25 °C ... +70 °C | |
|
Permissible relative humidity (operation) |
10 ... 95%, no dewing | |
|
Climatic conditions |
+55 °C ambient temperature, 95 % relative humidity, acc. to EN 61131-2 | |
|
Electromagnetic compatibility (EMC) |
Class A, acc. to EN 61000-6-2, EN 55011 | |
|
Protection type terminals |
IP20, EN 60529 | |
|
Protection type housing |
IP40, EN 60529 | |
| 1) | ±5 % |
Safety technological parameters
|
Type |
SLC-3-CPU1 | |
|
Safety integrity level acc. to IEC 61508 |
SIL 3 | |
|
Safety integrity level acc. to EN 62061 |
SILCL3 | |
|
Category acc. to EN ISO 13849-1 |
Category 4 | |
|
Performance level acc. to EN ISO 13849-1 |
PL e | |
|
PFHd acc. to EN ISO 13849 |
1.69*10-9 - |
|
|
TM (service life) acc. to EN ISO 13849 |
20 a | |
Electrical data
|
Type |
SLC-3-CPU1 | |
|
Protection class |
III, DIN EN 61140 | |
|
Type of voltage supply |
PELV or SELV | |
|
Supply voltage |
24 V DC (16.8 ... 30 V DC) | |
|
Internal power consumption |
W |
≤ 2.5 |
|
Overvoltage category |
II, acc. to EN 61131-2 | |
|
Energize time |
s |
≤ 18 |
Functions
|
Type |
SLC-3-CPU1 | |
|
Restart inhibit |
No | |
|
Contactor monitoring (EDM) |
Yes | |
|
Man-material differentiation (muting) |
Yes | |
|
Safe SICK device communication via EFI |
Yes | |
|
Flexi Line |
No | |
|
Automatic Configuration Recovery (ACR) |
No | |
Interfaces
|
Type |
SLC-3-CPU1 | |
|
System connection |
System connector SLC-3-MPL000301 | |
|
Connection type system connector |
Screw terminals | |
|
Connection type EFI interface |
Tension spring modules | |
|
Number of EFI interfaces |
2 | |
|
Configuration and diagnostics interface |
RS232 - - |
|
Mechanical tests
|
Type |
SLC-3-CPU1 | |
|
Vibration resistance |
1 g, 5 … 150 Hz, acc. to EN 60068-2-6 3 g RMS, 10 … 500 Hz, acc. to EN 60068-2-64 |
|
|
Shock |
30 g, 11 ms, acc. to EN 60068-2-27 | |
|
Continuous shock |
10 g, 16 ms, acc. to EN 60068-2-27 | |

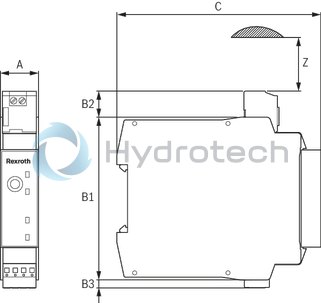

Dimensions
|
Type |
SLC-3-CPU1 | |
|
A |
mm |
22.5 |
|
B1 |
mm |
96.5 |
|
B2 |
mm |
15.4 |
|
B3 |
mm |
5.1 |
|
C |
mm |
120.6 |
|
Z 1) |
mm |
33.1 |
| 1) | Mating area |
