- Material:R911171783
- Model:S67-ET-BK-DI8-M8
Quantity in stock: 0
The Bosch Rexroth S67-ET-BK-DI8-M8 (R911171783) is a state-of-the-art fieldbus coupler designed to seamlessly integrate S IO modules into an Ethernet network or Ethernet/IP scanner. Equipped with 8 digital inputs, this model code is tailored for efficient and reliable communication within automated systems. The S67-ET-BK-DI8-M8 supports the connection of up to 64 modules on the local system bus, enabling extensive and flexible configurations to suit various application needs. With a robust design that allows for a maximum distance of 10 meters between two modules, the device ensures a reliable signal transmission across the system. Furthermore, it can facilitate a total extension of up to 100 meters per station, making it an excellent choice for larger installations where distance could be a potential issue. This fieldbus coupler is essential for users seeking high-performance networking solutions in their automation processes, ensuring minimal downtime and maximized efficiency in data handling and module communication.
This fieldbus coupler is used to connect the S67 I/O modules to an Ethernet network or to an Ethernet/IP scanner. It comes with 8 digital inputs. It supports up to 64 modules on the local system bus. The maximum distance between two modules is 50 meters, with a maximum total extension of 500 meters per station.
General data
|
Type |
S67-ET-BK-DI8-M8 | |
|
Weight |
g |
≈ 400 |
|
Ambient temperature (operation) |
-25 °C ... +60 °C | |
|
Permissible relative humidity (operation) |
5 % ... 95 %, no dewing | |
|
Air pressure (operation) |
795 ... 1080 hPa | |
|
Protection type |
IP67 | |
Interface fieldbus
|
Type |
S67-ET-BK-DI8-M8 | |
|
Fieldbus system |
EtherNet/IP | |
|
Connection type |
D-coded 5-pin M12 plug | |
Interface local bus
|
Type |
S67-ET-BK-DI8-M8 | |
|
Designation |
System bus | |
|
Connection type |
B-coded 5-pin shielded M12 plug | |
System boundaries
|
Type |
S67-ET-BK-DI8-M8 | |
|
Number of supported participants per station 1) |
≤ 64 | |
| 1) | I/O modules |
Supply of module electronics
|
Type |
S67-ET-BK-DI8-M8 | |
|
Connection type |
A-coded 4-pin M12 plug | |
|
Current carrying capacity of supply connections 1) |
A |
≤ 8 |
|
Voltage supply logic and sensors ULS |
V DC |
24 |
|
Voltage supply actuators UA |
V DC |
24 |
|
Current consumption from ULS |
Typ. 125 mA + sensors (max. 400 mA) | |
|
Current consumption from UA |
mA |
5 |
|
Reverse polarity protection |
For ULS + UA | |
|
Short-circuit protection of the sensor supply |
Yes | |
| 1) | (ULS: 4 A, UA: 4 A) |
Digital inputs
|
Type |
S67-ET-BK-DI8-M8 | |
|
Number of digital inputs |
8 | |
|
Connection type |
3 pin M8 plug | |
|
Connectivity technology |
2-, 3-wire technology | |
|
Dimensioning of inputs |
Acc. to EN 61131-2 type 1 | |
|
Nominal input voltage UINenn |
V DC |
24 |
|
Nominal input current at UINenn |
mA |
2.8 |
Mechanical tests
|
Type |
S67-ET-BK-DI8-M8 | |
|
Vibration resistance |
Acc. to IEC 60068-2-6 | |
|
Shock |
Acc. to IEC 60068-2-27 | |
Norms and Standards
|
Type |
S67-ET-BK-DI8-M8 | |
|
Certifications |
UL 508 - - - - - - |
|
|
Approvals |
|
The current approvals can be found at www.boschrexroth.com. |

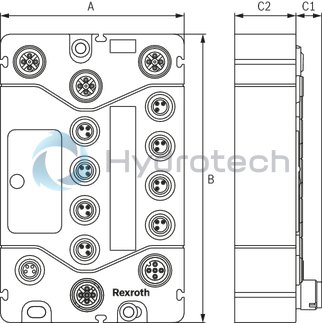

Dimensions
|
Type |
S67-ET-BK-DI8-M8 | |
|
A |
mm |
75 |
|
B |
mm |
117 |
|
C1 |
mm |
10.7 |
|
C2 |
mm |
25 |
