BOSCH REXROTH
R911170948
$832.59 USD
- BOSCH REXROTH
- Material:R911170948
- Model:R-IBIL24LSKIP-PAC
Quantity in stock: 0
The Bosch Rexroth R-IB IL 24 LSKIP-PAC (R911170948) is an integral component designed for sophisticated Inline station configurations within automation systems. This module serves as a line skip module, primarily installed at the beginning of a new line in an Inline station, allowing for the extension of the station across multiple lines. Its primary function is to act as a local bus extension with a limited length capacity, ensuring seamless communication and power distribution between different segments of an Inline station. The R-IB IL 24 LSKIP-PAC works in unison with the RIB IL FLMPAC module, which is positioned at the end of the preceding line, thereby creating an efficient and expandable modular system. The module accepts a supply voltage of 24 V DC (U V), which is utilized to generate both the logic voltage (UL) and the supply voltage for analog modules (UANA). Additionally, it facilitates the distribution of two essential voltages: the 24 V DC main voltage (UM) and segment voltage (US), crucial for maintaining stable operation across various components within an Inline station. This Bosch Rexroth module exemplifies how modularity and flexibility can be achieved in complex automation systems, ensuring that power and data can be effectively routed throughout extended configurations without compromising on performance or reliability. Its design underlines the ease with which Inline stations can be scaled up to meet varying demands, making it an indispensable tool for engineers looking to enhance their control systems with additional lines and modules.
Inline connector
The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.
Unpacked Weight: 0.271 kg
This module is designed for use within an Inline station. The Inline line skip module is installed at the beginning of the line in the second line (etc.) of an Inline station. This is how an Inline station can be extended using two or more lines. This connection is equal to a local bus extension limited in length. The Inline line skip module works in combination with the R-IB IL 24 FLM-PAC module, which is installed at the end of the previous line. You can feed the supply voltages again using this module. To do so, a 24 V DC voltage (U24 V) is applied at the module; this voltage generates the logic voltage (UL) and the supply voltage for the analog modules (UANA). This module also enables the 24 V DC main voltage (UM) and the 24 V DC segment voltage (US) to be fed.
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Air pressure (operation) | 70-106 kPa (up to 3,000 m above sea level) |
| Width | 48.8 |
| Productgroup ID | 4,6 |
| Height | 136.8 |
| International protection code | IP20 |
| Permissible air humidity (storage) | 10-95 |
| Communication | Branch module ‒ Line skip |
| Permissible air humidity (transport) | 10-95 |
| Connection type | Zugfederanschluss |
| Depth | 72 |
| Weight | 0.271 |
| Ambient temperature (during operation) | -25-55 |
| Ambient temperature (storage and transport) | -25-85 |
| Conductor cross-section | Rigid: 0.08-0.5 mm²,Flexible: 0.08-0.5 mm²,AWG: 28 ... 16 |
General data
|
Type |
R-IB IL 24 LSKIP-PAC | |
|
Weight 1) |
g |
207 |
|
Ambient temperature (operation) |
-25 °C ... +55 °C | |
|
Ambient temperature (storage/transport) |
-25 °C ... +85 °C | |
|
Permissible relative humidity (operation) |
10 % ... 95 % acc. to DIN EN 61131-2 | |
|
Permissible relative humidity (storage/transport) |
10 % ... 95 % acc. to DIN EN 61131-2 | |
|
Air pressure (operation) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Air pressure (storage/transport) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Protection type |
IP20, IEC 60529 | |
|
Protection class |
III, EN 61131-2, IEC 61131-2 | |
| 1) | Including plug |
Connection data
|
Type |
R-IB IL 24 LSKIP-PAC | |
|
Connection type |
Tension spring modules | |
|
Conductor cross-section solid/flexible/AWG |
0.08 mm² ... 1.5 mm² 0.08 mm² ... 1.5 mm² 28 ... 16 |
|
Interface local bus
|
Type |
R-IB IL 24 LSKIP-PAC | ||
|
Designation |
RS-422 | ||
|
Connection type |
Data ranking | ||
|
Incoming local bus |
Cable |
Standard INTERBUS cable | |
|
Permissible cable length 1) |
m |
≤ 20 | |
|
Transmission speed 2) |
kBit/s MBit/s |
500 2 |
|
| 1) | Sum of cable lengths between the first R-IB IL 24 FLM-PAC and the last R-IB IL 24 LSKIP-PAC Inline station. |
| 2) | Can be used with this transmission speed in Inline stations, if required |
Electrical isolation/insulation of the voltage ranges
|
Type |
R-IB IL 24 LSKIP-PAC | |
|
Test distance |
Test voltage | |
|
5 V supply incoming local bus/7.5 V logic, 24 V analog supply, 24 V supply for generation of UL and UANA |
500 V AC, 50 Hz, 1 min. | |
|
5 V supply incoming local bus/24 V main, 24 V segment supply |
500 V AC, 50 Hz, 1 min. | |
|
5 V supply incoming local bus/function earth |
500 V AC, 50 Hz, 1 min. | |
|
7.5 V logic, 24 V analog supply, 24 V supply for generation of UL and UANA/function earth |
500 V AC, 50 Hz, 1 min. | |
|
7.5 V logic, 24 V analog supply, 24 V supply for generation of UL and UANA/24 V main, 24 V segment supply |
500 V AC, 50 Hz, 1 min. | |
|
24 V main, 24 V segment supply, 24 V supply for generation of UL and UANA/function earth |
500 V AC, 50 Hz, 1 min. | |
Module power supply
|
Type |
R-IB IL 24 LSKIP-PAC | ||
|
Logic power supply UL (Potential jumper) |
Rated value |
V DC |
7.5 |
|
Tolerance |
% |
± 5 | |
|
Ripple |
% |
± 1.5 | |
|
Maximum output current 1) |
A |
2 | |
|
Electrical short-circuit protection |
Yes | ||
|
Analog power supply UANA (Potential jumper) |
Rated value |
V DC |
24 |
|
Maximum output current 1) |
A |
0.5 | |
|
Electrical short-circuit protection |
Yes | ||
| 1) | Observe derating |
24 V power feed U24V for generating UL and UANA
|
Type |
R-IB IL 24 LSKIP-PAC | ||
|
Connection |
Via power supply plug | ||
|
Connectivity technology |
Tension spring modules | ||
|
Permissible cable length 1) |
m |
≤ 30 | |
|
Typical current consumption 2) |
A |
0.06 | |
|
Maximum current consumption 3) |
A |
1.25 | |
|
Protective devices |
Overvoltage |
Yes; input protection diodes are destroyed by permanent overload. Pulse loads up to 1500 W are short-circuited by the input protection diode. | |
|
Reverse polarity |
Yes; serial diode in the feed path of the mains power supply; in the event of a fault, only low current flows and does not trip a fuse in the external power supply. | ||
| 1) | Cable route is not permissible via open spaces |
| 2) | At no load, i.e. incoming local bus attached, no local bus participants connected up, bus inactive |
| 3) | Comprising:0.75 A for logic supply0.5 A for analog voltage supply |
24 V main power feed/24 V segment power feed
|
Type |
R-IB IL 24 LSKIP-PAC | ||
|
Connection |
Via power supply plug | ||
|
Connectivity technology |
Tension spring modules | ||
|
Permissible cable length 1) |
m |
≤ 30 | |
|
Continuation |
Potential jumpers | ||
|
Current-carrying capacity |
A |
≤ 8 | |
|
Protective devices |
Overvoltage |
Yes; input protection diodes are destroyed by permanent overload. Pulse loads up to 1500 W are short-circuited by the input protection diode. | |
|
Reverse polarity |
Yes; parallel polarity protection diodes; in the event of a fault, the high current through the diodes melts the upstream safety fuse. | ||
| 1) | Cable route is not permissible via open spaces |
Common data for 24 V feeds
|
Type |
R-IB IL 24 LSKIP-PAC | |
|
Rated value |
V DC |
24 |
|
Tolerance |
-15 %/+20 % acc. to EN 61131-2 | |
|
Ripple |
% |
± 5 |
|
Supply voltage range |
19.2 V ... 30 V | |
|
Electrical isolation/insulation of the voltage ranges |
||
|
When supplying the 24 V feed to generate UL and UANA separate from the 24 V main supply/24 V segment supply |
Common potentials |
Main and segment supply are galvanically on the same potential. Their shared ground is led to the participants as ground potential GND, starting from the line skip module and via the potential jumper. |
|
Separated potentials |
The 24 V feed to generate UL and UANA is separated spatially from the main and segment supply and thus electrically isolated. |
|
|
When supplying the 24 V feed to generate UL and UANA by bridging the 24 V main supply/24 V segment supply |
Common potentials |
Main supply, segment supply, 24 V analog supply and 7.5 V logic supply are galvanically on the same potential. Their shared ground is led separately to the participants as ground potential "Logic GND" (UL-) for the logic and analog supply and as ground potential GND for the feed and segment levels, starting from the line skip module and via the potential jumper. |
|
Separated potentials |
None |
|
|
Approvals |
|
The current approvals can be found at www.boschrexroth.com. |

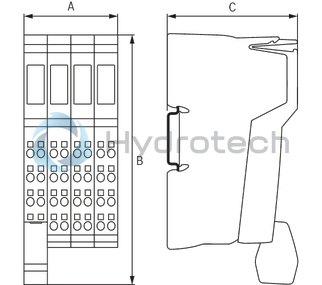

Dimensions
|
Type |
R-IB IL 24 LSKIP-PAC | |
|
A |
mm |
48.8 |
|
B |
mm |
136.8 |
|
C |
mm |
72 |
|
Note on dimensions |
The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715). | |
|
Response in the event of voltage dips and interruptions |
|
The voltages (principal and segment voltage) passed on by the line skip module to the potential jumpers follow the fed supply voltages undelayed. |
|
Special requirements to be met by the voltage supply |
|
When feeding the supply voltage U24V separate from the supply voltages UM/US these are galvanically isolated from each other. This is only possible using two separate power packs. |
|
Special requirements to be met by the voltage supply |
|
When feeding the supply voltages UM/US separate from the supply voltage U24V these are galvanically isolated from each other. This is only possible using two separate power packs. |
