BOSCH REXROTH
R911170254
$8,723.42 USD
- BOSCH REXROTH
- Material:R911170254
- Model:CML40.2-NP-330-NA-NNNN-NW
Quantity in stock: 0
The extensive portfolio of scalable embedded control hardware flexibly extends centralized and decentralized automation topologies. The system can be integrated with the Sercos automation bus and other fieldbus and Ethernet-based protocols. Optional safety function/expansion modules enable easy expansion to include SafeLogic control
Unpacked Weight: 0.978 kg
| 3D CAD | Download 3D CAD |
| Memory | 64 MB |
| Power input | 9 |
| Width | 175.4 |
| Mass memory | CompactFlash 128 MB |
| Power supply voltage min | 19.2 |
| Productgroup ID | 4,6 |
| System availability | IL: 04VRS; MLC: 04VRS; MTX: 06VRS ff. |
| Power supply voltage max | 30 |
| Height | 120 |
| Communication interface 2 | PROFIBUS |
| International protection code | IP20 |
| NVRAM | 128 kB |
| Number of channels | 8 |
| Communication interface 1 | Not defined |
| Rated voltage DC | 24 |
| Max. current consumption from Uls | 2.6 |
| Processor | AMD Geode LX800/500 MHz |
| Depth | 75.9 |
| Weight | 0.978 |
| Ambient temperature (during operation) | 5-55 |
| Ambient temperature (storage and transport) | -25-70 |
General data
|
Type |
CML40.2-NP-330 | |
|
Diagnostics |
Powerfail Watchdog Temperature monitoring |
|
|
Display |
LCD 1-line | |
|
Number of control keys |
4 | |
|
Ambient temperature (operation) |
°C |
+5 … +55 |
|
Permissible relative humidity (operation) |
5 % ... 95 %, EN 61131-2 | |
|
Protection type |
IP20 | |
|
Weight |
kg |
0.76 |
Processor
|
Type |
CML40.2-NP-330 | |
|
CPU |
(AMD-Geode LX800, 500 MHz) | |
|
Real-time clock |
Integrated | |
Memory
|
Type |
CML40.2-NP-330 | |
|
Application/application |
MB |
64 |
|
Remanent memory |
kB |
128 |
|
Buffered |
MB |
1 |
|
Flash size |
MB |
128 |
Connection data
|
Type |
CML40.2-NP-330 | ||
|
Number of channels, used |
≤ 256 | ||
|
Number of function modules |
≤ 4 | ||
|
I/O extension |
Number of Inline modules |
≤ 63 | |
|
byte |
≤ 64 | ||
Interfaces
|
Type |
CML40.2-NP-330 | |
|
Type |
1 x Ethernet TCP/IP (standard) 1 x ready contact (option) 1 x RS232 (standard) |
|
|
Fieldbus system |
1 x Sercos (FO) (option) 1 x PROFIBUS master/slave (standard) |
|
Digital inputs
|
Type |
CML40.2-NP-330 | |
|
Number |
8 galvanically isolated inputs (interrupt capable) | |
Digital outputs
|
Type |
CML40.2-NP-330 | |
|
Number |
8 galvanically isolated outputs | |
Electrical data
|
Type |
CML40.2-NP-330 | ||
|
Supply voltage U |
V DC |
24 | |
|
Umin ... Umax |
19 V DC ... 30 V DC | ||
|
Residual ripple |
% |
± 5 | |
|
Logic supply UL |
V 1) |
7.5 | |
|
A |
≤ 2 | ||
|
Logic, segment supply ULS |
Tolerance |
-25 % … +30 % | |
|
A |
≤ 2.6 | ||
|
Segment supply voltage US |
Tolerance |
-15 % … +20 % | |
| Max. 8 A (total of UM + US) | |||
|
Main supply voltage UM |
V DC |
24 | |
|
Tolerance |
-15 % … +20 % | ||
| Max. 8 A (total of UM + US) | |||
|
Power consumption |
W |
9 | |
| 1) | Converted from external 24 V DC |
Mechanical tests
|
Type |
CML40.2-NP-330 | |
|
Vibration resistance |
g |
1 |
|
Shock |
g |
15 |
Function modules
CFL
Function modules
CFL
Extension of the control functionality through additional technology features Expansion of connectivity with additional interfaces Expansion of the standard control to the SafeLogic safety controllerCAD Download
I/O system for the control cabinet
Inline (IP20)
I/O system for the control cabinet
Inline (IP20)
Compact, modular, and simple Space-saving I/O technology for DIN rail mounting Individually combinable modules Innovative assembly and installation conceptCAD Download
Fieldline (IP67)
I/O system for field installation
Fieldline (IP67)
I/O system for field installation
High protection type IP67 for harsh industrial environments Intelligent voltage concept for selective power-off Fast and perfect installation Highly reliable operation under extreme ambient conditions Compact designCAD Download

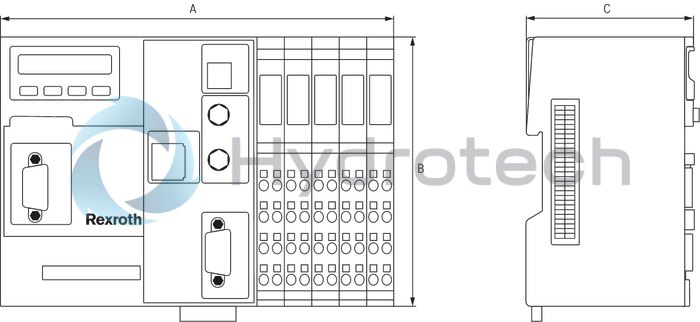

Dimensions
|
Type |
CML40.2-NP-330 | |
|
A |
mm |
175.4 |
|
B |
mm |
120 |
|
C |
mm |
75.9 |
Norms and Standards
|
Type |
CML40.2-NP-330 | |
|
Certifications |
CE/UL/CSA | |
