BOSCH REXROTH
R902502985
$5,063.00
- BOSCH REXROTH
- Material:R902502985
- Model:AA10VSO71DRG/31R-VKC92N00*GO2*
Quantity in stock: 2

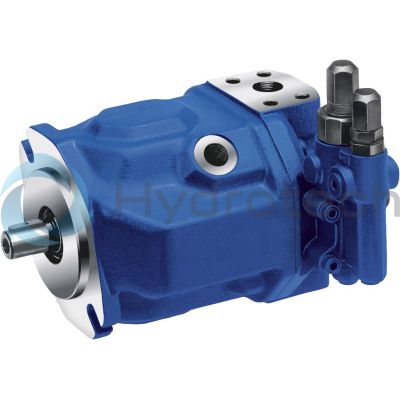

A10VSO, variable displacement unit, open circuit, medium pressure, size: 71 cm³, pressure controller, without through drive
A10VSO is a variable pump with axial piston transmission in swash plate design for hydrostatic drives in the open circuit. The flow is proportional to the drive speed and the displacement. By adjusting the swash plate, the flow can be steplessly changed.
Unpacked Weight: 35.2 kg
Data Sheet | Download Data Sheet |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Paint/top coat | without |
Test certificate | Without |
Series | Series 3, index 1 |
Productgroup ID | 9,10,11,12,13,14 |
Rotational speed | 1800 |
Shaft end | SAE shaft key |
Control device | DR remote controlled |
Sealing material | FKM (standard) |
Type of actuation | Variable pump, open circuit |
Working pressure | 280 |
G controller - standby pressure | 20.0 |
Min. displacement setting | Fix |
Test certificate language code | Without |
Version_2 | US version |
Max. displacement setting | Variabel |
Product family | A10VSO |
Classification society (external) | No |
Paint/base coat | without |
Max. flow | 127.8 |
Min. flow | 0.0 |
Direction of rotation | clockwise (w.view on shaft end) |
Connector for solenoids | Without |
Internal drain line | No |
Through drive | Without through drive |
Product (axial piston unit) | A10VS |
Version_1 | Standard |
Working ports | B flan l SAE, S flan l SAE |
Mounting flange | ISO 3019-1 (SAE), 2 hole |
Min. displacement | 0.0 |
Size (displacement) | 71 |
Max. displacement | 71.0 |
Weight | 35.2 |
Table of values
Size |
18 | 28 | 45 | 71 | 100 | 140 | 45 | 71 | 100 | 140 | |||
Version |
Standard | High speed | |||||||||||
Displacement |
Vg max |
cm³ |
18 | 28 | 45 | 71 | 100 | 140 | 45 | 71 | 100 | 140 | |
Nominal pressure |
pnom |
bar |
280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | |
Maximum pressure |
pmax |
bar |
350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | |
Maximum speed |
at Vg max |
nnom |
rpm |
3300 | 3000 | 2600 | 2200 | 2000 | 1800 | 3000 | 2550 | 2300 | 2050 |
Flow |
at Vg max and nnom |
qV nom |
l/min |
59 | 84 | 117 | 156 | 200 | 252 | 135 | 178 | 230 | 287 |
at Vg max and n = 1500 rpm |
qV 1500 |
l/min |
27 | 42 | 68 | 107 | 150 | 210 | |||||
Power |
at qV nom and pnom |
P |
kW |
30 | 39 | 55 | 73 | 93 | 118 | 63 | 83 | 107 | 134 |
at qV 1500 and pnom |
P 1500 |
kW |
12.6 | 20 | 32 | 50 | 70 | 98 | |||||
Torque |
at Vg max and pnom |
M |
Nm |
80 | 125 | 200 | 316 | 445 | 623 | 200 | 316 | 445 | 623 |
Weight (approx.) |
m |
kg |
12 | 15 | 21 | 33 | 45 | 60 | 21 | 33 | 45 | 60 |
