BOSCH REXROTH
R901565577


$1,464.62 USD
  • BOSCH REXROTH
  • Material:R901565577
  • Model:5-4WE10H5X/EG96N9K4/A06V

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

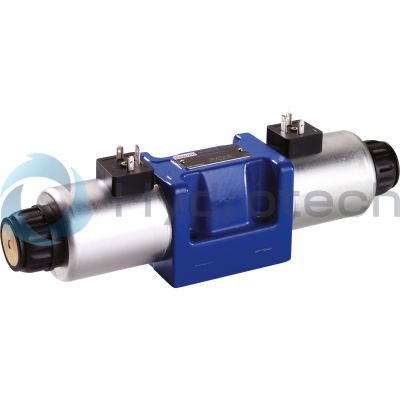

The Bosch Rexroth 5-4WE10H5X/EG96N9K4/A06V (R901565577) is a high-performance industrial hydraulic valve designed for reliable operation in various hydraulic systems. This direct-actuated spool valve features a spool symbol H, indicating its specific oil flow direction switching capability. With a maximum pressure capacity and a robust design, it ensures efficient control of fluid dynamics within heavy-duty applications. The valve is equipped with an electrical connection that conforms to EN standards, featuring a connector pole PE for secure and stable electrical interfacing. It falls under the product group ID 5, which signifies its categorization within Bosch Rexroth's portfolio of hydraulic valves. The 5-4WE10H5X/EG96N9K4/A06V has four ports and utilizes solenoid actuation for precise control, allowing for seamless integration into system designs that require such functionality. Designed with subplate mounting in mind, this valve adheres to both NFPA T3.5.1 R2 D03 and ISO connection diagrams, offering compatibility with standardized mounting patterns which simplifies installation and maintenance procedures. The supply voltage required for operation is 24 VDC, making it suitable for a wide range of industrial power supplies. This model also boasts an impressive max flow rate and comes with FKM seals that provide excellent chemical resistance and durability across various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, HETG, HFC, HEES, HEPG, HFDU, and HFDR. Its weight is optimized to contribute to the overall efficiency of the system without compromising on strength or performance. In summary, the Bosch Rexroth 5-4WE10H5X/EG96N9K4/A06V offers a reliable solution for controlling oil flow direction in complex hydraulic systems requiring precise actuation and robust performance under varying operational conditions.


Size 10, symbol H, electrical with solenoid, 96 V DC

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol

Unpacked Weight: 5.550 kg
Spool valve
Direct actuated
Size 10
Component series 5X
Maximum operating pressure 420 bar
Maximum flow 150 l/min
5-chamber version
Spool symbolSymbol H
Max. pressure350
Electrical connection descriptionConnector 3-pole (2 + PE) according to EN 175301-803
Productgroup ID9,10,11,12,13,14
Number of ports4
Type of actuationwith solenoid actuation
Size10
Electrical connectorConnector 3-pole (2 + PE)
Max. flow148
Type of connectionSubplate mounting
Connection diagram NFPANFPA T3.5.1 R2-2002 D05
Size_CETOPD05
Connection diagramISO 4401-05-04-0-05
Supply voltage96 VDC
Number of switching positions3
Weight5.550
SealsFKM
Hydraulic fluidHL,HLP,HLPD,HVLP,HVLPD,HETG,HFC,HEES,HEPG,HFDU,HFDR
