BOSCH REXROTH
R901542114


$454.61 USD
  • BOSCH REXROTH
  • Material:R901542114
  • Model:3WE6B6X/EG24N9DK23L/62

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

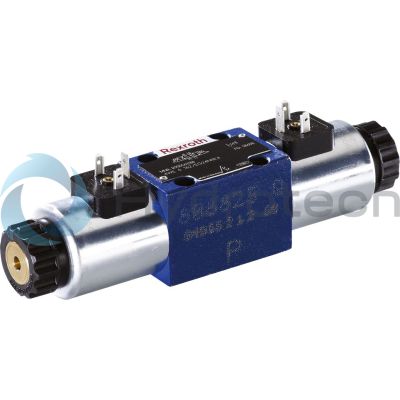

The Bosch Rexroth 3WE6B6X/EG24N9DK23L/62 (R901542114) is a high-performance industrial hydraulic valve designed for reliable switching of oil flow direction. This direct actuated spool valve features the spool symbol B, indicating its specific flow path configuration. It is capable of handling a maximum pressure with utmost efficiency and precision. The valve comes equipped with an electrical connection described as a connector pole according to ANSI B.M Brad Harrison MiniChange, inclusive of an LED indicator. This aids in easy troubleshooting and status indication during operation. The product belongs to a distinguished product group, identifiable by its unique ID number. Featuring multiple ports, the 3WE6B6X/EG24N9DK23L/62 valve operates through solenoid actuation, ensuring quick and responsive control of hydraulic systems. The solenoid size is tailored for optimal performance, while the electrical connector type is a Brad Harrison MiniChange, known for its reliability and easy maintenance. With a maximum flow capacity and designed in accordance with NFPA T3.5.1 R2 D03 Size CETOP 3 standards as well as ISO connection diagrams, this valve ensures compatibility with various hydraulic systems and ease of integration into existing setups. It operates on a supply voltage of 24 VDC and offers multiple switching positions for versatile application use. The valve's construction considers durability, with seals made from NBR suitable for various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC types. Its weight is meticulously calculated to contribute to the overall robustness without compromising on performance. In summary, the Bosch Rexroth 3WE6B6X/EG24N9DK23L/62 hydraulic valve is an essential component for any system requiring precise control over fluid direction within a range of industrial applications. Its design ensures reliability and ease-of-use in demanding operational conditions.


Size 6, symbol B, electrical with solenoid, 24 V DC

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.

Unpacked Weight: 2.3 kg
Direct actuated
Spool valve
Size 6
Maximum flow (DC) 80 l/min
Component series 6X
Maximum operating pressure 350 bar
Maximum flow (AC) 60 l/min
Spool symbolSymbol B
Max. pressure350
Electrical connection descriptionConnector, 3-pole according to ANSI/B93.55M-1981 (Brad Harrison Mini-Change), with LED
Productgroup ID9,10,11,12,13,14
Number of ports3
Type of actuationwith solenoid actuation
Size6
Max. flow80
Connection diagram NFPANFPA T3.5.1 R2-2002 D03
Size_CETOPD03
Connection diagramISO 4401-03-02-0-05
Supply voltage24 VDC
Number of switching positions2
Weight2.3
SealsNBR
Hydraulic fluidHL,HLP,HLPD,HVLP,HVLPD,HFC
Hydraulic fluidHL,HLP,HLPD,HVLP,HVLPD,HFC
