BOSCH REXROTH
R901518623

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

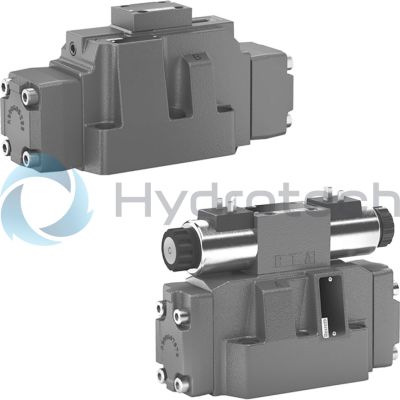

The Bosch Rexroth 4WEH16W7X/6EW110N9EDK25L/B10 (R901518623) is a high-performance industrial hydraulic valve designed for reliable switching of oil flow directions. This particular model features a spool valve with internal pilot oil supply and external pilot oil return, ensuring consistent operation. The spool symbol W indicates the specific flow path configuration of the valve. Equipped with an electrical connection compatible with a Brad Harrison MiniChange connector and an LED indicator, the valve conforms to ANSI B.M standards, providing clear visual feedback on its operational status. This solenoid-actuated valve facilitates precise control through its solenoid actuation mechanism, which is CE compliant and adheres to the Low-Voltage Directive EU as well as CSA approval according to CSA C. No.. The 4WEH16W7X/6EW110N9EDK25L/B10 is designed for subplate mounting and follows the NFPA T3.5.1 R2 D03 size CETOP standard connection diagram, as well as ISO 4401 dimensions. It operates with a supply voltage of 110 VAC and can handle a maximum pressure that ensures robust performance in various applications. This model features multiple ports for flexible connectivity options and has four switching positions to adapt to different operational requirements. With a weight of approximately 8 kg, it's built to be sturdy yet manageable in terms of installation. The valve's seals are made from NBR (nitrile butadiene rubber), making it suitable for use with a range of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC types. Its construction is aimed at providing long service life and reliable performance in demanding environments where precise hydraulic control is essential.
