BOSCH REXROTH
R901516228

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

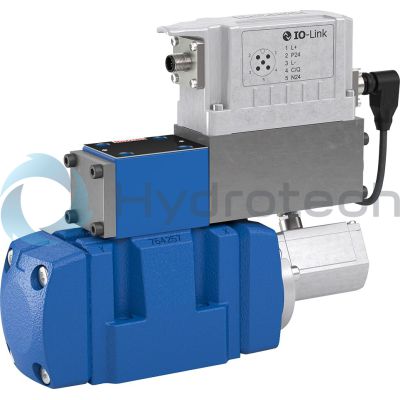

The Bosch Rexroth 4WRLE10V1-100L-4X/VPT/24F1 (R901516228) is a state-of-the-art industrial hydraulic valve designed for high-performance applications requiring precise control of oil flow direction. This spool valve is pilot-operated with a linear characteristic curve and features internal piston position feedback for enhanced accuracy. The model boasts an integrated electronics type of actuation, allowing for seamless electrical operation. Equipped with a Symbol V spool symbol, the valve operates at a maximum pressure level with an electrical connection described by Connector pole PE according to EN standards. It falls under the product group ID and has multiple ports for connectivity. The 4WRLE10V1-100L-4X/VPT/24F1 valve conforms to several EU directives and regulations, including CE for electromagnetic compatibility, RoHS, and REACH, ensuring its compliance with stringent environmental and safety standards. This particular model offers subplate mounting with a connection diagram that adheres to NFPA T.. R D SizeCETOP D norms and ISO standards for hydraulic systems. It operates on a supply voltage of 24 VDC and features numerous switching positions. The weight of the valve is specified by Bosch Rexroth, while it utilizes FKM seals known for their chemical resistance and durability. Connectivity options include an analog command value ranging from 0 to 10 mA, providing versatile integration into various hydraulic circuits. The valve is compatible with a wide array of hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, HFDR – covering both synthetic and mineral oil-based fluids. Overall, the Bosch Rexroth 4WRLE10V1-100L-4X/VPT/24F1 provides reliable performance in demanding industrial environments where precise hydraulic control is essential. Its robust construction and integrated electronics make it a vital component in complex hydraulic systems.
