BOSCH REXROTH
R901515345
$9,695.00 USD
- BOSCH REXROTH
- Material:R901515345
- Model:4WRLE10V60L-4X/MPT/24F1
Quantity in stock: 1
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

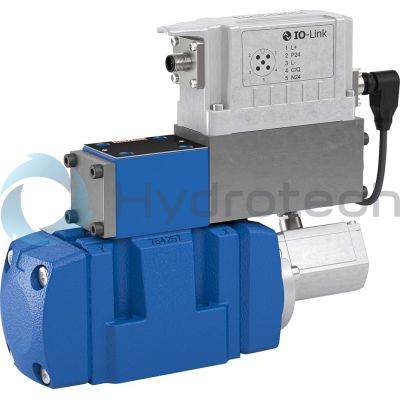

The Bosch Rexroth 4WRLE10V60L-4X/MPT/24F1 (R901515345) is a state-of-the-art industrial hydraulic valve designed for high-performance applications requiring reliable control of oil flow direction. This spool valve is pilot-operated with a characteristic linear curve and features internal piston position feedback for enhanced accuracy. It is equipped with integrated electronics, allowing for electrical actuation without the need for additional external control units. This model boasts a robust design with internal pilot oil supply and return, and conforms to CE standards for electromagnetic compatibility, as well as the EU's RoHS Directive and REACH Regulation EC no. The 4WRLE10V60L-4X/MPT/24F1 valve has a maximum pressure capacity and operates on a supply voltage of 24 VDC, ensuring compatibility with a wide range of industrial systems. With its subplate mounting type connection conforming to CETOP D standards and an ISO connection diagram, this valve ensures easy installation and maintenance. It also features an NFPA T.. R D SizeCETOP D nominal flow diagram for user reference. The number of ports and switching positions are designed to meet diverse system requirements, while the maximum flow rate supports efficient operation in various conditions. The electrical connection is facilitated via a Connector pole PE according to EN standards, providing secure and reliable connectivity. The analog command value input ranging from 4 mA to 20 mA allows precise control over the valve's operation. Suitable hydraulic fluids include HL, HLP, HLPD, HVLP, HVLPD, and HFC types. In summary, the Bosch Rexroth 4WRLE10V60L-4X/MPT/24F1 hydraulic valve is an advanced component designed for precise control in complex hydraulic systems, offering ease of integration, high accuracy, and compliance with multiple international standards.
The Bosch Rexroth 4WRLE10V60L-4X/MPT/24F1 (R901515345) is a state-of-the-art industrial hydraulic valve designed for high-performance applications requiring reliable control of oil flow direction. This spool valve is pilot-operated with a characteristic linear curve and features internal piston position feedback for enhanced accuracy. It is equipped with integrated electronics, allowing for electrical actuation without the need for additional external control units. This model boasts a robust design with internal pilot oil supply and return, and conforms to CE standards for electromagnetic compatibility, as well as the EU's RoHS Directive and REACH Regulation EC no. The 4WRLE10V60L-4X/MPT/24F1 valve has a maximum pressure capacity and operates on a supply voltage of 24 VDC, ensuring compatibility with a wide range of industrial systems. With its subplate mounting type connection conforming to CETOP D standards and an ISO connection diagram, this valve ensures easy installation and maintenance. It also features an NFPA T.. R D SizeCETOP D nominal flow diagram for user reference. The number of ports and switching positions are designed to meet diverse system requirements, while the maximum flow rate supports efficient operation in various conditions. The electrical connection is facilitated via a Connector pole PE according to EN standards, providing secure and reliable connectivity. The analog command value input ranging from 4 mA to 20 mA allows precise control over the valve's operation. Suitable hydraulic fluids include HL, HLP, HLPD, HVLP, HVLPD, and HFC types. In summary, the Bosch Rexroth 4WRLE10V60L-4X/MPT/24F1 hydraulic valve is an advanced component designed for precise control in complex hydraulic systems, offering ease of integration, high accuracy, and compliance with multiple international standards.
Size 10, symbol V, electrical with integrated electronics, 24 V DC
Industrial hydraulic valve in the high performance range; reliable control of the oil flow direction according to the hydraulic symbol; high accuracy through internal piston position feedback
Unpacked Weight: 9.100 kg
Internal pilot oil supply, internal pilot oil return |
Spool valve |
Pilot-operated |
Linear |
Digital interface, IO-Link for I4.0 |
Maximum flow 4700 l/min |
Size 10 … 35 |
Component series 4X |
Maximum operating pressure 350 bar |
Rated flow 60 … 1500 l/min |
Data Sheet | Download Data Sheet |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Spool symbol | Symbol V |
Max. pressure | 350 |
Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
Productgroup ID | 9,10,11,12,13,14 |
Number of ports | 4 |
Type of actuation | Electrical with integrated electronics |
Conformity description | CE – electromagnetic compatibility 2014/30/EU RoHS Directive 2011/65/EU REACH Regulation (EC) no. 1907/2006 |
Size | 10 |
Electrical connector | Connector 7-pole (6 + PE) |
Max. flow | 300 |
Type of connection | Subplate mounting |
Connection diagram NFPA | NFPA T3.5.1 R2-2002 D05 |
Size_CETOP | D05 |
Nominal flow | 60 |
Connection diagram | ISO 4401-05-05-0-05 |
Supply voltage | 24 VDC |
Number of switching positions | 3 |
Weight | 9.100 |
Seals | NBR |
Connectivity | Analog, command value 4 … 20 mA |
Hydraulic fluid | HL,HLP,HFC (Fuchs: Hydrotherm 46M, Renosafe 500; Petrofer: Ultra Safe 620; Houghton: Safe 620; Union: Carbide HP5046) |
Conformity | CE,RoHS |
Conformity | CE |
