BOSCH REXROTH
R901513876


$1,452.53 USD
  • BOSCH REXROTH
  • Material:R901513876
  • Model:4WEH22R7X/6EW110N9TDAL

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

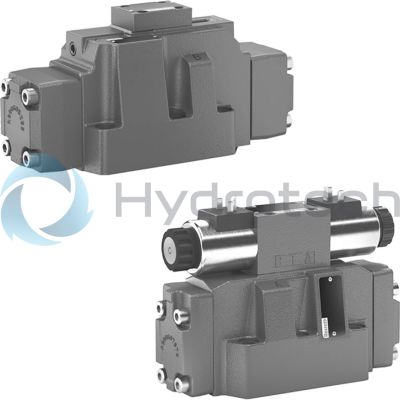

The Bosch Rexroth 4WEH22R7X/6EW110N9TDAL (R901513876) is a high-performance industrial hydraulic valve designed for reliable operation and precise control of oil flow direction. This spool valve, with a symbol R, is pilot-operated and features external pilot oil supply and internal pilot oil return. It has been engineered to handle a maximum pressure with robustness and durability in mind. This model boasts an electrical connection via a cable gland with threaded NPT connection, which includes an LED for visual indication of operation. The product falls under the product group ID and has multiple ports for comprehensive hydraulic system integration. The solenoid-actuated controls offer responsive actuation, ensuring the valve operates efficiently within its specified parameters. Conforming to CE Low-Voltage Directive EU and CSA approval according to CSA C. No., this valve meets stringent safety and quality standards. It is designed for subplate mounting with a connection diagram compliant with NFPA T3.5.1 R2 D03 Size CETOP and ISO standards, ensuring compatibility with a wide range of equipment. The 4WEH22R7X/6EW110N9TDAL operates on a supply voltage of 110 VAC and features multiple switching positions for versatile application use. With its considerable weight, it promises stability and resilience in various operating conditions. The NBR seals are compatible with hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC types. In summary, this Bosch Rexroth valve is designed for those who require dependable performance in controlling the direction of oil flow in complex hydraulic systems. Its electrical solenoid actuation combined with its robust construction makes it an essential component for demanding industrial applications where precision and reliability are paramount.


Size 22, symbol R, electrical with solenoid, 110-120 V AC

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.

Unpacked Weight: 13.075 kg
External pilot oil supply, internal pilot oil return
Spool valve
Pilot-operated
Size 10 … 32
Maximum operating pressure 350 bar
Maximum flow 1100 l/min
Component series 4X, 7X, 6X
Spool symbolSymbol R
Max. pressure280
Electrical connection descriptionCable gland, threaded connection 1/2"-14 NPT, with LED
Productgroup ID9,10,11,12,13,14
Number of ports4
Type of actuationwith solenoid actuation
Conformity descriptionCE – Low-Voltage Directive 2014/35/EU
CSA approval according to CSA C22.2 No. 139-1982
Size22
Electrical connectorCable gland
Max. flow450
Type of connectionSubplate mounting
Connection diagram NFPANFPA T3.5.1 R2-2002 D08
Size_CETOP0
Connection diagramISO 4401-08-08-0-05
Supply voltage110…120 VAC
Number of switching positions3
Weight13.075
SealsNBR
Hydraulic fluidHL,HLP,HLPD,HVLP,HVLPD,HFC
ConformityCE
ConformityCE
