BOSCH REXROTH
R901502977
$603.79 USD
- BOSCH REXROTH
- Material:R901502977
- Model:4WE6G6X/EG24N9DK24L
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

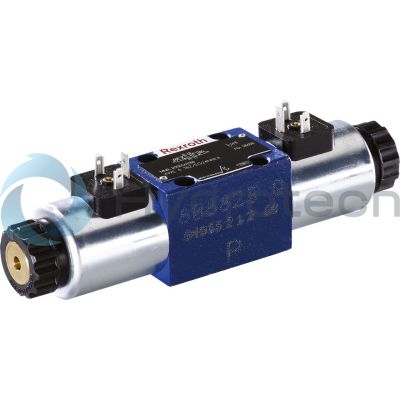

The Bosch Rexroth 4WE6G6X/EG24N9DK24L (R901502977) is a high-performance industrial hydraulic valve designed for reliable switching of oil flow direction. This direct actuated spool valve is equipped with a spool symbol G and operates under a maximum pressure that ensures efficient performance in demanding applications. The electrical connection is facilitated by a connector pole, M12x1 according to EN 175301-803, which includes an LED for visual indication of operation. This model features a size 6 design conforming to CETOP standards, making it compatible with widespread industry norms. The connection diagram follows the NFPA T3.5.1 R2 D03 and ISO 4401 patterns, ensuring easy integration into various hydraulic systems. With its solenoid actuation type, the Bosch Rexroth valve provides precise control over the flow with two switching positions available for versatile application use. The valve can handle a maximum flow rate that suits various operational requirements and is designed for use with several types of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC. The robust construction includes NBR seals that offer durability and resistance against common fluid types. Weighing only .9 kg, this compact yet robust valve is suitable for various industrial applications where space and weight are considerations without compromising on power or reliability. Its supply voltage requirement is set at 24 VDC, making it compatible with standard industrial power supplies. Overall, the Bosch Rexroth 4WE6G6X/EG24N9DK24L offers dependable performance in controlling hydraulic flow within complex systems where quality and precision are paramount.
The Bosch Rexroth 4WE6G6X/EG24N9DK24L (R901502977) is a high-performance industrial hydraulic valve designed for reliable switching of oil flow direction. This direct actuated spool valve is equipped with a spool symbol G and operates under a maximum pressure that ensures efficient performance in demanding applications. The electrical connection is facilitated by a connector pole, M12x1 according to EN 175301-803, which includes an LED for visual indication of operation. This model features a size 6 design conforming to CETOP standards, making it compatible with widespread industry norms. The connection diagram follows the NFPA T3.5.1 R2 D03 and ISO 4401 patterns, ensuring easy integration into various hydraulic systems. With its solenoid actuation type, the Bosch Rexroth valve provides precise control over the flow with two switching positions available for versatile application use. The valve can handle a maximum flow rate that suits various operational requirements and is designed for use with several types of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC. The robust construction includes NBR seals that offer durability and resistance against common fluid types. Weighing only .9 kg, this compact yet robust valve is suitable for various industrial applications where space and weight are considerations without compromising on power or reliability. Its supply voltage requirement is set at 24 VDC, making it compatible with standard industrial power supplies. Overall, the Bosch Rexroth 4WE6G6X/EG24N9DK24L offers dependable performance in controlling hydraulic flow within complex systems where quality and precision are paramount.
Size 6, symbol G, electrical with solenoid, 24 V DC
Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.
Unpacked Weight: 2.053 kg
Direct actuated |
Spool valve |
Maximum operating pressure 350 bar |
Maximum flow (AC) 60 l/min |
Size 6 |
Maximum flow (DC) 80 l/min |
Component series 6X |
Data Sheet | Download Data Sheet |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Spool symbol | Symbol G |
Max. pressure | 350 |
Electrical connection description | Connector, 4-pole, M12 x 1 according to EN 61076-2-101, with LED |
Productgroup ID | 9,10,11,12,13,14 |
Number of ports | 4 |
Type of actuation | with solenoid actuation |
Size | 6 |
Max. flow | 80 |
Connection diagram NFPA | NFPA T3.5.1 R2-2002 D03 |
Size_CETOP | D03 |
Connection diagram | ISO 4401-03-02-0-05 |
Supply voltage | 24 VDC |
Number of switching positions | 3 |
Weight | 2.053 |
Seals | NBR |
Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
