BOSCH REXROTH
R901498840

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

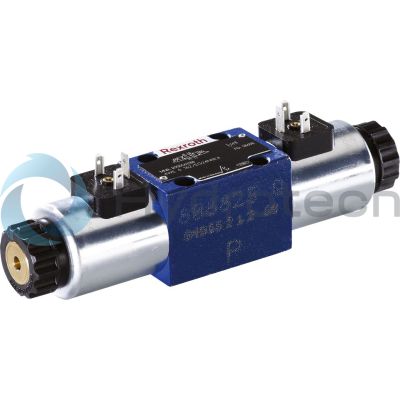

The Bosch Rexroth 4WE6M6X/EW100N9DL (R901498840) is a high-performance industrial hydraulic valve designed for reliable switching of oil flow direction. This direct-actuated spool valve, featuring the symbol M spool, is engineered to handle a maximum pressure with efficiency and precision. It comes equipped with an electrical connection that includes a cable gland and terminal area of mm², complemented by an LED indicator for easy monitoring. This valve is part of Bosch Rexroth's product group ID and offers a sturdy number of ports for versatile hydraulic circuit integration. The type of actuation is managed by solenoid actuation, ensuring responsive control over the valve's operations. With conformity to CE and Low Voltage Directive EU standards, as well as CSA approval according to CSA C. No., this valve assures compliance with rigorous safety and quality requirements. The size specification adheres to CETOP D standards, while the connection diagram follows both NFPA T3.5.1 R2-2002 D03 and ISO 4401 patterns. The supply voltage required for operation is 110 VAC at 50 Hz. Users can benefit from its two switching positions which allow for flexible application in various hydraulic systems. With a weight of approximately 1.7 kg, the 4WE6M6X/EW100N9DL valve maintains a compact yet robust profile suitable for various industrial applications. It utilizes NBR seals and is compatible with multiple types of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC types. Overall, this Bosch Rexroth spool valve stands out for its reliability, durability, and adherence to industry standards in electrical and hydraulic system components.
