BOSCH REXROTH
R901497657

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

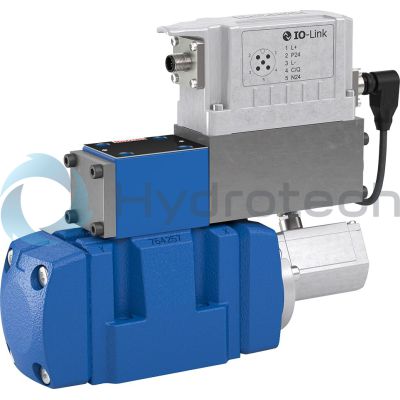

The Bosch Rexroth 4WRLE10E100LJ-4X/MPT/24A1 (R901497657) is a high-performance industrial hydraulic valve designed for reliable control of oil flow direction, with the capability to handle complex applications requiring precise actuation. This spool valve is pilot-operated, featuring a linear characteristic curve and an internal piston position feedback that ensures high accuracy in performance. It is equipped with integrated electronics for electrical actuation, making it suitable for systems that demand quick and responsive control. The 4WRLE10E100LJ-4X/MPT/24A1 valve conforms to CE standards for electromagnetic compatibility, as well as the EU RoHS Directive and REACH Regulation EC, ensuring its compliance with stringent environmental and safety standards. The valve has a size E symbol, indicating its size and configuration according to industry standards. It supports a maximum pressure with an electrical connection described by a Connector pole PE according to EN. Designed for subplate mounting, this valve features a connection diagram that adheres to NFPA T..R D Size CETOP D norms as well as ISO standards for nominal flow. The supply voltage required for operation is 24 VDC, and the unit has multiple switching positions. Weighing in at . kg, it is constructed with NBR seals which are compatible with hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. For connectivity purposes, the 4WRLE10E100LJ-4X/MPT/24A1 utilizes analog command value input ranging from V. Its robust design and integrated electronic controls make it an essential component in hydraulic systems that require precise movement and dependable performance over time.
