BOSCH REXROTH
R901496715

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

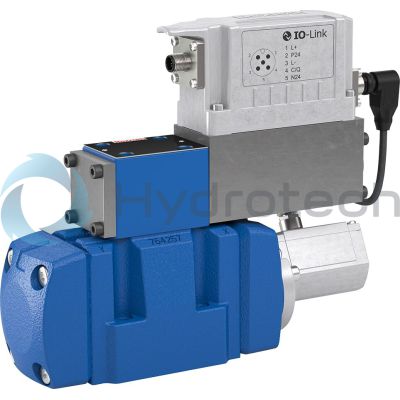

The Bosch Rexroth 4WRLE16V1-250L-4X/VPT/24A1 (R901496715) is a state-of-the-art industrial hydraulic valve designed for high-performance applications requiring precise control of oil flow direction. This spool valve is pilot-operated with a linear characteristic curve and features internal piston position feedback for enhanced accuracy. It is equipped with integrated electronics, allowing for electrical actuation without the need for additional external control units. The valve conforms to CE standards for electromagnetic compatibility, as well as EU directives such as RoHS and REACH regulations. With its symbol V spool configuration, the 4WRLE16V1-250L-4X/VPT/24A1 valve can withstand a maximum pressure and offers reliable internal pilot oil supply and return. The electrical connection is facilitated through a Connector pole PE according to EN standards, ensuring secure and compliant connectivity. This product belongs to the product group ID specified by Bosch Rexroth. Designed for subplate mounting, the valve follows NFPA T.. R D SizeCETOP D and ISO connection diagrams, making it compatible with standard mounting interfaces. The nominal flow rate is maintained across various conditions, while the supply voltage required for operation is 24 VDC. This model features multiple switching positions and weighs in at a specified mass. Seals made of FKM material ensure durability against various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR types. Connectivity options include an analog command value input of 0-10 V for seamless integration into existing systems. Overall, the Bosch Rexroth 4WRLE16V1-250L-4X/VPT/24A1 hydraulic valve offers robust performance and versatile application possibilities in demanding industrial environments where precision and reliability are paramount.
