BOSCH REXROTH
R901487022
$8,541.79 USD
- BOSCH REXROTH
- Material:R901487022
- Model:4WRPEH10C3B100L-3X/M/24L1
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

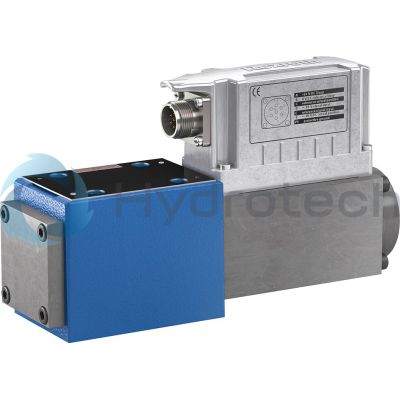

The Bosch Rexroth 4WRPEH10C3B100L-3X/M/24 (R901487022) is a high-performance industrial hydraulic valve designed for reliable and rapid control of oil flow direction, consistent with hydraulic symbol C. This direct-actuated spool valve is equipped with integrated electronics, enabling precise operation due to internal piston position feedback. It is suitable for subplate mounting and conforms to CE standards for electromagnetic compatibility within the EU. The 4WRPEH10C3B100L-3X/M/24 features a maximum pressure capacity that ensures robust performance in demanding applications. Its electrical connection is facilitated by a connector pole, Mx, A-coded according to EN standards. The product belongs to the CETOP D03 size category and has a nominal flow rate that complements its design. This model boasts an electrical actuation type with integrated electronics, ensuring efficient signal processing and reduced wiring complexity. The connectivity options include IO-Link, which allows for easy integration into automated systems. The valve's construction includes NBR seals and it is compatible with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. With a weight of . kg (exact weight unspecified), the 4WRPEH10C3B100L-3X/M/24 valve maintains a compact footprint while delivering powerful performance. Its design adheres to international standards including NFPA T..R.D Size C and ISO connection diagrams. The supply voltage required for operation is VDC. Overall, this Bosch Rexroth hydraulic valve stands out due to its precise control capabilities and robust construction suited for various industrial applications requiring dependable hydraulic flow management.
The Bosch Rexroth 4WRPEH10C3B100L-3X/M/24 (R901487022) is a high-performance industrial hydraulic valve designed for reliable and rapid control of oil flow direction, consistent with hydraulic symbol C. This direct-actuated spool valve is equipped with integrated electronics, enabling precise operation due to internal piston position feedback. It is suitable for subplate mounting and conforms to CE standards for electromagnetic compatibility within the EU. The 4WRPEH10C3B100L-3X/M/24 features a maximum pressure capacity that ensures robust performance in demanding applications. Its electrical connection is facilitated by a connector pole, Mx, A-coded according to EN standards. The product belongs to the CETOP D03 size category and has a nominal flow rate that complements its design. This model boasts an electrical actuation type with integrated electronics, ensuring efficient signal processing and reduced wiring complexity. The connectivity options include IO-Link, which allows for easy integration into automated systems. The valve's construction includes NBR seals and it is compatible with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. With a weight of . kg (exact weight unspecified), the 4WRPEH10C3B100L-3X/M/24 valve maintains a compact footprint while delivering powerful performance. Its design adheres to international standards including NFPA T..R.D Size C and ISO connection diagrams. The supply voltage required for operation is VDC. Overall, this Bosch Rexroth hydraulic valve stands out due to its precise control capabilities and robust construction suited for various industrial applications requiring dependable hydraulic flow management.
Size 10, symbol C3, integrated electronics, 24 V DC
Industrial hydraulic valve in a high performance range. Reliable and quick control of the direction of the oil flow according to hydraulic symbol. High accuracy thanks to internal piston position feedback
Unpacked Weight: 6.76 kg
Spool valve |
Direct actuated |
Maximum operating pressure 350 bar |
Size 10 |
Digital interface, IO-Link for I4.0 |
Component series 3X |
Rated flow 50 … 100 l/min |
Data Sheet | Download Data Sheet |
3D CAD | Download 3D CAD |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Spool symbol | Symbol C3 |
Max. pressure | 350 |
Electrical connection description | Connector, 5-pole, M12 x 1, coding A according to EN 61076-2-101 |
Productgroup ID | 9,10,11,12,13,14 |
Number of ports | 4 |
Type of actuation | Electrical with integrated electronics |
Conformity description | CE – electromagnetic compatibility 2014/30/EU |
Size | 10 |
Type of connection | Subplate mounting |
Connection diagram NFPA | NFPA T3.5.1 R2-2002 D05 |
Size_CETOP | D05 |
Nominal flow | 100 |
Connection diagram | ISO 4401-05-04-0-05 |
Supply voltage | 24 VDC |
Number of switching positions | 4 |
Weight | 6.76 |
Seals | NBR |
Connectivity | IO-Link |
Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
Conformity | CE,RoHS |
Conformity | CE |
