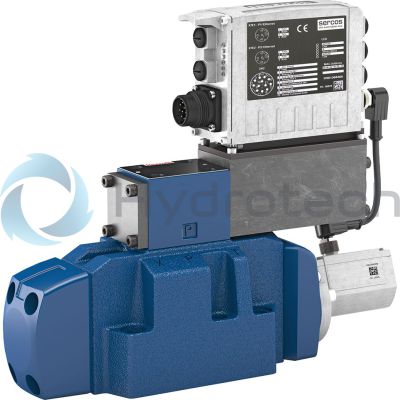

4WRLD16W6-200LJ-4X/MPT/24ND6T
R901486108


$14,772.00
  • BOSCH REXROTH
  • Material:R901486108
  • Model:4WRLD16W6-200LJ-4X/MPT/24ND6T

Due to extremely high demand, please call 800-887-4183 for availability



Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Industrial hydraulic valve in the high performance range; reliable control of the oil flow direction according to the hydraulic symbol; high accuracy through internal piston position feedback.

Unpacked Weight: 12.660 kg

General information

The pilot-operated IAC Multi Ethernet valve (Integrated Axis Controller based on directional control valves) is a digital directional control valve with integrated axis controller and the following functionalities:

Position control Pressure/force control Closed-loop speed control Substitutional closed-loop control (position - pressure/force) Substitutional control (flow - pressure/force) pQ function (flow-controlled)



Among others, the following operating modes are possible:

Valve direct control Drive-controlled position control Drive-controlled positioning Positioning block operation The command values are preset via the Ethernet interface (X7E1 or X7E2) or, alternatively, via the analog/digital interface (XH2) The feedback information of the actual value signals to the superior control system is provided optionally either via the Ethernet interface (X7E1 or X7E2) or the analog/digital interface (XH2) The controller parameters are set via the Ethernet interface (X7E1 or X7E2)



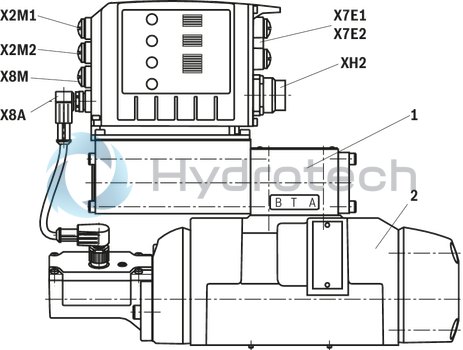

Set-up

The directional control valve with IAC Multi Ethernet electronics mainly consists of:

Pilot control valve (1) with control spool and sleeve in servo quality Main stage (2) with centering springs and position feedback Integrated digital axis controller (3) with: analog/digital interface (XH2) Ethernet interfaces (X7E1, X7E2) analog sensor interfaces (X2M1, X2M2) digital sensor interface (X8M) Interface for the position transducer of the main stage (X8A) technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Function (symbol V, V1- and Q3)

When the control solenoid of the pilot control valve is de-energized, its spring-operated control spool is in the “fail safe” position. The control spool of the main valve is in the spring-centered offset position at approx. 6 % of the

stroke in direction P→B/A→T.

The integrated electronics (OBE) compare the specified command value to the position actual value of the control spool of the main stage. In case of a control deviation, the control solenoid of the pilot control valve is activated and its control spool is adjusted.

The flow which is activated via the control cross-sections at the pilot control valve leads to an adjustment of the control spool of the main valve. The stroke/control cross-section of the main valve is regulated proportionally to the command value. In case of a command value presetting of 0 %, the electronics adjust the control spool of the main valve to central position.

The pilot oil supply in the pilot control valve is either internal via port P or external via port X. The feedback can be internal via port T or external via port Y to the tank.



Switching off the release (symbol V and V1-)

If the supply voltage fails or in case of cable break, the integrated electronics will de-energize the control solenoid, the pilot control spool will move to the fail-safe position and will unload the pilot oil chambers of the main valve. Operated by the spring, the main valve control spool will move to the offset position (approx. 6 % P→B/A→T).



Function (symbol E. and W.)

When the control solenoid of the pilot control valve is de-energized, its spring-operated control spool is in the “fail safe” position. The control spool of the main valve is in spring-centered central position.

The integrated electronics (OBE) compare the specified command value to the position actual value of the control spool of the main stage. In case of a control deviation, the control solenoid of the pilot control valve is activated and its control spool is adjusted.

The flow which is activated via the control cross-sections at the pilot control valve leads to an adjustment of the control spool of the main valve. The stroke/control cross-section of the main valve is regulated proportionally to the command value.

The pilot oil supply in the pilot control valve is either internal via port P or external via port X. The feedback can be internal via port T or external via port Y to the tank.



Switching off the release (symbol E. and W.)

If the supply voltage fails or in case of cable break, the integrated electronics will de-energize the control solenoid, the pilot control spool will move to the fail-safe position and will unload the pilot oil chambers of the main valve. Operated by the spring, the main valve control spool will move to the central position.



Monitoring

The digital control electronics enable comprehensive monitoring functions/error detection including:

Undervoltage Communication error Cable break for analog sensor inputs and digital position measurement system Short-circuit monitoring for analog/digital outputs Monitoring of the microcontroller (watchdog) Temperature of the integrated electronics



IndraWorks DS PC program

To implement the project planning task and to parameterize the IAC Multi Ethernet valves, the user may use the IndraWorks DS engineering tool:

Project planning Parameterization Commissioning Diagnosis Comfortable management of all data on a PC PC operating systems: Windows XP (SP3), Windows 7-10



Notes:

Symbol V and V1-:
Pilot-operated 4/3 directional control valves are only functional in the active control loop and do not have a locking basic position when deactivated. Consequently "external isolator valves" are required in many applications and must be taken into account regarding the switch-on/switch-off order.
While the electrical supply voltage is being switched off, the drive may be accelerated for a short time in functional direction P→B. Symbol E. and W.:
Pilot-operated 4/3-directional control valves with positive overlap are functional in controlled or regulated axes. The overlap in the de-energized state is approx. 20 % of the control spool stroke.
While the release is being switched off, the drive may be accelerated for a short time in functional direction P→B. (For further details, please refer to operating instructions 29391-B)

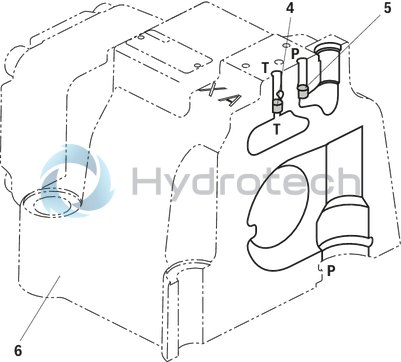

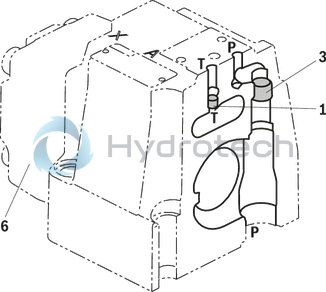

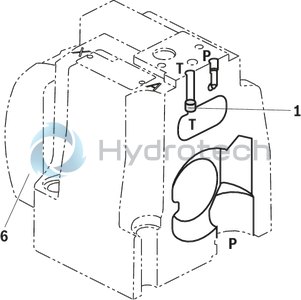

Pilot oil supply (schematic illustration)

Size 10

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Size 16

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Size 25

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Size 27

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Size 35

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

1

Plug screw M6 according to DIN 906, wrench size 3 - Pilot oil return

2

Plug screw M6 according to DIN 906, wrench size 3 - Pilot oil supply

3

Plug screw M12x1.5 according to DIN 906, SW6 - Pilot oil supply

4

Plug screw 1/16-27 NPTF, wrench size 4 - Pilot oil return

5

Plug screw 1/16-27 NPTF, wrench size 4 - Pilot oil supply

6

Housing cover main stage (position transducer side)

Pilot oil supply

External

Internal

2, 3, 5 closed

2, 3, 5 open

Pilot oil return

External

Internal

1, 4 closed

1, 4 open

Version “XY"

External pilot oil supply, external pilot oil return

In this version, the pilot oil is supplied from a separate control circuit (external). The pilot oil return is not directed into channel T of the main valve, but is separately directed to the tank via port Y (external).



Version “PY”

Internal pilot oil supply, external pilot oil return

With this version, the pilot oil is supplied from channel P of the main valve (internally). The pilot oil return is not directed into channel T of the main valve, but is separately directed to the tank via port Y (external). In the subplate, port X is to be closed.



Version “PT”

Internal pilot oil supply; internal pilot oil return

With this version, the pilot oil is supplied from channel P of the main valve (internally). The pilot oil is directly returned to channel T of the main valve (internally). In the subplate, ports X and Y are to be closed.



Version “XT”

External pilot oil supply, internal pilot oil return

In this version, the pilot oil is supplied from a separate control circuit (external). The pilot oil is directly returned to channel T of the main valve (internally). In the subplate, port Y is to be closed.

Spool valve
Pilot-operated
Internal pilot oil supply, internal pilot oil return
Linear
Component series 4X
Maximum flow 4700 l/min
Size 10 … 35
Maximum operating pressure 350 bar
Rated flow 60 … 1500 l/min
Spool symbolSymbol W6
Max. pressure350
Electrical connection descriptionConnector 12-pole (11 + PE) according to EN 175201-804
Productgroup ID9,10,11,12,13,14
Number of ports4
Type of actuationElectrical with integrated electronics
Conformity descriptionCE – electromagnetic compatibility 2014/30/EU
RoHS Directive 2011/65/EU
Size16
Electrical connectorConnector 12-pole (11 + PE)
Max. flow800
Type of connectionSubplate mounting
Connection diagram NFPANFPA T3.5.1 R2-2002 D07
Size_CETOPD07
Nominal flow250
Connection diagramISO 4401-07-07-0-05
Supply voltage24 VDC
Number of switching positions3
Weight12.660
SealsNBR
ConnectivityDigital, PROFINET RT
Hydraulic fluidHL,HLP,HLPD,HVLP,HVLPD,HFC
ConformityCE,RoHS

01

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

4

WRL

D

4X

/

/

24

D6

*

01

4 main ports

4

02

High-response directional valve, pilot operated

WRL

03

With integrated digital axis controller

D

04

Size 10

10

Size 16

16

Size 25

25

Size 27

27

Size 35

35

05

Symbols; for the possible version, see "Symbols/Circuit diagrams"

Rated flow (Δp = 5 bar)

06

Size 10

60 l/min (only symbol E, E1-, W6-, W8-, V and V1-)

60

100 l/min

100

Size 16

200 l/min (only symbol W6- and W8-)

200

250 l/min (only symbol E, E1-, V, V1- and Q3-)

250

Size 25

350 l/min (only symbol W6- and W8-)

350 1)

400 l/min (only symbol E, E1-, V, V1- and Q3-)

400

Size 27

430 l/min (only symbol W6- and W8-)

430 1)

600 l/min (only symbol E, E1-, V, V1- and Q3-)

600

Size 35

1000 l/min (only symbol E, E1-, V and V1-)

1000

1200 l/min (only symbol W6- and W8-)

1200 1)

1500 l/min (only symbol E, E1-, V, V1- and Q3-)

1500

Flow characteristic

07

Linear

L

Linear with fine control range (only NG10; other sizes on request)

P

Progressive with linear fine control range (only symbol Q3-)

M

08

Without overlap jump (only symbols V, V1- and Q3-)

no code

With overlap jump (opening point 5% with covered valve; only symbols E, E1-, W6-, W8-)

J

09

Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions)

4X

Seal material

10

NBR seals

M

FKM seals

V

Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)

Pilot oil flow

11

Pilot oil supply internal, pilot oil return internal

PT

Internal pilot oil supply, external pilot oil return

PY

External pilot oil supply, internal pilot oil return

XT

External pilot oil supply, external pilot oil return

XY

12

Supply voltage 24 V

24

Ethernet interface

13

EtherNet/IP

E

PROFINET RT

N

Sercos

S

EtherCAT (Profil CANopen)

T

POWERLINK (CANopen profile)

W

VARAN

V

Electrical interface

14

± 10 VDC or 4 ... 20 mA

D6

Sensor interfaces

15

0 ... 10 V / 4 ... 20 mA / EnDat 2.2

S

0 ... 10 V / 4 ... 20 mA / SSI

T

0 ... 10 V / 4 ... 20 mA / 1Vpp

U

16

Further details in the plain text

*

1) Higher rated flow upon request

For applications outside these parameters, please consult us!

general

Type

4WRLD

Size

10 16 25 27 35

Component series

4X

Installation position

any Any any

Earth

kg

9 12 19 21 80

Ambient temperature range

°C

-20 … +60

Maximum storage time

1 year (if the storage conditions are observed; refer to the operating instructions 07600-B)

Sine test according to DIN EN 60068-2-6

10 ... 2000 Hz / maximum 10 g / 10 cycles / 3 axes

Noise test according to DIN EN 60068-2-64

20 ... 2000 Hz / 10 gRMS / 30 g peak / 30 min / 3 axes

Transport shock according to DIN EN 60068-2-27

15 g / 11 ms / 3 axes

Maximum relative humidity 1)

%

95

Maximum surface temperature 2)

°C

120

MTTFD values according to EN ISO 13849

Hydraulic (category 1)

Years

75

Hydraulic and electric (category 3 and 4, without power supply unit)

Years

70
1) No condensation
2) Individual operation

hydraulic

Type

4WRLD

Size

10 16 25 27 35

Maximum operating pressure

Port P

External pilot oil supply

bar

350 270 350

Port A

bar

350 270 350

Port B

bar

350 270 350

Port P

Internal pilot oil supply

bar

280 270 280

Port A

bar

280 270 280

Port B

bar

280 270 280

Port T

bar

250 210 250

Port Y

bar

250 210 250

Port X

bar

280 270 280

Minimum pilot pressure

Pilot control valve

bar

10

Maximum flow

l/min

300 800 1250 1850 4700

Nominal flow 1)

l/min

60
100
200
250
350
400
430
600
1000
1200
1500

Maximum leakage flow

Symbol E, E1-

Main valve 2)

l/min

0.6 0.13 0.17 0.61

Main valve + pilot control valve 2)

l/min

0.14 0.28 0.42 1.01

Symbol W6-, W8-

Main valve 2)

l/min

0.12 0.26 0.35 1.23

Main valve + pilot control valve

l/min

0.2 0.41 < 0.6 1.63

Maximum zero flow

Symbol V, V1-

Main valve

l/min

1.7 2.3 2.8 3.3 7.2

Main valve + pilot control valve 2)

l/min

1.85 2.6 3.2 3.7 7.65

Pilot flow

Symbol E 3)

l/min

2.4 3.5 7.5 23

Symbol W 3)

l/min

2.4 3.5 7.5 23

Symbol V

l/min

4.5 3) 11.5 3) 22 29

Symbol Q3- 3)

l/min

4.5 11.5 22 29

Hydraulic fluid

see table "Hydraulic fluid"

Hydraulic fluid temperature range

°C

-20 … +70

Viscosity range

Maximum admissible

mm²/s

20 … 380

Recommended

mm²/s

30 … 45

Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 4)

Class 18/16/13 according to ISO 4406 (c)

Hysteresis

%

< 0.1 ≤ 0.1

Response sensitivity

%

< 0.05

Range of inversion

%

< 0.08

Manufacturing tolerance

%

≤ 10

Switch-off behavior 5)

Symbol E, E1-, W6-, W8-

Pilot control valve in “fail-safe” position, main valve moves to spring-centered, overlapped central position

Symbol V, V1-

Pilot control valve in “fail-safe” position, main valve moves to spring-centered “offset position” (1 ... 6%, P-B/A-T)

Symbol Q3-

Pilot control valve in “fail-safe” position, main valve moves to spring-centered "offset position" (P blocked, A/B to port T open)

Temperature drift 6)

%/10° C

< 0.25

Actuating time 7)

0 ... 100 %

Symbol E, E1-, W6-, W8-

ms

40 60 90
1) With Δp = 5 bar/control edge; flow with deviating Δp see formula.
2) Inlet pressure 100 bar
3) At port X and Y with stepped input signal from 0 to 100 % (pilot pressure 100 bar)
4) The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.
5) after electric shut-off
6) Temperature range 20 °C ... 80 °C
7) At X = 100 bar

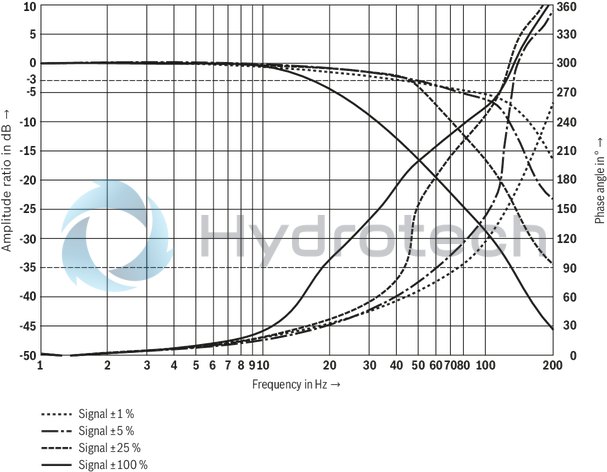

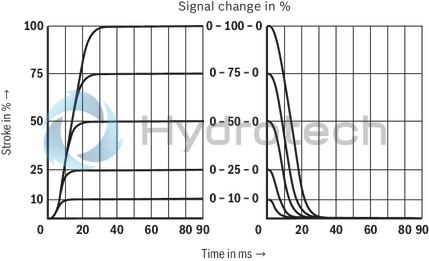

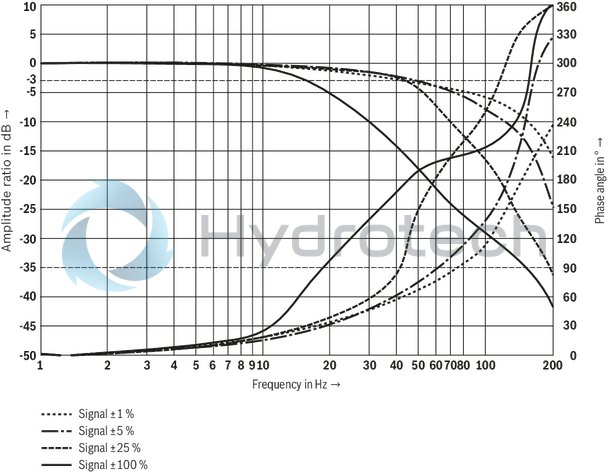

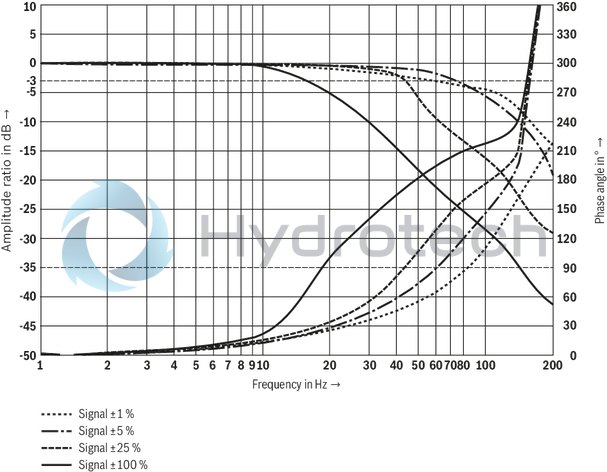

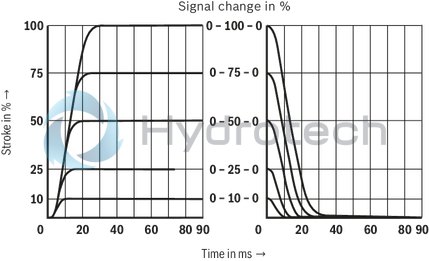

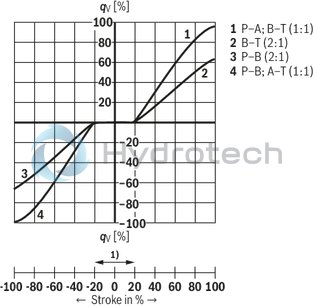

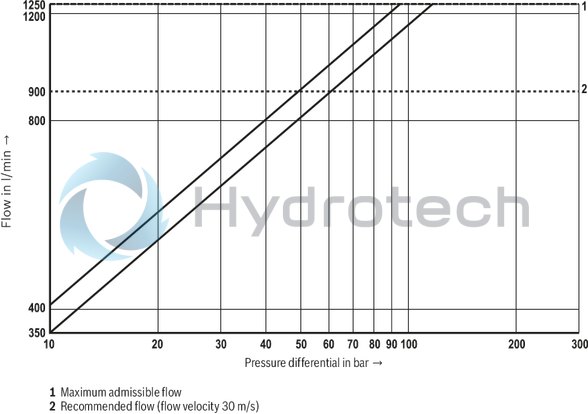

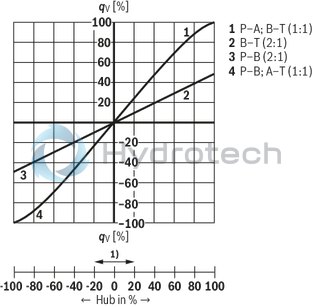

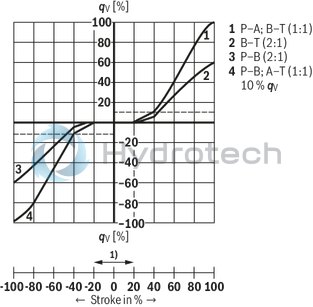

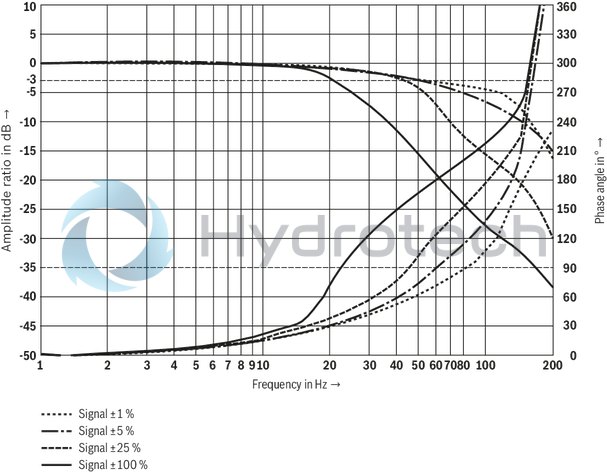

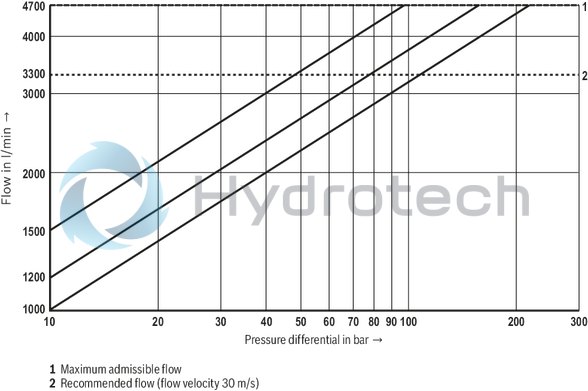

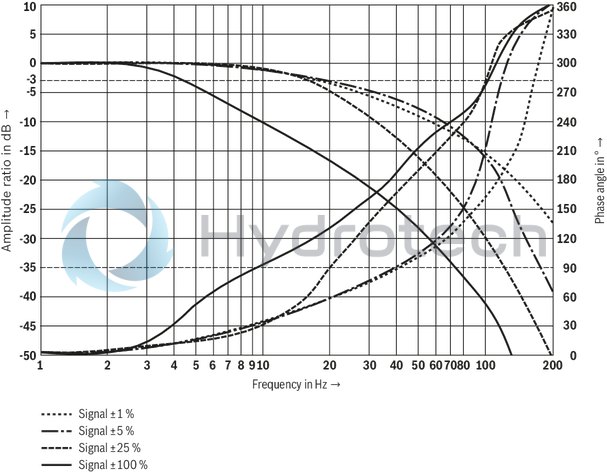

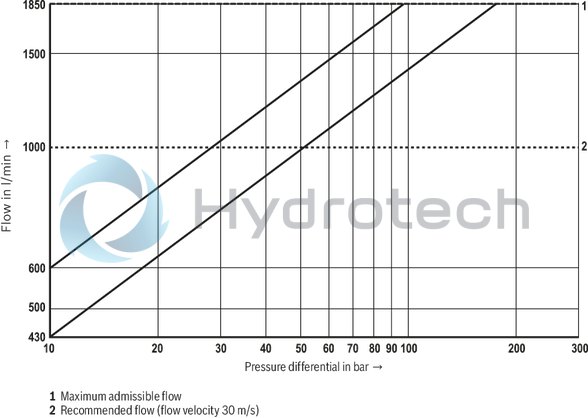

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Hydraulic fluid

Classification

Suitable sealing materials

Standards

Data sheet

Mineral oils

HL, HLP, HLPD, HVLP, HVLPD

NBR, FKM

DIN 51524

90220

Bio-degradable

Insoluble in water

HETG

NBR, FKM

ISO 15380

90221

HEES

FKM

Soluble in water

HEPG

FKM

ISO 15380

Flame-resistant

Water-free

HFDU (glycol base)

FKM

ISO 12922

90222

HFDU (ester base)

FKM

HFDR

FKM

Containing water

HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620)

NBR

ISO 12922

90223

Important information on hydraulic fluids:

For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The ignition temperature of the hydraulic fluid used must be 40 K higher than the maximum solenoid surface temperature. Flame-resistant – containing water: Maximum operating pressure 210 bar, otherwise increased cavitation erosion Life cycle as compared to operation with mineral oil HL, HLP 30 … 100% Maximum hydraulic fluid temperature 60 °C Bio-degradable and flame-resistant: When using hydraulic fluids that are simultaneously zinc-solving, zinc may accumulate (700 mg zinc per pole tube).

electrical, integrated electronics (OBE)

Relative duty cycle 1)

100 %

Protection class according to DIN EN 60529

IP65 (with mating connector mounted and locked)

Power supply

Nominal voltage 2)

VDC

24

Lower limit value

VDC

18

Upper limit value

VDC

36

Maximum admissible residual ripple 3)

Vpp

2.5

Current consumption

Maximum 4)

A

2.5

Impulse current

A

4

Zero point calibration (set in the plant)

%

± 1

Maximum power consumption

W

40

AD/DA resolution

Analog inputs

bits

12

Analog outputs

bits

12

Required fuse protection

AT

4 (time-lag)

Adjustment

calibrated in the plant, see "characteristic curves"

Conformity

CE according to EMC directive 2014/30/EU tested according EN 61000-6-2 and EN 61000-6-3

Parameterization interface

Ethernet

Scanning time

Pressure and force controller (minimum)

ms

0.5

Position controller (minimum)

ms

1

Booting time

s

15
1) Permanent light on/off
2) Supply voltage is used directly for sensor connections X2M1, X2M2 and X8M (no internal voltage limitation). Voltage limit values must be observed directly at the connector of the valve (observe line length and cable cross-section).
3) Observe the absolute limit values of the supply voltage.
4) The maximum current consumption will increase when using the sensor inputs or the switching output according to the external load

electrical, integrated electronics (OBE)

Digital inputs XH2

Quantity

optionally up to 2, configurable (analog inputs are no longer required)

Low level

V

-3 ... +5

High level

V

15 ... UB

Current consumption at high level

mA

< 1

Reference potential

Pin 5

Digital outputs XH2

Quantity

1

Low level

V

0 ... 3

High level

V

15 ... UB

Current carrying capacity, max.

A

1.5 (short-circuit-proof)

Signal delay time

ms

< 2 (depending on set scan time)

Reference potential

GND

Analog inputs XH2

Number (current and voltage input parameterizable)

optionally up to 2, configurable (digital inputs are no longer required)

AD resolution

bit

12

Voltage inputs (differential inputs)

Measurement range

V

-10 ... +10

Input resistance

80 + 10 %

Temperature drift

< 14 mV/10 K

Current inputs (reference to AGND)

Input current

mA

4 ... 20 (0 ... 20 physically)

Input resistance

Ω

200, measuring resistance plus FET

Temperature drift

< 25 μA/10K

Analog outputs XH2

Number (current and voltage input parameterizable)

1

DA resolution

bit

14

Voltage outputs

Output range

V

-10 ... + 10 (0 ... 10 durch Software)

Minimum load impedance

10

Temperature drift

< 5 mV/10 K

Current outputs

Output range

mA

0 ... 20 (4 … 20 by software)

Maximum load

Ω

200

Analog sensors X2M1, X2M2

Number (current and voltage input parameterizable)

1 pro Stecker

Power supply

V

24 (corresponding to supply voltage applied to XH2)

Maximum supply current

350 (total X2M1, X2M2, X8M)

AD resolution

bit

12

Voltage inputs

Measurement range

V

0 ... 10

Input resistance

80 +10 %

Temperature drift

< 15 mV/10 K

Current inputs (reference to AGND)

Input current

mA

4 ... 20 (0 ... 20 physically)

Input resistance

Ω

200, measuring resistance plus PTC

Temperature drift

< 10 μA/10 K

Digital sensor X8M

Power supply

24 V or 5 V

Maximum supply current at - 24 V

mA

350 (total X2M1, X2M2, X8M)

Maximum supply current at - 5 V

mA

250

SSI-Aufnehmer

Coding

Gray

Data width

Bit

12 ... 28

Transfer frequency

80 kHz ... 1 MHz

Line receiver/driver

RS485

Endat encoder

2.2

Line receiver/driver

RS485

Resolution

minimum 10 nm and multiple

1 Vpp encoder

Transfer frequency

kHz

250

(measured with HLP46, ϑOil = 40 ±5 °C)

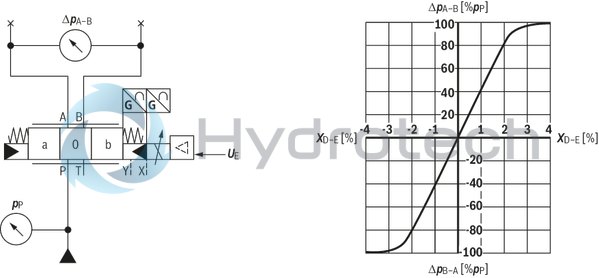

Pressure amplification

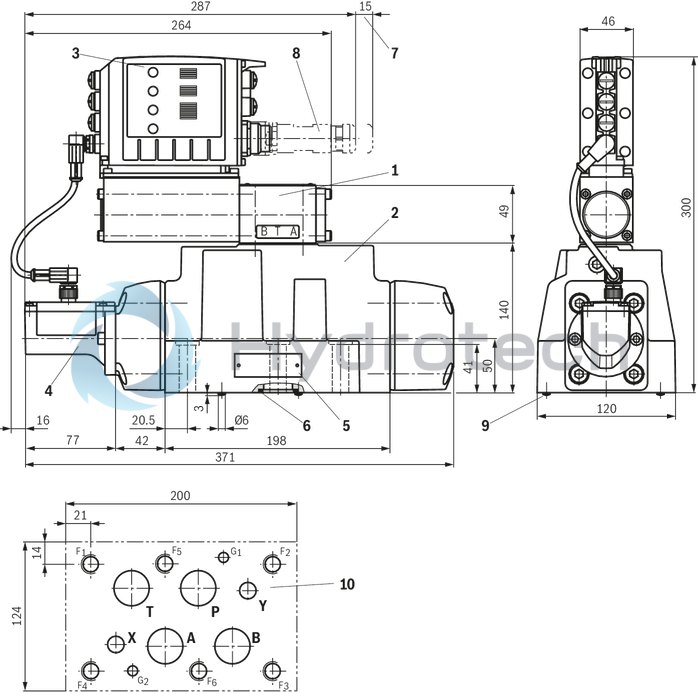

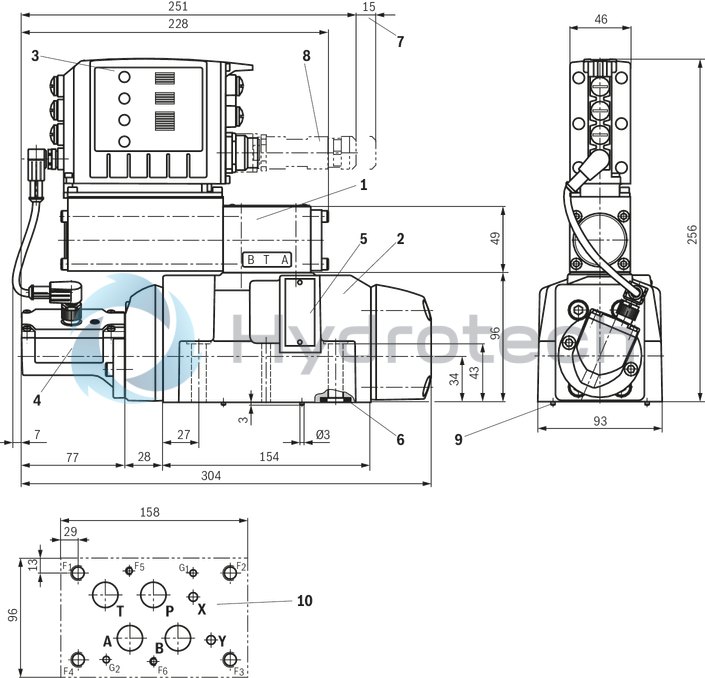

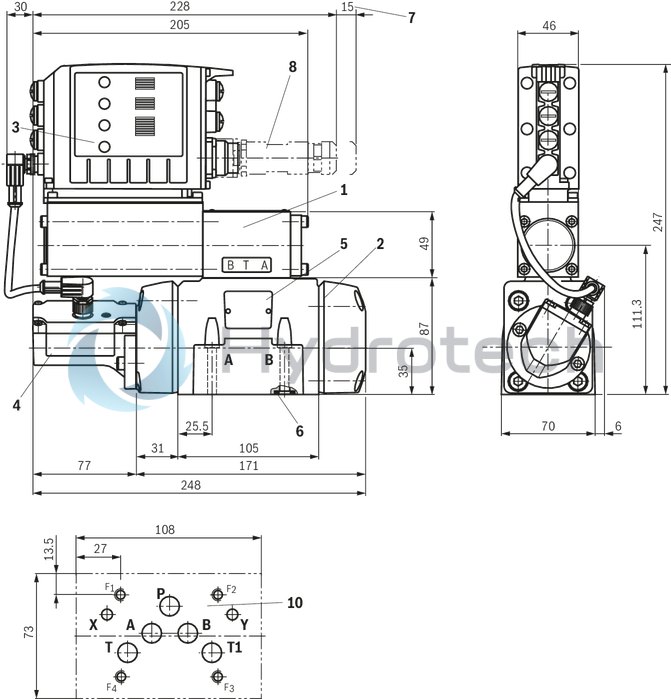

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

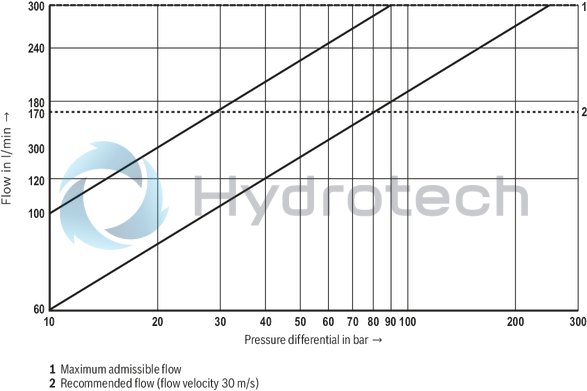

Flow characteristic "L"

Flow/signal function

Symbol V, V1-

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC
1) Step compensation (opening at 5%)

Flow/signal function

Symbol E, E1-, W6-, W8-

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC
1) Step compensation (opening at 5%)

Flow characteristic "P"

Flow/signal function

Symbol V, V1-

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC
1) Step compensation (opening at 5%)

Flow/signal function

Symbol E, E1-, W6-, W8-

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC
1) Step compensation (opening at 5%)

Flow characteristic "M"

Symbol Q3, version "100"

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Symbol Q3, version "250"

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Symbol Q3, version "400"

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Symbol Q3, version "600"

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Size 10

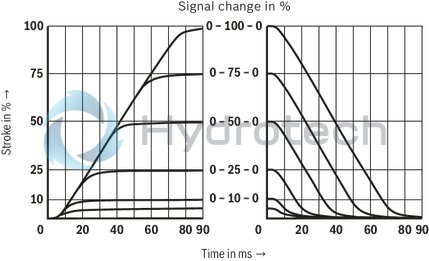

Transition function with stepped electric input signals

Symbols V and Q3-

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC Pilot control valve, port X = 100 bar Main valve, port P = 10 bar

Frequency response

Symbols V and Q3-

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

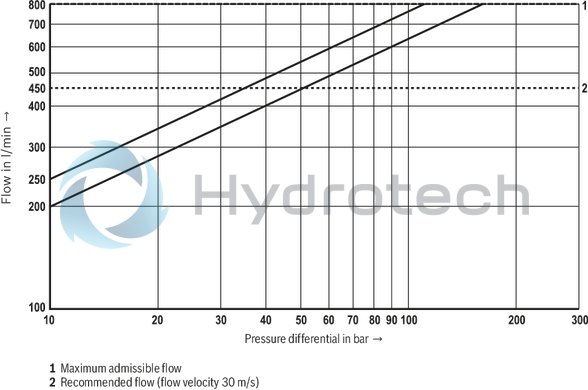

Flow/load function with maximum valve opening (tolerance ±10 %)

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Size 16

Pilot control valve, port X = 100 bar Main valve, port P = 10 bar

Frequency response

Symbol V

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Flow/load function with maximum valve opening (tolerance ±10 %)

Size 16

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Size 25

Transition function with stepped electric input signals

Symbol V

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC Pilot control valve, port X = 100 bar Main valve, port P = 10 bar

Frequency response

Symbol V

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Flow/load function with maximum valve opening (tolerance ±10 %)

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Size 27

Transition function with stepped electric input signals

Symbol V

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC Pilot control valve, port X = 100 bar Main valve, port P = 10 bar

Frequency response

Symbol V

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Flow/load function with maximum valve opening (tolerance ±10 %)

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Size 35

Transition function with stepped electric input signals

Symbols V and Q3-

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC Pilot control valve, port X = 100 bar Main valve, port P = 10 bar

Frequency response

Symbols V and Q3-

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Flow/load function with maximum valve opening (tolerance ±10 %)

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC
technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Symbol E1-, V1- and W8-:

P → A: qv

P → B: qv/2

B → T: qv/2

A → T: qv

Version

simple

Detailed

"XY"

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

"PY"

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

"PT"

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

"XT"

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Notice:

Representation according to DIN ISO 1219-1. Hydraulic interim positions are shown by dashes. For information on the "switch-off behavior", refer to the technical data Symbols V and V1 are not suitable for use in safety applications (no overlap).

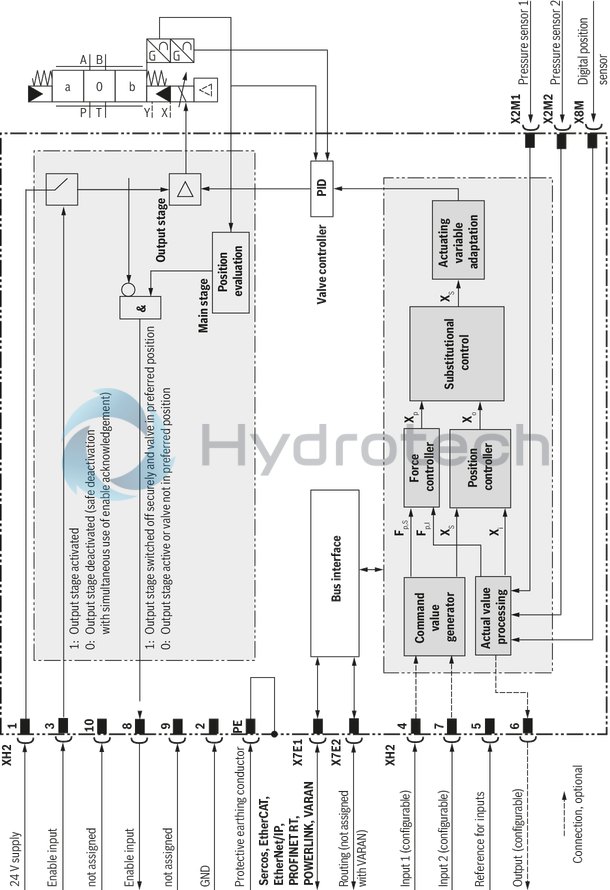

Block diagram / controller function block

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Detailed description of the safety function:

After the signal at the enable input has been removed, the output stage, and thus the solenoid of the valve, are internally separated from the available supply voltage. The enable acknowledgment will only be activated after the safe valve spool position has been achieved.

Connector pin assignment XH2, 11-pole + PE according to EN 175201-804

Pin

Core marking 1)

Assignment of interface D6

Cable, one-part

Cable, split

1

1

1

24 VDC supply voltage

2

2

2

GND

3

3

white

Enable input 24 V DC (high ≥ 15 V; low < 2 V)

4

4

yellow

Command value 1 (4 ... 20 mA/±10 V) 2)

5

5

green

Reference for command values

6

6

Violet

Actual value (4 ... 20 mA/±10 V) 2, 3)

7

7

pink

Command value 2 (4 ... 20 mA/±10 V) 2)

8

8

red

Enable acknowledgement 24 VDC (Imax 50 mA) 4)

9

9

brown

not assigned

10

10

black

not assigned

11

11

blue

Switching output 24 V (normal operation (24 V)/error (0V) or power circuit signal), maximum 1.5 A 4)

PE

green-yellow

green-yellow

Functional ground (directly connected to the valve housing)

1) Core marking of the connection lines for mating connector with cable set
2) Selection via commissioning software
3) For diagnostic purposes, precise actual value response via Ethernet interface
4) A load increases the current consumption on pin 1
technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Connector pin assignment: M12 x 1, 4-pole, coding D (for Ethernet interface “X7E1” and “X7E2”)

Pin

Assignment

1

TxD +

2

RxD +

3

TxD -

4

RxD -

5

not assigned

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Analog configurable sensor interfaces, connections "X2M1", "X2M2" (coding A), M12, 5-pole, socket

Pin

Assignment

1

+24 V Spannungsausgang (Sensorversorgung) 1, 2)

2

Sensorsignal-Eingang Strom (4 ... 20 mA) 3)

3

GND

4

Sensorsignal-Eingang Spannung (0 ... 10 V) 3)

5

negativer Differenzverstärkereingang zu Pin 4 (optional)

1) Voltage output same as voltage supply connected to input XH2.
2) A load increases the current consumption of the valve (pin 1 on the connector XH2)
3) Only one signal input per interface, configurable
technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Digital sensor interface SSI, EnDat 2.2 or 1 Vpp measurement system "X8M", M12, 8-pole, socket

Pin

SSI assignment 1)

EnDat 2.2 assignment 1; 2)

Assignment 1 Vpp

1

GND

GND

GND

2

+24 V 3)

+5 V 3)

+5 V 3)

3

Data +

Data +

A +

4

Data -

Data -

A -

5

GND

GND

B +

6

Clock -

Clock -

B -

7

Clock +

Clock +

R +

8

+24 V 3)

+5 V 3)

R -

1) Pins 2, 8 and 1, 5 have the same assignment each
2) Supported resolution ≥ 10 nm
3) A load increases the current consumption of the valve (pin 1 on the connector XH2)
technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Notice:

Reference potential for all signals: GND We recommend connecting the shields on both sides via the mechanical housings of the plug-in connectors.
Using connector pins will affect the effectiveness of the shielding effect! Internal screens are not required.

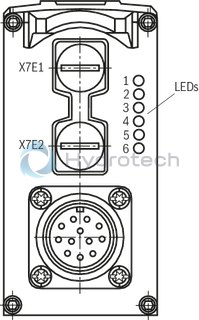

LED displays

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

LED

Interface

Sercos

EtherNet/IP

EtherCAT

PROFINET

POWERLINK

VARAN

1

X7E1

Activity

Activity

not used

Activity

not used

Activity

2

Link

Link

Link/Activity

Link

Link/Data Activity

Link

3

Electronic module

S

Network Status

Network Status

Network Status

Status/Error

Network Status

4

Module Status

Module Status

Module Status

Module Status

Module Status

Module Status

5

X7E2

Activity

Activity

not used

Activity

not used

not used

6

Link

Link

Link/Activity

Link

Link/Data Activity

not used

Displays of the Status LEDs

Module status LED
(LED 4)

Display status

Network status LED
(LED 3)

Display status

Off

No voltage supply

Off

No voltage supply

Green-red, flashing

Initialization

Green

Operation

Green, flashing

Drive ready for operation

Green

Drive active

Orange, flashing

Warning

Red, flashing

Error

Notice:

LEDs 1, 2, 5 and 6 relate to interfaces "X7E1" and "X7E2" Link: Cable plugged in, connection established (permanently lit) Activity: Data sent/received (flashing) Module status LEDs 3 and 4 relate to the electronics module For a detailed description of the diagnosis LEDs, please refer to the functional description Rexroth HydraulicDrive HDx

Size 10

Dimensions in mm

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC
technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Required surface quality of the valve contact surface

1

Pilot control valve

2

Main valve

3

Integrated electronics (OBE)

4

Inductive position transducer (main valve)

5

Name plate

6

Identical seal rings for ports A, B, P, and T

Identical seal rings for ports X and Y

7

Space required to remove the mating connector

8

Mating connectors, separate order, see "Accessories"

9

Locking pin

10

Machined valve contact surface; porting pattern according to ISO 4401-05-05-0-05

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Valve mounting screws (separate order)

Size

Quantity

Hexagon socket head cap screws

Material number

10

4

ISO 4762 - M6 x 45 - 10.9-CM-Fe-ZnNi-5-Cn-T0-H-B

Tightening torque MA = 13.5 Nm ±10 %

R913043777

or

4

ISO 4762 - M6 x 45 - 10.9

Tightening torque MA = 15.5 Nm ±10 %

Not included in the Rexroth delivery range

Notices:

The tightening torque of the hexagon socket head cap screws refers to the maximum operating pressure. When replacing component series 3X with 4X, only the valve mounting screws listed here may be used. Prior to assembly, check the existing mounting bore on the block for sufficient screw-in depth.

Size 16

Dimensions in mm

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC
technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Required surface quality of the valve contact surface

1

Pilot control valve

2

Main valve

3

Integrated electronics (OBE)

4

Inductive position transducer (main valve)

5

Name plate

6

Identical seal rings for ports A, B, P, and T

Identical seal rings for ports X and Y

7

Space required to remove the mating connector

8

Mating connectors, separate order, see "Accessories"

9

Locking pin

10

Machined valve contact surface; Porting pattern according to ISO 4401-07-07-0-05
Deviating from the standard:
Ports P, A, B, T Ø20 mm
Minimum screw-in depth:
- Ferrous metal 1.5 x Ø
- Non-ferrous metal 2 x Ø

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Size

Quantity

Hexagon socket head cap screws

Material number

16

2

ISO 4762 - M6 x 60 - 10.9-flZn-240h-L

Tightening torque MA = 12.5 Nm ±10 %

R913000115

4

ISO 4762 - M10 x 60 - 10.9-flZn-240h-L

Tightening torque MA = 58 Nm ±20 %

R913000116

or

2

ISO 4762 - M6 x 60 - 10.9

Tightening torque MA = 15.5 Nm ±10 %

Not included in the Rexroth delivery range

4

ISO 4762 - M10 x 60 - 10.9

Tightening torque MA = 75 Nm ±20 %

Notices:

The tightening torque of the hexagon socket head cap screws refers to the maximum operating pressure. When replacing component series 3X with 4X, only the valve mounting screws listed here may be used. Prior to assembly, check the existing mounting bore on the block for sufficient screw-in depth.
technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Required surface quality of the valve contact surface

1

Pilot control valve

2

Main valve

3

Integrated electronics (OBE)

4

Inductive position transducer (main valve)

5

Name plate

6

Identical seal rings for ports A, B, P, and T

Identical seal rings for ports X and Y

7

Space required to remove the mating connector

8

Mating connectors, separate order, see "Accessories"

9

Locking pin

10

Machined valve contact surface; Porting pattern according to ISO 4401-08-08-0-05
Deviating from the standard:
- NG25: Ports X, Y - Ø14 mm
- NG27: Ports A, B, T and P Ø32 mm
Minimum screw-in depth:
- Ferrous metal: 1.5 x Ø
- Non-ferrous metal: 2.0 x Ø

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Valve mounting screws (separate order)

Size

Quantity

Hexagon socket head cap screws

Material number

25, 27

6

ISO 4762 - M12 x 60 - 10.9-10.9-flZn-240h-L

Tightening torque MA = 100 Nm ±20 %

R913000121

or

6

ISO 4762 - M12 x 60 - 10.9

Tightening torque MA = 130 Nm ±20 %

Not included in the Rexroth delivery range

Notices:

The tightening torque of the hexagon socket head cap screws refers to the maximum operating pressure. When replacing component series 3X with 4X, only the valve mounting screws listed here may be used. Prior to assembly, check the existing mounting bore on the block for sufficient screw-in depth.

Size 27

Dimensions in mm

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC
technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Required surface quality of the valve contact surface

1

Pilot control valve

2

Main valve

3

Integrated electronics (OBE)

4

Inductive position transducer (main valve)

5

Name plate

6

Identical seal rings for ports A, B, P, and T

Identical seal rings for ports X and Y

7

Space required to remove the mating connector

8

Mating connectors, separate order, see "Accessories"

9

Locking pin

10

Machined valve contact surface; Porting pattern according to ISO 4401-08-08-0-05
Deviating from the standard:
- NG25: Ports X, Y - Ø14 mm
- NG27: Ports A, B, T and P Ø32 mm
Minimum screw-in depth:
- Ferrous metal: 1.5 x Ø
- Non-ferrous metal: 2.0 x Ø

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Valve mounting screws (separate order)

Size

Quantity

Hexagon socket head cap screws

Material number

25, 27

6

ISO 4762 - M12 x 60 - 10.9-10.9-flZn-240h-L

Tightening torque MA = 100 Nm ±20 %

R913000121

or

6

ISO 4762 - M12 x 60 - 10.9

Tightening torque MA = 130 Nm ±20 %

Not included in the Rexroth delivery range

Notices:

The tightening torque of the hexagon socket head cap screws refers to the maximum operating pressure. When replacing component series 3X with 4X, only the valve mounting screws listed here may be used. Prior to assembly, check the existing mounting bore on the block for sufficient screw-in depth.

Size 35

Dimensions in mm

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC
technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Required surface quality of the valve contact surface

1

Pilot control valve

2

Main valve

3

Integrated electronics (OBE)

4

Inductive position transducer (main valve)

5

Name plate

6

Identical seal rings for ports A, B, P, and T

Identical seal rings for ports X and Y

7

Space required to remove the mating connector

8

Mating connectors, separate order, see "Accessories"

9

Locking pin

10

Machined valve contact surface; Porting pattern according to ISO 4401-10-09-0-05
Deviating from the standard:
- Ports P, A, B and T Ø50 mm;
- Position G1 according to DIN 24340 form A

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Valve mounting screws (separate order)

Size

Quantity

Hexagon socket head cap screws

Material number

35

6

ISO 4762 - M20 x 90 - 10.9-flZn/nc/480h/C

Tightening torque MA = 465 Nm ±20 %

R913009160

or

6

ISO 4762 - M20 x 90 - 10.9

Tightening torque MA = 610 Nm ±20 %

Not included in the Rexroth delivery range

Notices:

The tightening torque of the hexagon socket head cap screws refers to the maximum operating pressure. When replacing component series 3X with 4X, only the valve mounting screws listed here may be used. Prior to assembly, check the existing mounting bore on the block for sufficient screw-in depth.

Transition function with stepped electric input signals

Symbol V

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Project planning and maintenance instructions

Connect the valve to the supply voltage only when this is required for the functional sequence of the machine. Do not use electrical signals provided via control electronics (e. g. "No error" signal) for switching safety-relevant machine functions (see also EN ISO 13849 "Safety of machinery – safety-related parts of control systems"). If electro-magnetic interference is to be expected, take appropriate measures ensuring the function (depending on the application, e. g. shielding, filtration). The devices have been tested in the plant and are supplied with default settings. Only complete devices can be repaired. Repaired devices are returned with default settings. User-specific settings will not be applied. The machine end-user will have to re-transfer the corresponding user parameters.

Protective cap M12

Material number R901075563

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Mating connectors for valves with round connector, 11-pole + PE

12P N11

technical illustration-4WRLD16W6-200LJ-4X/MPT/24ND6T-Size 16, symbol W6, electrical with integrated electronics, 24 V DC

Mating connectors for valves with round connector, 11-pole + PE

12P N11

For valves with round connector according to EN 175201-804, 11-pole + PE

Data sheet

Spare parts & repair
