BOSCH REXROTH

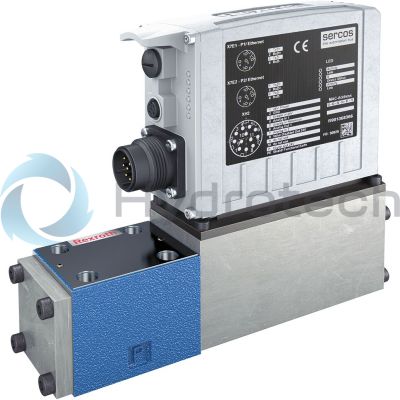

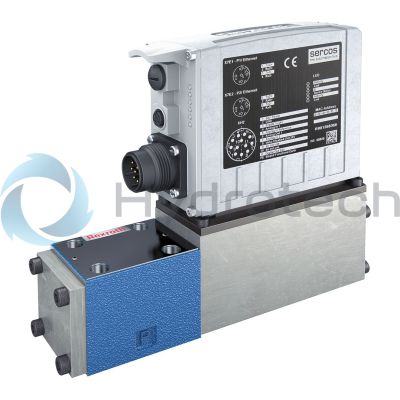

4WRPDH10C4B50L-2X/M/24ED6T
R901474451


$12,442.00
  • BOSCH REXROTH
  • Material:R901474451
  • Model:4WRPDH10C4B50L-2X/M/24ED6T

Due to extremely high demand, please call 800-887-4183 for availability



Size 10, symbol C4, integrated electronics, 24 V DC

Industrial hydraulic valve in a high performance range. Reliable and quick control of the direction of the oil flow according to hydraulic symbol. High accuracy thanks to internal piston position feedback

Unpacked Weight: 7.540 kg

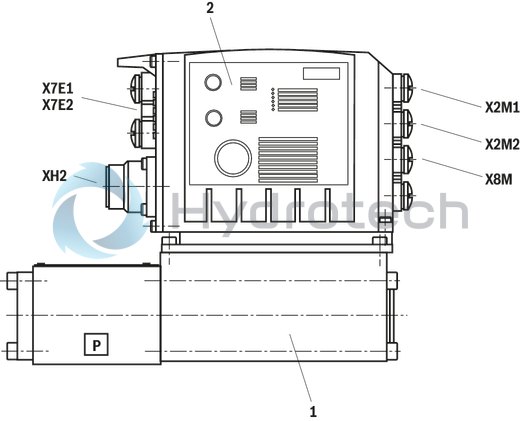

Set-up

The directional control valve with IAC Multi Ethernet electronics mainly consists of:

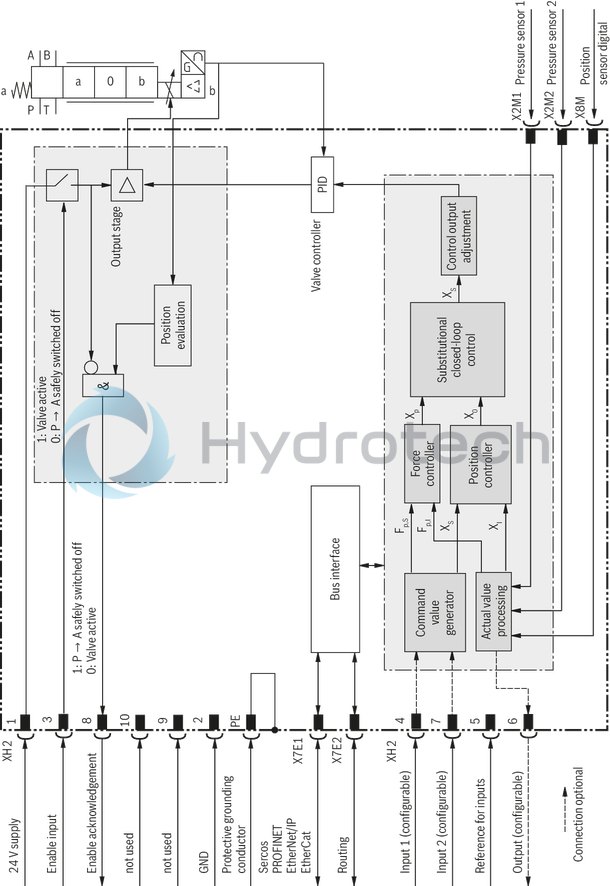

Direct operated directional control valve (1) with control spool and sleeve in servo quality Integrated digital axis controller (2) with: analog/digital interface (XH2) Ethernet interfaces (X7E1, X7E2) analog sensor interfaces (X2M1, X2M2) digital sensor interface (X8M)

Directional control valve with integrated axis controller, analog interfaces (X2M1, X2M2), digital interfaces (XH2, X8M) and Ethernet interfaces (X7E1, X7E2)

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Functional description

The IAC Multi Ethernet valve (Integrated Axis Controller based on directional control valves) is a digital directional control valve with integrated axis controller and the following functionalities:

Position control Pressure/force control Closed-loop speed control Substitutional closed-loop control (position - pressure/force) Substitutional control (flow - pressure/force) pQ function (flow-controlled)



This enables, amongst others, the following operating modes:

Valve direct control Drive-controlled position control Drive-controlled positioning Positioning block operation The command values are preset via the Ethernet interface (X7E1 or X7E2) or, alternatively, via the analog/digital interface (XH2) The feedback information of the actual value signals to the superior control system is provided optionally either via the Ethernet interface (X7E1 or X7E2) or the analog/digital interface (XH2) The controller parameters are set via the Ethernet interface (X7E1 or X7E2)



Monitoring

The digital control electronics enable comprehensive monitoring functions/error detection including:

Undervoltage Communication error Cable break for analog sensor inputs and digital position measurement system Short-circuit monitoring for analog/digital outputs Monitoring of the microcontroller (watchdog) Temperature of the integrated electronics



IndraWorks DS PC program

To implement the project planning task and to parameterize the IAC Multi Ethernet valves, the user may use the IndraWorks DS engineering tool (see accessories):

Project planning Parameterization Commissioning Diagnosis Comfortable management of all data on a PC PC operating systems: Windows XP (SP3), Windows 7



Safety function

The integrated control electronics of the valve enables the additional shut-off of a channel according to EN 13849-1 in the direction P to A (depending on the application, the fail-safe position must be adhered to).

For this purpose, a suitable control system must be provided to perform the plausibility check between the direction-dependent valve signals "enable input" and "enable acknowledgement" (signal fed back by the valve).

It is not possible to switch off direction P to B in a safety-relevant manner according to EN 13849-1 (depending on valve type).

Spool valve
Direct actuated
Linear
Component series 2X
Maximum flow 100 l/min
Size 6, 10
Maximum operating pressure 350 bar
Spool symbolSymbol C4
Max. pressure315
Electrical connection descriptionConnector 12-pole (11 + PE) according to EN 175201-804
Productgroup ID9,10,11,12,13,14
Number of ports4
Type of actuationElectrical with integrated electronics
Conformity descriptionCE – electromagnetic compatibility 2014/30/EU
Size10
Electrical connectorConnector 12-pole (11 + PE)
Type of connectionSubplate mounting
Connection diagram NFPANFPA T3.5.1 R2-2002 D05
Size_CETOPD05
Nominal flow50
Connection diagramISO 4401-05-04-0-05
Supply voltage24 VDC
Number of switching positions4
Weight7.540
SealsNBR
ConnectivityDigital, EtherNET/IP
Hydraulic fluidHL,HLP,HLPD,HVLP,HVLPD,HFC (Fuchs: Hydrotherm 46M,
Renosafe 500; Petrofer: Ultra Safe 620; Houghton: Safe 620; Union: Carbide HP5046)
ConformityCE,RoHS

01

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

4

WRP

D

H

B

2X

/

/

24

D6

*

01

4 main ports

4

02

High-response directional valves

WRP

03

With integrated digital axis controller

D

04

Control spool/sleeve

H

05

Size 6

6

Size 10

10

06

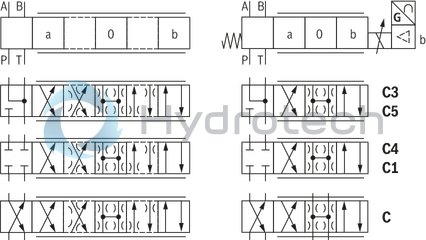

Symbols; for the possible version, see "Symbols/Circuit diagrams"

07

Installation side of the inductive position transducer

B

Rated flow at 70 bar valve pressure differential (35 bar/control edge)

08

Flow characteristic

„L"

"P" (inflection 40 %)

"P" (inflection 60 %)

Size 6

2 l/min

02

4 l/min

04

12 l/min

12

15 l/min

15

24 l/min

24

25 l/min

25

40 l/min

40

Size 10

50 l/min

50

100 l/min

100

Flow characteristic

09

Linear

L

Inflected characteristic curve (inflection 60 % for NG6 with rated flows "15" and "25", otherwise inflection 40 %)

P

10

Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) - Size 6

2X

Seal material

11

NBR seals

M

FKM seals

V

Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)

12

Supply voltage 24 V

24

Ethernet interface

13

EtherNet/IP

E

PROFINET RT

N

Sercos

S

EtherCAT (Profil CANopen)

T

POWERLINK (CANopen profile)

W

VARAN

V

Electrical interface

14

± 10 VDC or 4 ... 20 mA

D6

Sensor interfaces

15

0 ... 10 V / 4 ... 20 mA / EnDat 2.2

S

0 ... 10 V / 4 ... 20 mA / SSI

T

0 ... 10 V / 4 ... 20 mA / 1Vpp

U

16

Further details in the plain text

*

For applications outside these parameters, please consult us!

general

Type

4WRPDH

Size

6 10

Installation position

Any

Earth

kg

3.2 7.2

Storage temperature range

°C

+5 … +40

Ambient temperature range

°C

-20 … +60

Sine test according to DIN EN 60068-2-6

10 ... 2000 Hz / maximum 10 g / 10 cycles / 3 axes

Noise test according to DIN EN 60068-2-64

20 ... 2000 Hz / 10 gRMS / 30 g peak / 30 min / 3 axes

Transport shock according to DIN EN 60068-2-27

15 g / 11 ms / 3 axes

Maximum relative humidity 1)

%

95

Maximum surface temperature

°C

150

MTTFD values according to EN ISO 13849

Years

150
1) No condensation

hydraulic

Type

4WRPDH

Size

6 10

Maximum operating pressure

Port P

bar

350 315

Port A

bar

350 315

Port B

bar

350 315

Port T

bar

250

Maximum flow

l/min

100

Hydraulic fluid

see table "Hydraulic fluid"

Hydraulic fluid temperature range

°C

-20 … +60

Viscosity range

Maximum admissible

mm²/s

10 … 800

Recommended

mm²/s

20 … 100

Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1)

Class 18/16/13

Hysteresis

%

≤ 0.2

Manufacturing tolerance

%

≤ 10

Temperature drift

Zero shift < 0.25 % at Δϑ = 10 K

Pressure drift

Zero shift < 0.15 % at 100 bar

Zero point calibration (set in the plant)

%

± 1
1) The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

hydraulic

Nominal flow 1)

l/min

2 4 12 15 24 25 40 50 100

Limitation of use

Symbols C3, C5

bar

350 160 315 160

Symbols C1, C4

bar

350 280 250 100 250 100

Leakage flow (at 100 bar)

Linear characteristic curve “L”

l/min

< 150 < 180 < 300 - < 500 < 900 < 1200 < 1500

Inflected characteristic curve "P"

l/min

- < 180 < 300 < 450 < 600 < 500 < 600
1) With Δp = 35 bar/control edge; flow for deviating Δp see formula.
technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Hydraulic fluid

Classification

Suitable sealing materials

Standards

Data sheet

Mineral oils

HL, HLP, HLPD, HVLP, HVLPD

NBR, FKM

DIN 51524

90220

Bio-degradable

Insoluble in water

HETG

NBR, FKM

ISO 15380

90221

HEES

FKM

Soluble in water

HEPG

FKM

ISO 15380

Containing water

Water-free

HFDU, HFDR

FKM

ISO 12922

90222

Containing water

HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620 )

NBR

ISO 12922

90223

Important information on hydraulic fluids:

For more information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The ignition temperature of the hydraulic fluid used must be 40 K higher than the maximum solenoid surface temperature. Flame-resistant – containing water: Maximum pressure differential per control edge 50 bar Pressure pre-loading at the tank port > 20 % of the pressure differential, otherwise increased cavitation Life cycle as compared to operation with mineral oil HL, HLP 50 … 100 %

electrical

Type

4WRPDH

Size

6 10

Power supply

Nominal voltage 1)

VDC

24

Lower limit value

VDC

18

Upper limit value

VDC

36

Maximum admissible residual ripple 2)

2.5 Vpp

Relative duty cycle 3)

%

100

Current consumption

Imax 4)

A

2.5

Impulse load

A

4

Required fuse protection

A

4 (time-lag)

Maximum power consumption

W

40 60

Protection class according to DIN EN 60529

IP65 (with mating connector mounted and locked)

AD/DA resolution

Analog inputs

bits

12

Analog outputs

bits

10

Protective earthing conductor and screening

see pin assignment under "Electrical connection" (CE-compliant installation)

Adjustment

calibrated in the plant, see "characteristic curves"

Parameterization interface

Ethernet

Scan time pressure and force controller (minimum)

0.5 ms

Scan time position controller (minimum)

1 ms

Booting time

< 15 s

Conformity

CE according to EMC Directive 2004/108/EC tested according to EN 61000-6-2 and EN 61000-6-3
1) Supply voltage is used directly for sensor connections X2M1, X2M2 and X8M (no internal voltage limitation). Voltage limit values must be observed directly at the connector of the valve (observe line length and cable cross-section).
2) Observe the absolute limit values of the supply voltage.
3) Continuous operation
4) The maximum current consumption will increase when using the sensor inputs or the switching output according to the external load

electrical, integrated electronics (OBE)

Digital inputs XH2

Quantity

optionally up to 2, configurable (analog inputs are no longer required)

Low level

V

-3 ... +5

High level

V

15 ... UB

Current consumption at high level

mA

< 1

Reference potential

Pin 5

Digital outputs XH2

Quantity

1

Low level

V

0 ... 3

High level

V

15 ... UB

Current carrying capacity, max.

A

1.5 (short-circuit-proof)

Signal delay time

ms

< 2 (depending on set scan time)

Reference potential

GND

Analog inputs XH2

Number (current and voltage input parameterizable)

optionally up to 2, configurable (digital inputs are no longer required)

AD resolution

bit

12

Voltage inputs (differential inputs)

Measurement range

V

-10 ... +10

Input resistance

80 + 10 %

Temperature drift

< 14 mV/10 K

Current inputs (reference to AGND)

Input current

mA

4 ... 20 (0 ... 20 physically)

Input resistance

Ω

200, measuring resistance plus FET

Temperature drift

< 25 μA/10K

Analog outputs XH2

Number (current and voltage input parameterizable)

1

DA resolution

bit

14

Voltage outputs

Output range

V

-10 ... + 10 (0 ... 10 durch Software)

Minimum load impedance

10

Temperature drift

< 5 mV/10 K

Current outputs

Output range

mA

0 ... 20 (4 … 20 by software)

Maximum load

Ω

200

Analog sensors X2M1, X2M2

Number (current and voltage input parameterizable)

1 pro Stecker

Power supply

V

24 (corresponding to supply voltage applied to XH2)

Maximum supply current

350 (total X2M1, X2M2, X8M)

AD resolution

bit

12

Voltage inputs

Measurement range

V

0 ... 10

Input resistance

80 +10 %

Temperature drift

< 15 mV/10 K

Current inputs (reference to AGND)

Input current

mA

4 ... 20 (0 ... 20 physically)

Input resistance

Ω

200, measuring resistance plus PTC

Temperature drift

< 10 μA/10 K

Digital sensor X8M

Power supply

24 V or 5 V

Maximum supply current at - 24 V

mA

350 (total X2M1, X2M2, X8M)

Maximum supply current at - 5 V

mA

250

SSI-Aufnehmer

Coding

Gray

Data width

Bit

12 ... 28

Transfer frequency

80 kHz ... 1 MHz

Line receiver/driver

RS485

Endat encoder

2.2

Line receiver/driver

RS485

Resolution

minimum 10 nm and multiple

1 Vpp encoder

Transfer frequency

kHz

250

(measured with HLP46, ϑÖl = 40 ±5 °C)

Size 6

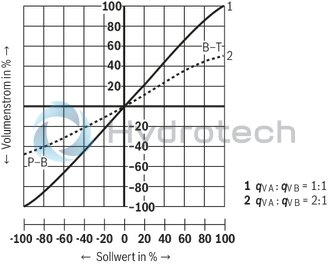

Flow/signal function

Linear characteristic curve “L”

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Flow/signal function

Inflected characteristic curve "P", inflection at 40 %

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

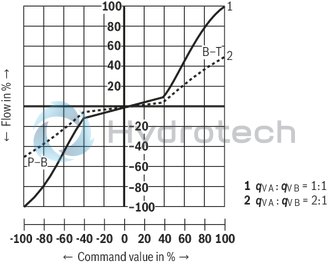

Flow/signal function

Inflected characteristic curve "P", inflection at 60 %

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

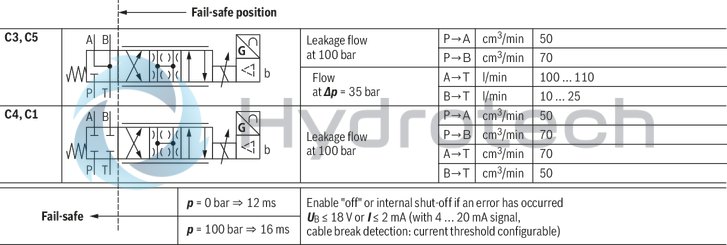

Fail-safe position

NG6

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Pressure-signal characteristic curve

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

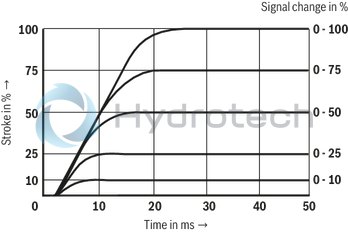

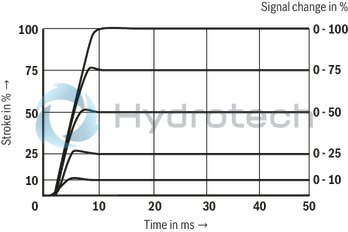

Transition function with stepped electric input signals

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

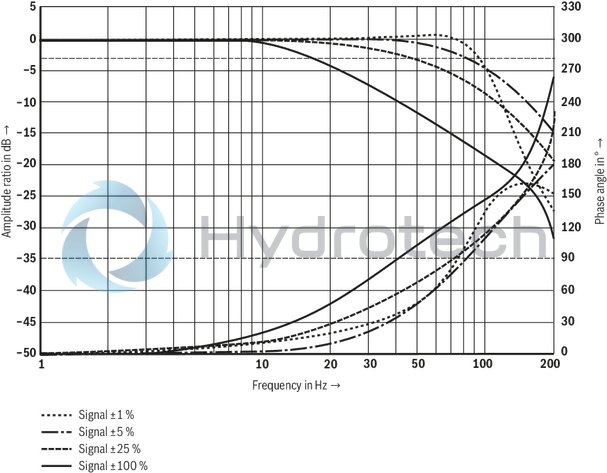

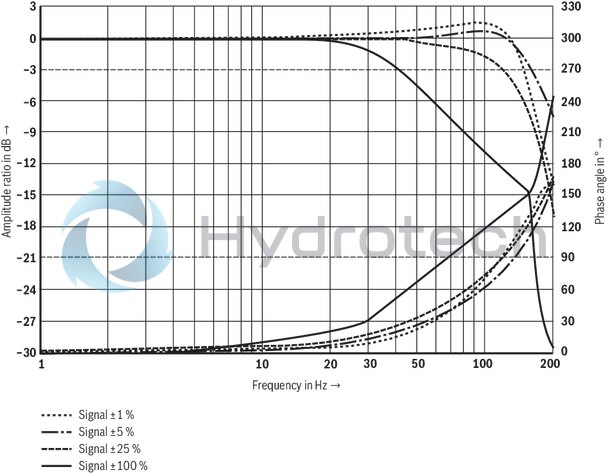

Frequency response

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Size 10

Flow/signal function

Linear characteristic curve "L" (1:1)

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Flow/signal function

Linear characteristic curve "L" (2:1)

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Flow/signal function

Inflected characteristic curve "P", inflection at 40 % (1:1)

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Flow/signal function

Inflected characteristic curve "P", inflection at 40 % (2:1)

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Fail-safe position

Size 10

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Pressure-signal characteristic curve

Size 10

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Transition function with stepped electric input signals

Size 10

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Frequency response

Size 10

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC
technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

With control symbol C1 and C5, the following applies:

P → A: qvmax

B → T: qv/2

P → B: qv/2

A → T: qvmax

Standard = 1:1, qVnom 2:1 only with rated flow 40 l/min (version "40")

Notice:

Representation according to DIN ISO 1219-1.

Hydraulic interim positions are shown by dashes.

Flow characteristic

Symbol

Linear characteristic curve (version "L")

Inflected characteristic curve (version "P")

Inflection 60 % (qV nom = 15.25 l/min)

Inflection 40 %
(qV nom = 4, 40 l/min - NG6)
(qV nom = 50, 100 l/min - NG10)

C3, C5

C4, C1

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

C

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

-

-

Block diagram / pin assignment

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Detailed description of the safety function:

After the signal at the enable input has been removed, the output stage, and thus the solenoid of the valve, are internally separated from the available supply voltage. The enable acknowledgment will only be activated after the safe valve spool position has been achieved.

For a detailed description of the safety function, refer to the operating instructions 29391-B.

Connector pin assignment XH2, 11-pole + PE according to EN 175201-804

Pin

Core marking

Assignment of interface D6

Cable, one-part

1)​

Cable, split

2)

1

1

1

24 VDC supply voltage

2

2

2

GND

3

3

white

Enable input 24 V DC (high ≥ 15 V; low < 2 V)

4

4

yellow

Command value 1 (4 ... 20 mA/±10 V)

3)

5

5

green

Reference for command values

6

6

Violet

Actual value (4 ... 20 mA/±10 V)

3; 4)

7

7

pink

Command value 2 (4 ... 20 mA/±10 V)

3)

8

8

red

Enable acknowledgement 24 VDC (Imax 50 mA)

5)

9

9

brown

not assigned

10

10

black

not assigned

11

11

blue

Switching output 24 V, configurable (fault-free operation (24 V)/error (0 V) or power circuit signal), maximum 1.5 A

3; 5)

PE

green-yellow

green-yellow

Functional ground (directly connected to the valve housing)

1) Core marking of the connection lines for mating connector with cable set (see "Accessories", material numbers R901268000, R901272854, R901272852)
2) Core marking of the connection lines for mating connector with cable set (see "Accessories", material numbers R900884671, R900032356, R900860399)
3) Selection via commissioning software
4) For diagnostic purposes, precise actual value response via Ethernet interface
5) A load increases the current consumption on pin 1
technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Connector pin assignment: M12 x 1, 4-pole, coding D (for Ethernet interface “X7E1” and “X7E2”)

Pin

Assignment

1

TxD +

2

RxD +

3

TxD -

4

RxD -

5

not assigned

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Analog configurable sensor interfaces, connections "X2M1", "X2M2" (coding A), M12, 5-pole, socket

Pin

Assignment

1

+24 V Spannungsausgang (Sensorversorgung) 1, 2)

2

Sensorsignal-Eingang Strom (4 ... 20 mA) 3)

3

GND

4

Sensorsignal-Eingang Spannung (0 ... 10 V) 3)

5

negativer Differenzverstärkereingang zu Pin 4 (optional)

1) Voltage output same as voltage supply connected to input XH2.
2) A load increases the current consumption of the valve (pin 1 on the connector XH2)
3) Only one signal input per interface, configurable
technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Digital sensor interface SSI, EnDat 2.2 or 1 Vpp measurement system "X8M", M12, 8-pole, socket

Pin

SSI assignment 1)

EnDat 2.2 assignment 1; 2)

Assignment 1 Vpp

1

GND

GND

GND

2

+24 V 3)

+5 V 3)

+5 V 3)

3

Data +

Data +

A +

4

Data -

Data -

A -

5

GND

GND

B +

6

Clock -

Clock -

B -

7

Clock +

Clock +

R +

8

+24 V 3)

+5 V 3)

R -

1) Pins 2, 8 and 1, 5 have the same assignment each
2) Supported resolution ≥ 10 nm
3) A load increases the current consumption of the valve (pin 1 on the connector XH2)
technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Notice:

Reference potential for all signals: GND We recommend connecting the shields on both sides via the mechanical housings of the plug-in connectors.
Using connector pins will affect the effectiveness of the shielding effect! Internal screens are not required.

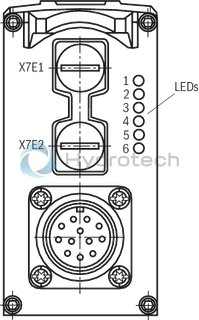

LED display

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

LED

Interface

Sercos

EtherNet/IP

EtherCAT

PROFINET

POWERLINK

VARAN

1

X7E1

Activity

Activity

not used

Activity

not used

Activity

2

Link

Link

Link/Activity

Link

Link/Data Activity

Link

3

Electronic module

S

Network Status

Network Status

Network Status

Status/Error

Network Status

4

Module Status

Module Status

Module Status

Module Status

Module Status

Module Status

5

X7E2

Activity

Activity

not used

Activity

not used

not used

6

Link

Link

Link/Activity

Link

Link/Data Activity

not used

Displays of the Status LEDs

Module status LED
(LED 4)

Display status

Network status LED
(LED 3)

Display status

Off

No voltage supply

Off

No voltage supply

Green-red, flashing

Initialization

Green

Operation

Green, flashing

Drive ready for operation

Green

Drive active

Orange, flashing

Warning

Red, flashing

Error

Notice:

LEDs 1, 2, 5 and 6 relate to interfaces "X7E1" and "X7E2" Link: Cable plugged in, connection established (permanently lit) Activity: Data sent/received (flashing) Module status LEDs 3 and 4 relate to the electronics module For a detailed description of the diagnosis LEDs, please refer to the functional description Rexroth HydraulicDrive HDx

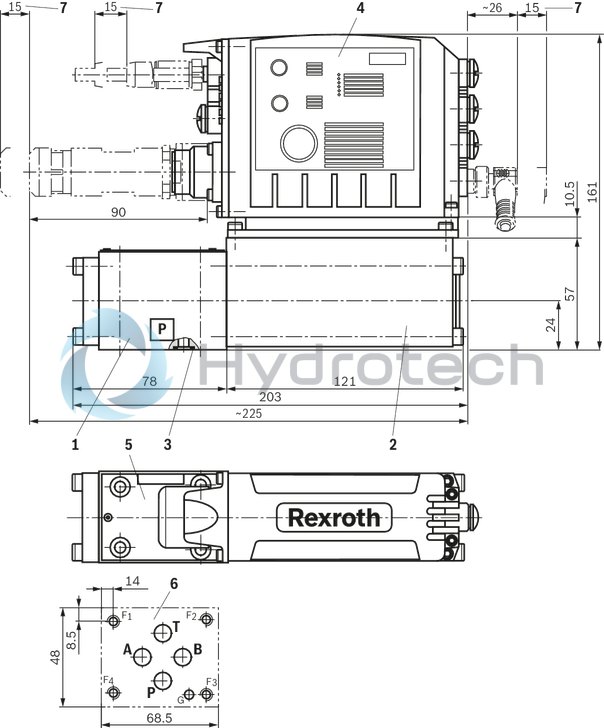

Size 6

Dimensions in mm

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC
technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Required surface quality of the valve contact surface

1

Valve housing

2

Control solenoid with position transducer

3

Identical seal rings for ports A, B, P, and T

4

Integrated digital control electronics

5

Name plate

6

Machined valve contact surface; Porting pattern according to ISO 4401-03-02-0-05

7

Space required to remove the mating connector

Valve mounting screws (separate order)

Size

Quantity

Hexagon socket head cap screws

Material number

6

4

ISO 4762 - M5 x 30 - 10.9-N67F 821 70

(galvanized according to Bosch standard N67F 821 70)

Tightening torque MA = 6+2 Nm

2910151166

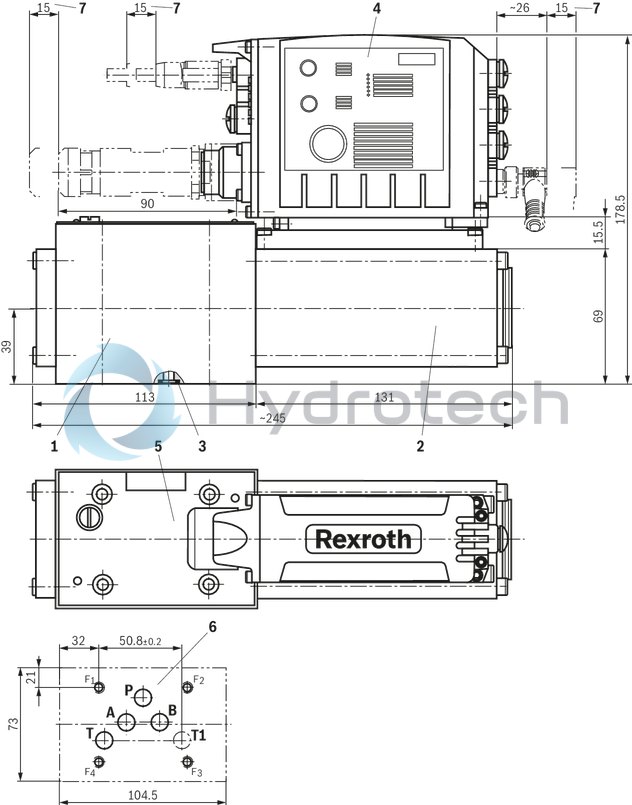

Size 10

Dimensions in mm

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC
technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Required surface quality of the valve contact surface

1

Valve housing

2

Control solenoid with position transducer

3

Identical seal rings for ports A, B, P and T (T1)

4

Integrated digital control electronics

5

Name plate

6

Machined valve contact surface; Porting pattern according to ISO 4401-05-04-0-05
Deviating from the standard:
Port T1 with Ø11.2 mm

7

Space required to remove the mating connector

Valve mounting screws (separate order)

Size

Quantity

Hexagon socket head cap screws

Material number

10

4

ISO 4762 - M6 x 40 - 10.9-N67F 821 70

(galvanized according to Bosch standard N67F 821 70)

Tightening torque MA = 11+3 Nm

2910151209

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Project planning and maintenance instructions

The supply voltage must be permanently connected, as otherwise bus communication is not possible. If electro-magnetic interference is to be anticipated, suitable measures must be taken to ensure the function (depending on the application, e.g. shielding, filtration). The devices have been tested in the plant and are supplied with default settings. Only complete devices can be repaired. Repaired devices are returned with default settings. User-specific settings will not be applied. The machine end-user will have to retransfer the corresponding user parameters.

Protective cap

Denomination

Part number

Protective cap

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

R901075563

Mating connectors for valves with round connector, 11-pole + PE

12P N11

technical illustration-4WRPDH10C4B50L-2X/M/24ED6T-Size 10, symbol C4, integrated electronics, 24 V DC

Mating connectors for valves with round connector, 11-pole + PE

12P N11

For valves with round connector according to EN 175201-804, 11-pole + PE

Data sheet

Spare parts & repair
