BOSCH REXROTH
R901461605

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

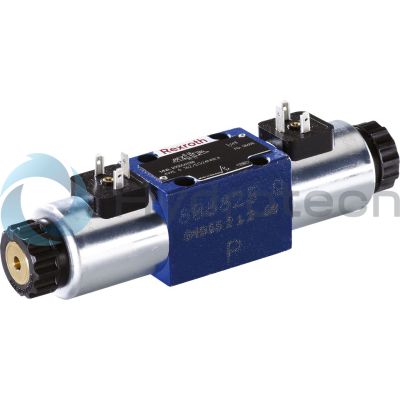

The Bosch Rexroth 4WE6MB6X/EG24N9DK23L/V (R901461605) is a high-performance industrial hydraulic valve designed for reliable switching of oil flow direction, in accordance with its hydraulic symbol. It is a direct-actuated spool valve with a spool symbol MB and has the capability to handle maximum pressure operations efficiently. This model features an electrical connection described as a connector pole according to ANSI B.M Brad Harrison MiniChange, which includes an LED for easy monitoring of the valve's status. It falls under the product group ID and possesses four ports, indicating its versatility in various hydraulic circuits. The type of actuation is solenoid, ensuring precise control over the spool movement within the valve. Its size corresponds to industry standards, and it comes with the robust Brad Harrison MiniChange electrical connector. The maximum flow rate that can be accommodated by this valve is not specified but adheres to its size classification. It aligns with connection diagrams from both NFPA T3.5.1 R2 D03 and ISO standards for installation compatibility. The supply voltage required for operation is 24 VDC, which makes it suitable for many industrial applications. This model boasts a total number of two switching positions and has been constructed with a weight that ensures stability without compromising on ease of installation. The seals are made from FKM material, known for its chemical resistance and suitability for various types of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR. In summary, the Bosch Rexroth 4WE6MB6X/EG24N9DK23L/V valve is tailored for demanding applications where precision and durability are paramount. Its design incorporates advanced features that ensure reliable performance in controlling fluid dynamics in hydraulic systems.
