- Model:LFA50DB2-7X/310NE
Quantity in stock: 0
The Bosch Rexroth LFA50DB2-7X/310NE (R901412473) is a sophisticated pressure relief valve designed for subplate mounting and manual pressure adjustment. This valve is part of the Typeexamination tested safety valves type LFA, which complies with the Pressure Equipment Directive EU and operates as a pilot-operated 3-way cartridge valve in a seat design. The product features a reliable pressure limitation unit integrated into its control cover, ensuring that the pressure is effectively limited in conjunction with a way cartridge valve. The LFA50DB2-7X/310NE has been meticulously engineered to fit installation bores according to ISO standards, and it comes with a factory nozzle fitting that must not be altered to maintain its integrity and performance. The valve's construction includes a cartridge valve designed as a seat valve without an area difference, which increases operational safety by preventing internal leakage from the spring chamber to port B. This model is capable of handling maximum operating pressures up to bar and can accommodate maximum flow rates of l/min. The pressure limitation unit is available with an optional rotary knob for easy manual adjustment of the pressure setting without affecting the set relief pressure, facilitating regular functional tests. With its hexagon type actuation for manual pressure adjustment and NBR seals suitable for various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, HFC, this Bosch Rexroth valve is designed for reliability and ease of use. The product also offers different response pressure adjustment types and can be ordered with an optional sealable valve mounting set as accessories. With its size component series X designation, this model exemplifies Bosch Rexroth's commitment to quality in hydraulic components.
Size 50, manual maximum pressure adjustment
Control cover for 2-way cartridge valves, reliable limiting of the pressure in connection with a 2-way cartridge valve according to the hydraulic symbol.
Unpacked Weight: 10.750 kg
General
Type-examination tested safety valves type LFA . DB…E according to Pressure Equipment Directive 2014/68/EU are pilot-operated 2-way cartridge valves in seat design with set relief pressure setting pmax.

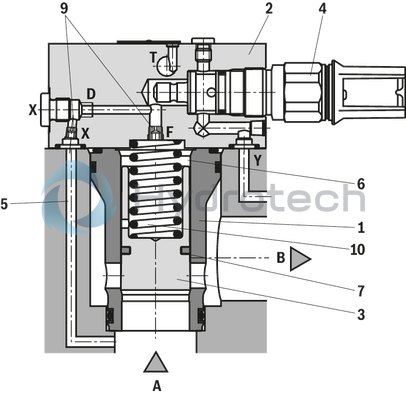

The complete valve generally consists of one cartridge valve (1) for installation bores according to ISO 7368 and one respective control cover (2) with integrated sealed pressure limitation unit (4).
The factory nozzle fitting (9) ("X", "F") as well as the installed compression spring (10) must not be changed.
The installation position ("D") is not fitted. The cartridge valve (1) is designed as seat valve without area difference. The relief pressure effective at port A is directed to the spring chamber (6) of the cartridge valve (1) and to the pressure limitation unit (4) via channel X (5). The piston sealing (7) prevents an internal leakage from the spring chamber (6) to port B and thus increases the operational safety by avoiding gap filtration. Under the pressure value set at the pressure limitation unit (4), the spool (3) is pressure-compensated and remains closed in a seat-tight manner due to the spring force of the compression spring (10). The pressure equilibrium at the spool (3) is only changed when the relief pressure at port A is reached, namely by opening the pressure limitation unit (4), so that excessive hydraulic fluid directly flows to
channel B via the spool (3) and the pressure in A is limited to the set pressure value.
The pressure limitation unit (4) is optionally available with rotary knob. This allows for a manual reduction of the pressure adjustment without changing the relief pressure setting. This simplifies a regular functional test.
| Hexagon |
| Type-examination tested |
| Size 32 … 63 |
| Maximum operating pressure 420 bar |
| Maximum flow 5000 l/min |
| Type-examination tested safety valves according to Pressure Equipment Directive 2014/68/EU |
| Component series 7X |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Max. pressure | 400 |
| Productgroup ID | 9,10,11,12,13,14 |
| Type of actuation | manual pressure adjustment |
| Size | 50 |
| Type of connection | Subplate mounting |
| Weight | 10.750 |
| Seals | NBR |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
||
|
LFA |
DB |
– |
7X |
/ |
E |
|
01 |
Control cover |
LFA |
|
02 |
Size 40 |
40 |
|
Size 50 |
50 |
|
|
Size 63 |
63 |
|
|
03 |
Pressure relief function |
DB |
|
Adjustment types |
||
|
04 |
Rotary knob |
1 |
|
Hexagon |
2 |
|
|
05 |
Component series 70 ... 79 (70 ... 79: unchanged installation and connection dimensions) |
7X |
|
Response pressure (50 … 400 bar, in steps of 10 bar, for maximum flow, see below) |
||
|
06 |
50 bar |
050 |
|
60 bar |
060 |
|
|
…bar |
… |
|
|
400 bar |
400 |
|
|
Seal material |
||
|
07 |
NBR seals |
N |
|
FKM seals |
F |
|
|
Observe compatibility of seals with hydraulic fluid used. |
||
|
08 |
Type-examination tested safety valve according to Pressure Equipment Directive 2014/68/EU |
E |
|
Size |
Component marking |
Maximum flowqVmax in l/min "Q" |
Response pressure p in bar "p" |
|
|
Mineral oils: HL, HLP |
Other approved hydraulic fluids (see "Technical data") |
|||
|
40 |
TÜV.SV.▢‒1138.38.F.Q.p |
900 |
800 |
50 … 90 |
|
1500 |
1350 |
100 … 190 |
||
|
2000 |
1800 |
200 … 290 |
||
|
2400 |
2150 |
300 … 400 |
||
|
50 |
TÜV.SV.▢‒1138.48.F.Q.p |
1400 |
1400 |
50 … 90 |
|
2000 |
2000 |
100 … 190 |
||
|
2600 |
2600 |
200 … 290 |
||
|
3600 |
3600 |
300 … 400 |
||
|
63 |
TÜV.SV.▢‒1138.61.F.Q.p |
1750 |
1550 |
50 … 90 |
|
2500 |
2250 |
100 … 190 |
||
|
3600 |
3600 |
200 … 290 |
||
|
5000 |
5000 |
300 … 400 |
||
▢ Information is entered at the factory
Order example:
qV = 2200 l/min, p = 270 bar
→ Type LFA 50 DB.‒7X/270.E
→ TÜV.SV.▢‒1138.48.F.2600.270
general
|
Size |
40 | 50 | 63 | |
|
Ambient temperature range |
°C |
-10 … +80 | ||
hydraulic
|
Size |
40 | 50 | 63 | ||
|
Maximum operating pressure |
Port B |
bar |
15 | ||
|
Port T |
depressurized to the tank | ||||
|
Port Y |
depressurized to the tank | ||||
|
Maximum response pressure |
Port A |
bar |
400 | ||
|
Port X |
bar |
400 | |||
|
Maximum flow 1) |
Port A to B |
l/min |
2400 | 3600 | 5000 |
|
Maximum pilot flow |
Port Y |
l/min |
4 | 15 | 23 |
|
Port T |
l/min |
4 | 15 | 23 | |
|
Hydraulic fluid |
see table below | ||||
|
Hydraulic fluid temperature range |
°C |
-10 … +60 | |||
|
Viscosity range |
mm²/s |
12 … 230 | |||
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 2) |
Class 20/18/15 | ||||
| 1) | With mineral oil |
| 2) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
|
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
Data sheet |
|
|
Mineral oils |
HL, HLP |
NBR, FKM |
DIN 51524 |
90220 |
|
|
Bio-degradable |
Insoluble in water |
HETG |
FKM |
ISO 15380 |
90221 |
|
HEES |
FKM |
||||
|
Soluble in water |
HEPG |
FKM |
ISO 15380 |
||
|
Flame-resistant |
Water-free |
HFDU (glycol base) |
FKM |
ISO 12922 |
90222 |
|
HFDU (ester base) |
FKM |
||||
|
HFDR |
FKM |
||||
|
Containing water |
HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620) |
NBR |
ISO 12922 |
90223 |
|
|
Important information on hydraulic fluids: For more information and data on the use of other hydraulicfluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). Flame-resistant - containing water: Life cycle as compared to operation with mineral oil HL, HLP 30 … 100%. Bio-degradable and flame-resistant: If this hydraulic fluid is used, small amounts of dissolved zinc may get into the hydraulic system. |
|||||
For applications outside these parameters, please consult us!

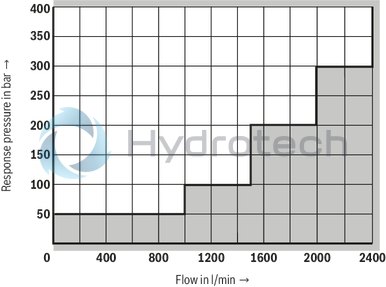

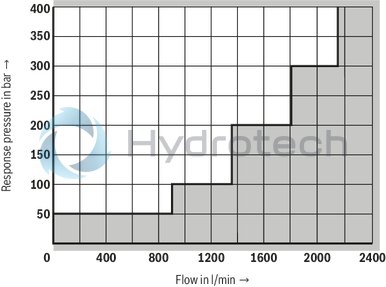

Admissible flow ranges – size 40
Mineral oil
(measured with HLP46, ϑOil = 40 ±5 °C)
Other approved hydraulic fluids (see "Technical data")
(simulated; kinetic viscosity 40 mm²/s)

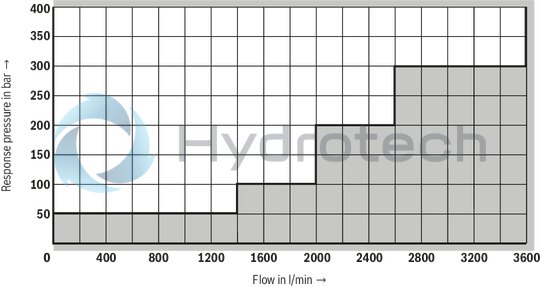

Admissible flow ranges – size 50
Mineral oil
(measured with HLP46, ϑOil = 40 ±5 °C)
Other approved hydraulic fluids (see "Technical data")
(simulated; kinetic viscosity 40 mm²/s)

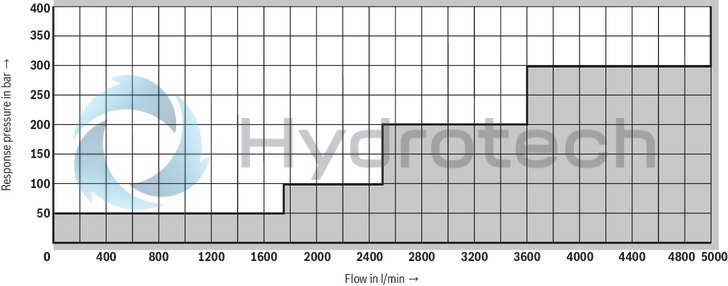

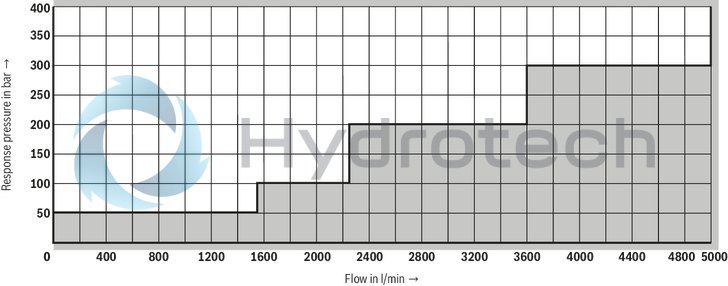

Admissible flow ranges – size 63
Mineral oil
(measured with HLP46, ϑOil = 40 ±5 °C)
Other approved hydraulic fluids (see "Technical data")
(simulated; kinetic viscosity 40 mm²/s)
Notes:
The flow values only apply for depressurized pilot oil return. Operating points in the gray areas of the characteristic curves are not admissible with this valve. Observe the admissible flows of the overall system.
Dimensions in mm
|
1 |
Name plate |
|
2 |
Locating pin |
|
3 |
Pilot control valve, adjustment type "2" |
|
4 |
Pilot control valve, adjustment type "1" |
|
5 |
For valve mounting set, see below |
|
6 |
External connections |
|
NG |
H1 |
H2 |
H3 |
H4 |
H5 |
H6 |
▢ L1 |
L2 |
L3 |
L4 |
L5 |
D1 |
D2 |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|||
| 40 | 60 | 32 | 27 | 69 | 105 | 28 | 125 | 89 | 76 | 60 | 68 | G1/4 | G1/4 |
| 50 | 60 | 34 | 31 | 67 | 122 | 23 | 140 | 105 | 84 | 70 | 79 | G1/2 | G1/4 |
| 63 | 82 | 50 | 40 | 91 | 155 | 30 | 180 | 144 | 90 | 90 | 90 | G1/2 | G1/2 |
Notice:
The dimensions are nominal dimensions which are subject to tolerances.
Valve mounting set (separate order)
|
Size |
Quantity |
Comprising: |
Material number |
|
40, 50 |
4 |
Hexagon socket head cap screw ISO 4762 - M20 x 80 - 10.9-flZn/nc/480h/C (thereof 1 special screw with bore) Tightening torque MA = 480 Nm ±10 % |
R901362574 |
|
1 |
Sealing material |
||
|
63 |
4 |
Hexagon socket head cap screw ISO 4762 - M30 x 110 - 10.9-flZn/nc/480h/C (thereof 1 special screw with bore) Tightening torque MA = 1600 Nm ±10 % |
R901362575 |
|
1 |
Sealing material |
Notices:
For reasons of stability, exclusively the specified valve mounting screws may be used. The specified tightening torques were calculated with total friction coefficient μtotal = 0.09 ... 0.14; adjust in case of modified surfaces. The specified tightening torques stated are guidelines when using screws with the specified friction coefficients and when using a manual torque wrench (tolerance ± 10%).Installation bore and connection dimensions according to ISO 7368 (main pressure relief valve)
|
1 |
Depth of fit |
|
2 |
Port B can be positioned arbitrarily, radially to port A, observing the tapped holes and pilot oil bores. |
|
3 |
Bore for locating pin |
|
NG |
40 | 50 | 63 | |
|
ØD1H7 |
mm |
75 | 90 | 120 |
|
ØD2 |
mm |
40 | 50 | 63 |
|
ØD3 |
mm |
40 | 50 | 63 |
|
ØD3 max 1) |
mm |
50 | 63 | 80 |
|
ØD4H7 |
mm |
55 | 68 | 90 |
|
D5 |
M20 | M20 | M30 | |
|
ØD6 |
mm |
10 | 10 | 12 |
|
ØD7H13 |
mm |
6 | 8 | 8 |
|
H1 |
mm |
84.5 | 97.5 | 127 |
|
H2 |
mm |
105 | 122 | 155 |
|
mm |
+ 0.1 | + 0.1 | + 0.1 | |
|
H3 |
mm |
87 | 100 | 130 |
|
mm |
± 0.3 | ± 0.3 | ± 0.3 | |
|
H4 |
mm |
45 | 45 | 65 |
|
H5 |
mm |
15 | 17 | 20 |
|
H6 |
mm |
3 | 3 | 4 |
|
H7 |
mm |
30 | 35 | 40 |
|
H8 |
mm |
3 | 4 | 4 |
|
H9 |
mm |
2.5 | 2.5 | 3 |
|
L1 |
mm |
125 | 140 | 180 |
|
L2 |
mm |
85 | 100 | 125 |
|
L3 |
mm |
42.5 | 50 | 62.5 |
|
L4 |
mm |
50 | 58 | 75 |
|
L5 |
mm |
23 | 30 | 38 |
|
U |
mm |
0.05 | 0.05 | 0.05 |
|
Ro max |
mm |
4 | 4 | 4 |
|
Ru max |
mm |
1 | 1 | 1 |
| 1) | Recommendation deviating from the standard. |
Safety instructions
When selecting a type-examination tested safety valve, it must be observed that for the desired response pressure p the maximum flow possible lies below the admissible flow qVmax . According to the Pressure Equipment Directive 2014/68/EU, the increase in the system pressure due to the flow must not exceed 10 % of the set response pressure (see type key, component marking). The maximum admissible flow specified in the component marking qVmax must not be exceeded! Discharge lines of safety valves must end in a risk-free manner. Fluid must not accumulate in the discharge system (see data sheet AD2000 A2). Safety valves with adjustment type “1” (rotary knob) may only be unloaded in case of maintenance. Operation outside the specified pressure ranges is not admissible.
Always observe application notes:
The response pressure with a flow of 12 l/min and a hydraulic fluid viscosity of 46 mm2/s specified in the component marking is set by default. Within the admissible viscosity range, the response pressure may vary by +3 % (230 mm2/s) to -3 % (12 mm2/s).
The maximum flow stated in the component marking applies for applications without counter pressure in the control line (port Y). By removing the lead seal at the safety valve, the approval according to the Pressure Equipment Directive becomes void. The nozzle fittings installed at the factory as well as the main spool compression spring must not be changed. Basically, the requirements of the Pressure Equipment Directive and of data sheet AD 2000 A2 have to be observed. In order to prevent unauthorized assembly, the valve assembly can be additionally secured by means of the valve mounting set (sealing) (separate order, see “Dimensions”).
