BOSCH REXROTH
R901391194

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

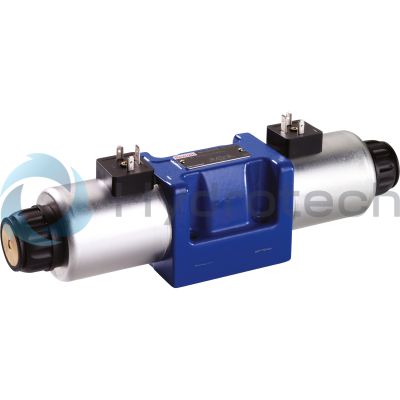

The Bosch Rexroth 4WE 10 U5X/HG24N9K4/M (R901391194) is a high-performance industrial hydraulic valve designed for reliable control and direction of oil flow in hydraulic systems. This direct-actuated spool valve features a Size U spool symbol and operates with solenoid actuation, ensuring precise and efficient switching between ports. The valve is capable of handling a maximum pressure, with an electrical connection that adheres to the EN standard, showcasing a connector pole PE. Equipped with four ports, the 4WE 10 U5X/HG24N9K4/M valve is solenoid-actuated, providing smooth operation through electrical signals. The unit's size allows for significant flow rates while maintaining accurate control over the hydraulic functions it governs. It offers subplate mounting for secure installation and compatibility with various hydraulic systems. The connection diagrams follow NFPA T3.5.1 R2 D03 and ISO standards, ensuring that this valve can be integrated into a wide range of equipment without compatibility issues. The supply voltage required for operation is 24 VDC, which matches common industry standards for ease of integration. This model has multiple switching positions that allow for versatile application use. Weighing in at only .7 kg, it provides a compact yet robust solution for fluid power control. The seals are made from NBR material, suitable for use with various types of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC types. Overall, the Bosch Rexroth 4WE 10 U5X/HG24N9K4/M valve stands out as a dependable component for those needing precise control in their hydraulic systems while maintaining durability and performance under demanding conditions.
