- Model:HM 20-2X/160-C-K35
Quantity in stock: 4

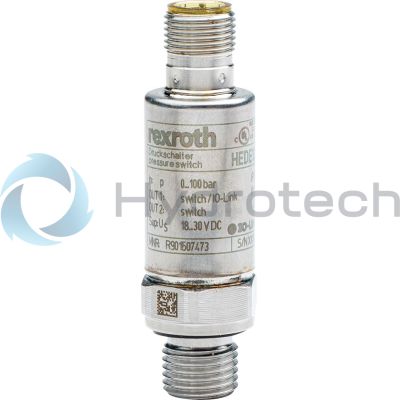

The Bosch Rexroth HM 20-2X/160-C-K35-N (R901381345) is a high-precision pressure transducer designed for dynamic pressure control in hydraulic systems. This robust sensor features an analog output of 4...20 mA, suitable for a pressure range up to 160 bar, and is equipped with a G1/4 hydraulic connection. The throttle element ensures a short signal rise time of less than 10 ms, which is crucial for applications requiring rapid response times. All components of the HM 20-2X/160-C-K35-N that come into contact with the media are constructed from durable stainless steel, offering excellent resistance to corrosive fluids and ensuring longevity in harsh environments. The device boasts a high degree of measurement accuracy of less than ±0.5% FS and showcases outstanding overload and bursting behavior, making it reliable for safety-critical applications. The thin-film measuring cell at the core of this sensor provides precise measurements with an accuracy class of 0.5 and non-repeatability less than 0.1%. It operates within a wide temperature range from -30°C to +80°C and has been granted marine approval by DNVGL, confirming its suitability for maritime applications. This model features an M12x1 electrical connection with A-coding according to EN standards, ensuring compatibility with industry-standard connectors. Its design conforms to CE standards for electromagnetic compatibility, as well as the RoHS Directive for hazardous substances, cULus listing, UL recognition, and UKCA marking. With its maximum operating pressure capability of up to 600 bar across various pressure ratings (40, 100, 160, 250, 315, 400, and 600 bar), the HM 20-2X/160-C-K35-N is versatile for different system requirements. It also supports various hydraulic fluids like HL,HLP,HFC,Nitrogen up to 350 bar. The unit's weight is approximately .4 kg and comes without a display but includes seals made from NBR (Nitrile Butadiene Rubber), providing reliable sealing performance in typical industrial conditions. The supply voltage required for operation is set at standard industrial levels of +24 VDC.
Pressure transducer with analog output 4 … 20 mA, pressure range 0 … 160 bar, connector 4-pole M12x1 A-coded, throttle element
Short signal rise time
Unpacked Weight: 0.0606 kg
Pressure transducers are used to monitor and control hydraulic pressures. They transform the measured pressure into a normalized, linear, electrical output signal.
Thin film measuring cell |
Analog output: 4 … 20 mA |
Hydraulic connection G1/4 |
Throttle element in the pressure channel |
Connector 4-pole, M12x1, A-coded |
Component series 2X |
Data Sheet | Download Data Sheet |
3D CAD | Download 3D CAD |
3D CAD | Download 3D CAD |
Max. pressure | 160 |
Electrical connection description | Connector, 4-pole, M12 x 1, coding A according to EN 61076-2-101 |
Productgroup ID | 9,10,11,12,13,14 |
Conformity description | CE – electro-magnetic compatibility 2014/30/EU RoHS Directive 2011/65/EU |
Display | no |
Connection diagram | Male thread G1/4 |
Supply voltage | 24 VDC |
Weight | 0.0606 |
Seals | NBR |
Output signal | 4 … 20 mA |
Hydraulic fluid | HL,HLP,HFC,Nitrogen (up to 300 bar) |
Conformity | CE,UL,UKCA,RoHS,DNV |
01 |
02 |
03 |
04 |
05 |
06 |
||||
HM20 |
– |
2X |
/ |
– |
– |
K35 |
01 |
Pressure transducer |
HM20 |
02 |
Component series 20 ... 29 (20 ... 29: unchanged installation dimensions and pin assignments) |
2X |
03 |
10 bar |
10 |
50 bar |
50 |
|
100 bar |
100 |
|
160 bar |
160 |
|
250 bar |
250 |
|
315 bar |
315 |
|
400 bar |
400 |
|
630 bar1) |
630 |
|
04 |
Current output 4 to 20 mA 2) |
C |
Voltage output 0.1 to 10 V |
H |
|
05 |
Connector, 4-pole, M12x1 |
K35 |
06 |
Without throttle element |
ohne Bez. |
Throttle element (corresponds to 0.3 mm nozzle) 3), 4) |
N |
1) | Only available with throttle element |
2) | With marine approval DNV-GL |
3) | Only available for versions with 250, 315, 400 and 630 bar |
4) | Highly dynamic effects in like pressure peaks or cavitation in hydraulic systems may damage the measuring cell. For these applications, devices with integrated throttle element [version "-N"] in the process interface have to be used. |
Replacement seal ring |
|
Designation |
Material number |
Seal ring NBR |
R900012467 |
Cable sets or mating connectors are not included in the scope of delivery; please order separately.
General
Component series |
2X |
Eingangsgrößen
Operating voltage 1) |
US |
16 … 36 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Residual ripple |
UPP |
2.5 V (40 to 400 Hz) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Maximum current consumption 2) |
Imax |
mA |
≤ 12 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Isolation resistance |
R |
MΩ |
> 100 (500 VDC) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pressure measuring ranges |
pN |
bar |
10 | 50 | 100 | 160 | 250 | 315 | 400 | 630 | 10 | 50 | 100 | 160 | 250 | 315 | 400 | 630 | 10 | 50 | 100 | 160 | 250 | 315 | 400 | 630 | 10 | 50 | 100 | 160 | 250 | 315 | 400 | 630 | 10 | 50 | 100 | 160 | 250 | 315 | 400 | 630 | 10 | 50 | 100 | 160 | 250 | 315 | 400 | 630 | 10 | 50 | 100 | 160 | 250 | 315 | 400 | 630 | 10 | 50 | 100 | 160 | 250 | 315 | 400 | 630 |
1) | With cULus: max. of 30 VDC is admissible |
2) | With voltage output |
Output parameters
Output signal |
admissible load |
Current |
ISig |
4 … 20 mA, RA = (US - 8.5 V) / 0.0215 A with RA in Ω and US in V | |
Voltage |
USig |
0.1 … 10 V, RA > 2 kΩ | |||
Setting time (10 ... 90 %) |
t |
ms |
< 1 | ||
Accuracy class 1) |
% |
< 0.5 | |||
Temperature coefficient |
Zero point and range |
< 0.1 % / 10 K | |||
Hysteresis 2) |
% |
< 0.15 | |||
Long-term drift (1 year) under reference conditions |
% |
< 0.1 |
1) | Related to the complete measurement range, including non-linearity, hysteresis, zero point and end value deviation (corresponds to the measuring deviation according to IEC 61298-2) |
2) | Related to the temperature range -20 … 80 °C |
Ambient conditions
Ambient temperature range |
ϑ |
°C |
-40 … +85 |
Storage temperature range |
ϑ |
°C |
-40 … +100 |
Hydraulic fluid temperature range |
ϑ |
°C |
-40 … +90 |
Other characteristics
Pressure port 1) |
G1/4 according to DIN 3852 form E, seal ring according to DIN 3869-14 | |||
Material |
Throttle |
1.4305 | ||
Housing |
V4A (1.4404), PEI, HNB | |||
in contact with the medium |
1.4542, 1.4305, NBR | |||
Pressure media 2) |
HL, HLP, HFC, nitrogen, others upon request | |||
Tightening torque range |
Measurement ranges > 400 bar |
MA |
Nm |
20 … 25 |
Measurement ranges ≥ 400 bar |
MA |
Nm |
25 … 30 | |
Anschlussart |
4-pole M12 connector at the housing | |||
Type of protection according to EN 60529 |
IP65 / IP67 with mating connector correctly mounted and locked | |||
Weight |
m |
kg |
0.06 | |
Life cycle |
60 million load cycles or 60000 h | |||
Admissible shock and vibration loads according to DIN EN 60068-2-27 |
15 g / 11 ms / 3 axes | |||
Sine test according to DIN EN 60068-2-6:2008 |
10 ... 2000 Hz / maximum 10 g / 10 cycles / 3 axes | |||
Noise test according to DIN EN 60068-2-64 |
20 … 2000 Hz / 14 g RMS / 42 g peak / 24 h / 3 axes | |||
Electro-magnetic compatibility |
EMC EN 61000-4-2 ESD |
4 kV CD / 8 kV AD with BWK B | ||
EMC EN 61000-4-3 HF radiated |
10 V / m (80 ... 2700 MHz) with BWK A | |||
EMC EN 61000-4-4 Burst |
2 kV with BWK B | |||
EMC EN 61000-4-5 Surge |
1 kV / 42 Ω with BWK B | |||
EMC EN 61000-4-6 HF line-bound |
10 Veff (150 kHz ... 80 MHz) with BWK A | |||
EMC EN 61000-4-8 Magnetic field 50/60 Hz |
100 A/m with BWK A | |||
EMC EN 61000-4-9 Magnetic field pulsed |
1000 A/m with BWK A | |||
EMC EN 55016-2-1 Interference voltage |
0.15 ... 30 MHz, class A, EN 55022 | |||
EMC EN 55016-2-3 Radio interference field strength |
30 ... 1000 MHz, class B, EN 55022 | |||
Conformity |
CE according to the EMC directive | |||
Further tests |
cULus-listed |
1) | Thorough bleeding must be ensured |
2) | Maximum of 300 bar is admissible |
For applications outside these parameters, please consult us!
Voltage |
Current (two-wire system) |
Values for US, RA and USig, see Technical data |
Values for US, RA and USig, see Technical data |
Dimensions in mm
1 |
Pressure port G1/4 male thread |
2 |
Seal ring |
3 |
4-pole M12 connector |
Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1, with assembled connection line, cable shielded
4P M12 +
Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1, with assembled connection line, cable shielded
4P M12 +
For sensors and valves with connector “K24”, “K35” and “K72” Cable sets M12, 4-pole, line cross-section 0.34 mm2Data sheet
