- Model:ZDREE6VP2-1X/210MG24N9K24F1M
Quantity in stock: 0
The Bosch Rexroth ZDREE6VP2-1X/210MG24N9K24F1M (R901366629) is a state-of-the-art industrial hydraulic valve designed for precise pressure reduction and control in hydraulic systems. Engineered to offer reliable performance, this pilot-operated 3-way pressure reducing valve integrates advanced features including a proportional solenoid with integrated electronics for command value-dependent pressure settings. The valve's technical setup is composed of a pilot control valve, a proportional solenoid with control electronics, and a main valve with a main control spool. This configuration enables the ZDREE6VP2-1X/210MG24N9K24F1M to effectively manage the pressure in channel P, ensuring that it corresponds accurately to the input command value. The connection from P to T is opened while blocking the connection from P to A when in an initial position due to the force of the spring on the main control spool. For pressure reduction, the pilot pressure builds up within the control chamber correlating with the command value, facilitating fluid flow from P to A. The design also incorporates a pressure limitation feature that activates if the pressure in port P surpasses the set level, thereby moving the main control spool further left and opening up a connection from P to T which limits the port's pressure. This Bosch Rexroth valve boasts specifications such as an electrical connection via an M12 standard connector pole, CE conformity for electromagnetic compatibility within EU standards, and suitability for various hydraulic fluids like HL, HLP, HLPD, HVLP, HVLPD, and HFC. Additionally, it has a maximum flow rate of 6 liters per minute and operates on a supply voltage of 24 VDC. The sandwich plate or subplate mounting options provide versatility for system integration following ISO standards or NFPA T3.5.1 R2-2002 D03 pattern. Designed for robust industrial applications demanding precise hydraulic control and reliability, this Bosch Rexroth valve is essential for systems requiring accurate pressure regulation and limitation functions.
Size 6, P2 → P1, electrical with integrated electronics, 24 V DC
Industrial hydraulic valve in a high performance range. Reliable reduction of the pressure to the command value signal.
Unpacked Weight: 1.850 kg
The valves of type ZDRE are electrically pilot-operated 3-way pressure reducing valves with pressure limitation of the actuator. They are used for reducing a system pressure.
Technical set-up:

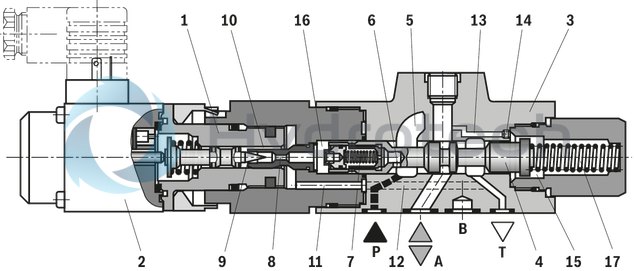

The valve consists of three main assemblies:
Pilot control valve (1) Proportional solenoid (2) Main valve (3) with main control spool (4)Function:
General function:
Command value-dependent setting of the pressure to be reduced in channel P1 via the proportional solenoid (2). In the depressurized port P, the spring (17) holds the main control spool (4) in the initial position. Thus, opening the connection from P1 to T and blocking of the connection from P to P1. Pressure connection from port P to the ring channel (5). Pilot oil flows from the bore (6) to port T, via the flow controller (7), the nozzle (8) to the pilot control valve (1), the throttle gap (9) to the longitudinal groove (10) and the bores (11, 12).Pressure reduction:
Build-up of the pilot pressure in the control chamber (16) as function of the command value. Movement of the main control spool (4) to the right, hydraulic fluid flows from P to P1. Actuator pressure present in port P1 to the spring chamber (15) via channel (13) and nozzle (14). Increase in the pressure in port P1 to the set pressure of the pilot control valve (1) leads to the movement of the main control spool (4) to the left. Pressure in port P1 is almost identical with the set pressure at the pilot control valve (1).Pressure limitation:
If the pressure in port P1 exceeds the set pressure of the pilot control valve (1), the main control spool (4) is moved further to the left. This opens the connection from P1 to T and limits the pressure present in port P1 to the set command value.
The valves of type ZDREE are electrically pilot-operated 3-way pressure reducing valves with pressure limitation of the actuator. They are used for reducing a system pressure.
Technical set-up:
The valve consists of three main assemblies:
Pilot control valve (1) Proportional solenoid (2) with control electronics (18) Main valve (3) with main control spool (4)Function:
General function:
Command value-dependent setting of the pressure to be reduced in channel P1 via the proportional solenoid (2). In the depressurized port P, the spring (17) holds the main control spool (4) in the initial position. Thus, opening the connection from P1 to T and blocking of the connection from P to P1. Pressure connection from port P to the ring channel (5). Pilot oil flows from the bore (6) to port T, via the flow controller (7), the nozzle (8) to the pilot control valve (1), the throttle gap (9) to the longitudinal groove (10) and the bores (11, 12). Supply and command value voltage or command value current are applied to the connector (19). At the factory, the command value pressure characteristic curve is adjusted with little manufacturing tolerance.Pressure reduction:
Build-up of the pilot pressure in the control chamber (16) as function of the command value. Movement of the main control spool (4) to the right, hydraulic fluid flows from P to P1. Actuator pressure present in port P1 to the spring chamber (15) via channel (13) and nozzle (14). Increase in the pressure in port P1 to the set pressure of the pilot control valve (1) leads to the movement of the main control spool (4) to the left. Pressure in port P1 is almost identical with the set pressure at the pilot control valve (1).Pressure limitation:
If the pressure in port P1 exceeds the set pressure of the pilot control valve (1), the main control spool (4) is moved further to the left. This opens the connection from P1 to T and limits the pressure present in port P1 to the set command value.
| Spool valve |
| Pilot-operated |
| Pressure rating 210 bar |
| Analog electronics |
| Size 6 |
| Component series 1X |
| Maximum operating pressure 210 bar |
| Maximum flow 30 l/min |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | P2 → P1 |
| Max. pressure | 315 |
| Electrical connection description | Connector, 4-pole, M12 x 1, coding A according to EN 61076-2-101 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 4 |
| Type of actuation | Electrical with integrated electronics |
| Conformity description | CE – electromagnetic compatibility 2014/30/EU |
| Size | 6 |
| Max. flow | 30 |
| Type of connection | Sandwich plate |
| Connection diagram NFPA | NFPA T3.5.1 R2-2002 D03 |
| Size_CETOP | D03 |
| Connection diagram | ISO 4401-03-02-0-05 |
| Supply voltage | 24 VDC |
| Number of switching positions | 2 |
| Weight | 1.850 |
| Seals | NBR |
| Connectivity | Analog, command value 4 … 20 mA |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
| Conformity | CE |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
15 |
||
|
Z |
DRE |
6 |
‒ |
1X |
/ |
M |
G24 |
* |
|
01 |
Sandwich plate |
Z |
|
02 |
Proportional pressure reducing valve |
DRE |
|
03 |
For external analog electronics |
no code |
|
With integrated electronics |
E |
|
|
04 |
Size 6 |
6 |
|
Pressure reduction |
||
|
05 |
in channel A (subplate mounting) |
no code |
|
In channel P (sandwich plate valve) |
VP |
|
|
Position of the mating connector (omitted in case of subplate mounting) |
||
|
06 |
|
1 |
|
2 |
|
|
3 |
|
|
4 |
|
|
07 |
Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) |
1X |
|
Pressure rating |
||
|
08 |
50 bar |
50 |
|
100 bar |
100 |
|
|
210 |
||
|
315 bar |
315 1) |
|
|
09 |
Without check valve |
M |
|
Power supply |
||
|
10 |
Direct voltage 24 V |
G24 |
|
11 |
With manual override |
N9 |
|
Without manual override |
no code |
|
|
Electrical connection |
||
|
12 |
For type ZDRE: |
|
|
Without mating connector; connector DIN EN 175301-803 |
K4 |
|
|
For type ZDREE: |
||
|
Without mating connector; connector M12 |
K24 |
|
|
Electrical interface |
||
|
13 |
Command value 0 … 10 V |
A1 |
|
Command value 4 to 20 mA |
F1 |
|
|
For type ZDRE: |
no code |
|
|
Seal material |
||
|
14 |
NBR seals |
M |
|
FKM seals |
V |
|
|
15 |
Further details in the plain text |
* |
For applications outside these parameters, please consult us!
general
|
Type |
ZDRE | ZDREE | |
|
Size |
6 | ||
|
Component series |
1X | ||
|
Installation position |
Any | ||
|
Weight |
kg |
2 | 2.1 |
|
Storage temperature range |
°C |
-20 … +80 | |
|
Ambient temperature range |
°C |
-20 … +70 | |
hydraulic
|
Type |
ZDRE | ZDREE | ||
|
Size |
6 | |||
|
Maximum operating pressure |
bar |
315 | ||
|
Maximum operating pressure |
Port P |
bar |
315 | |
|
Port P1 |
bar |
210 | ||
|
Port P2 |
bar |
315 | ||
|
Port A |
bar |
210 | ||
|
Port B |
bar |
210 | ||
|
Port T |
separate and depressurized to the tank | |||
|
Maximum set pressure in ports P1 and A |
Pressure rating 50 bar |
bar |
50 | |
|
Pressure rating 100 bar |
bar |
100 | ||
|
Pressure rating 210 bar |
bar |
210 | ||
|
Pressure rating 315 bar 1) |
bar |
315 | ||
|
Minimum set pressure 2) |
See characteristic curves | |||
|
Pilot flow |
l/min |
0.65 | ||
|
Maximum flow |
l/min |
30 | ||
|
Hydraulic fluid |
see table | |||
|
Hydraulic fluid temperature range |
°C |
-20 … +80 | ||
|
Viscosity range |
mm²/s |
15 … 380 | ||
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 3) |
Class 20/18/15 according to ISO 4406 (c) | |||
|
Hysteresis 4) |
% |
± 2.5 | ||
|
Repetition accuracy 4) |
% |
< ± 2 | ||
|
Linearity 4) |
% |
± 3.5 | ||
|
Manufacturing tolerance of the command value pressure characteristic curve 5) |
% |
± 2 | ± 3 | |
|
Step response 6) |
10 ... 90% |
ms |
≈ 150 | |
|
90 ... 10% |
ms |
≈ 150 | ||
| 1) | Only available for "Z" version |
| 2) | with command value 0 in channels P1 and A |
| 3) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
| 4) | Of the maximum set pressure |
| 5) | of the maximum set pressure, related to the hysteresis characteristic curve, pressure increasing |
| 6) | measured with 1 liter standing hydraulic fluid column |
|
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
|
Mineral oils and related hydrocarbons |
HL, HLP |
NBR / FKM |
DIN 51524 |
|
Bio-degradable - insoluble in water |
HETG |
NBR / FKM |
VDMA 24568 |
|
HEES |
FKM |
||
|
Bio-degradable - soluble in water |
HEPG |
FKM |
VDMA 24568 |
|
Flame-resistant - water-free |
HFDU, HFDR |
FKM |
ISO 12922 |
|
Flame-resistant - containing water |
HFC (Fuchs HYDROTHERM 46M, Petrofer Ultra Safe 620) |
NBR |
ISO 12922 |
|
Important information on hydraulic fluids: For more information and data on the use of other hydraulic fluids please contact us. The flash point of the process and operating medium used must be 40 K over the maximum solenoid surface temperature. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). |
Flame-resistant - containing water Maximum operating pressure of 210 bar Maximum hydraulic fluid temperature 60 °C Expected life cycle as compared to HLP hydraulic oil 30% to 100% |
||
electrical
|
Type |
ZDRE | ZDREE | ||
|
Voltage type |
Direct voltage | |||
|
Power supply |
Nominal voltage |
24 V | 24 VDC | |
|
Lower limit value |
VDC |
18 | ||
|
Upper limit value |
VDC |
35 | ||
|
Minimum control current |
mA |
100 | ||
|
Maximum control current |
mA |
1600 | ||
|
Solenoid coil resistance |
Cold value at 20 °C |
Ω |
5 | |
|
Solenoid coil resistance |
Maximum hot value |
Ω |
7.5 | |
|
Duty cycle |
% |
100 | ||
|
Current consumption |
A |
1.5 | ||
|
Required fuse protection |
2 A, time-lag | |||
|
Inputs |
Voltage |
V |
0 … 10 | |
|
Current |
mA |
4 … 20 | ||
|
Outlet |
Actual current value |
1 mV ≙ 1 mA | ||
|
Protection class according to DIN EN 60529 |
IP65 (with mating connector mounted and locked) | |||
|
Conformity |
EN 61000-6-2: 2011-06, EN 61000-6-3: 2011-09 | |||
(measured with HLP46, ϑOil = 40 ±5 °C)

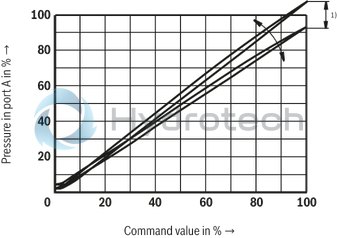

Pressure in port A dependent on the command value (manufacturing tolerance); without flow
(Z)DRE
| 1) | With type (Z)DRE, the manufacturing tolerance at the external amplifier can be adjusted using the command value attenuator potentiometer "Gw". With the digital amplifier, the setting is made using the "Limit" parameter. In this connection, the control current according to the technical data must not be exceeded! In order to match several valves to the same characteristic curve, at a command value of 100%, the pressure must not exceed the maximum set pressure of the relevant pressure rating at no valve. |
Type (Z)DRE: Pressure in port P1 or A dependent on the command value

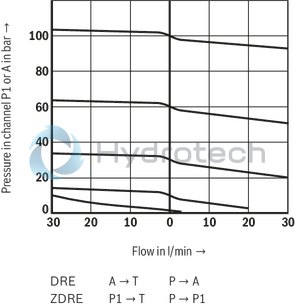

Pressure rating 50 bar
(Z)DRE
Pressure rating 100 bar
(Z)DRE

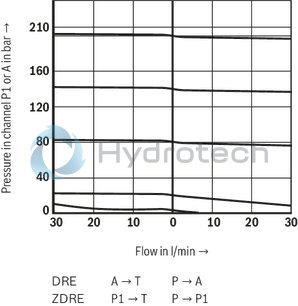

Pressure rating 210 bar
(Z)DRE
Pressure rating 315 bar
ZDRE

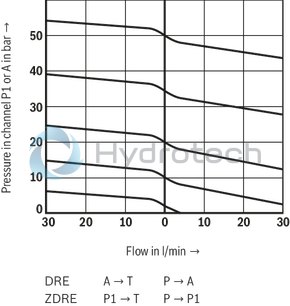

Pressure rating 50 bar
(Z)DREE
Pressure rating 100 bar
(Z)DREE
Pressure rating 210 bar
(Z)DREE
Pressure rating 315 bar
ZDREE
Minimum set pressure in port P1 or A with command value 0 V
(without counter pressure in channel T)
Pressure rating 50 bar
(Z)DRE
Pressure rating 100 bar / 210 bar
(Z)DRE
Pressure rating 315 bar
ZDRE
Pressure in channel P1 or A – flow
Pressure rating 50 bar
(Z)DRE
Pressure rating 100 bar
(Z)DRE
Pressure rating 210 bar
(Z)DRE
Pressure rating 315 bar
ZDRE

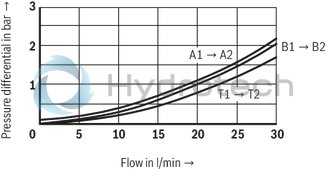

Δp-qV characteristic curves
(Z)DRE
Δp-qV characteristic curves
(Z)DRE
Notice:
The indicated Δp value corresponds to the minimum pressure available in port P (P2) minus the maximum pressure to be controlled in port A (P1).
Type ZDRE 6 VP...
Type ZDREE 6 VP...
(Z)DREE 6...1X
|
Pin assignment |
Contact |
Assignment interface "A1" |
Assignment interface "F1" |
|
Power supply |
1 |
24VDC(u(t)= 21 ...35V);Imax ≤ 1,5 A |
|
|
Command value input |
2 |
0 ... 10 V; Re = 20 kΩ |
4 ... 20 mA; Re = 100 kΩ |
|
Reference potential actual value |
3 |
0 V |
|
|
Differential amplifier input (command value) |
4 |
Reference potential command value |
|
M12 plug-in connector port
Connector on amplifier
Mating connector and wire colors with pre-assembled cable set
Connection at the connector
Connection at mating connector
Connection cable
| 1) | Connection cable:- Recommendation 6-wire, 0.75 or 1mm2 plus protective earthing conductor and screening- Connect screening to PE on supply side only- Maximum admissible length 100 m The minimum supply voltage at the power supply unit depends on the length of the supply line (see diagram) |

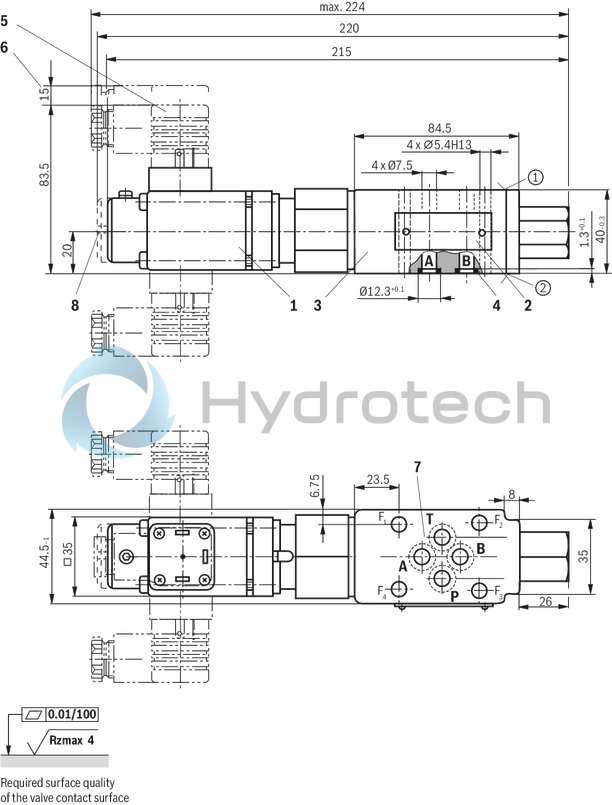

Type ZDRE
Dimensions in mm
|
1 |
Proportional solenoid without manual override |
|
2 |
Name plate |
|
3 |
Valve housing |
|
4 |
Identical seal rings for ports A, B, P, and T |
|
5 |
mating connector according to DIN EN 175301-803 |
|
6 |
Space required to remove the mating connector |
|
7 |
Machined valve contact surface; Porting pattern according to ISO 4401-03-02-0-05 |
|
8 |
Proportional solenoid with manual override |

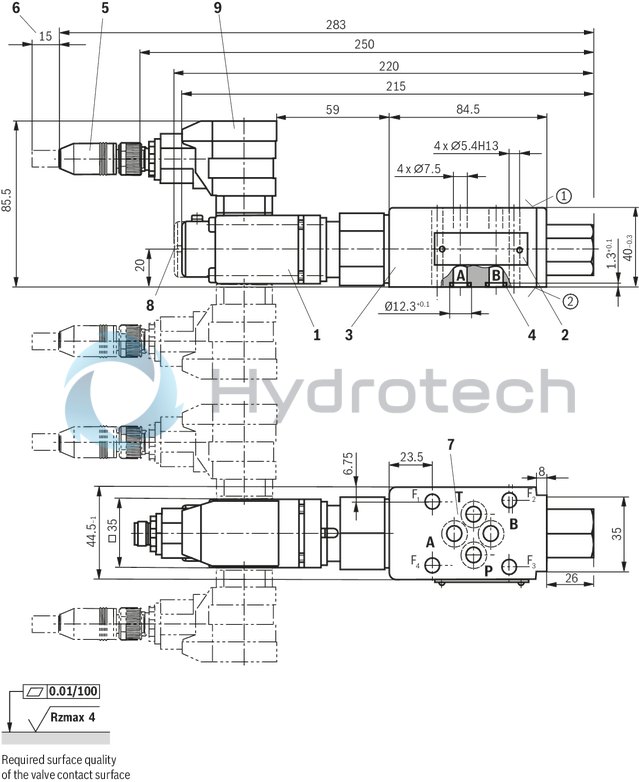

Type ZDREE
Dimensions in mm
|
1 |
Proportional solenoid without manual override |
|
2 |
Name plate |
|
3 |
Valve housing |
|
4 |
Identical seal rings for ports A, B, P, and T |
|
5 |
mating connector according to DIN EN 175301-803 |
|
6 |
Space required to remove the mating connector |
|
7 |
Machined valve contact surface; Porting pattern according to ISO 4401-03-02-0-05 |
|
8 |
Proportional solenoid with manual override |
|
9 |
Integrated electronics (OBE) |
Notice:
The dimensions are nominal dimensions which are subject to tolerances.
Recommended valve mounting screws (separate order):
4 hexagon socket head cap screws ISO 4762 - M5 - 10.9-flZn-240h-LTightening torque MA = 7 Nm ± 10%
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
