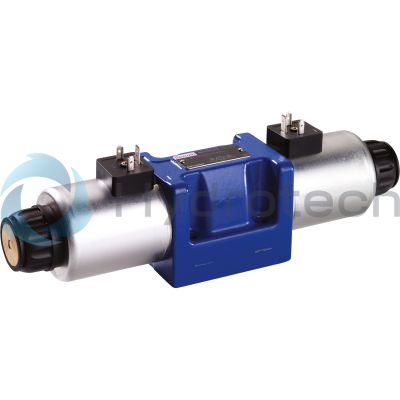

BOSCH REXROTH
R901350497
$1,758.96 USD
- BOSCH REXROTH
- Material:R901350497
- Model:5-4WE 10 Q5X/EG26N6K4K/M
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 5-4WE 10 Q5X/EG26N6K4K/M (R901350497) is a high-performance industrial hydraulic valve designed for reliable switching of oil flow direction. This direct-actuated spool valve, featuring the spool symbol Q, operates with solenoid actuation and is suitable for a variety of hydraulic applications. It has a maximum pressure capability and includes an electrical connector with a pole PE according to EN, which comes with a potted-in plug base and sealing element for secure attachment to the valve housing. The product group ID indicates its categorization within Bosch Rexroth's extensive range of hydraulic components. The valve is equipped with four ports and is designed for subplate mounting, adhering to connection diagram standards NFPA T3.5.1 R2 D03 Size 6 CETOP 3, as well as ISO 4401-03-02-0-05. It supports a supply voltage of 24 VDC and offers two switching positions. Weighing in at .9 kg, the 5-4WE 10 Q5X/EG26N6K4K/M valve is built to last with NBR seals ensuring durability and compatibility with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, HETG, and HFC. This makes it an adaptable component suited for a range of systems requiring precise control over hydraulic flow direction.
The Bosch Rexroth 5-4WE 10 Q5X/EG26N6K4K/M (R901350497) is a high-performance industrial hydraulic valve designed for reliable switching of oil flow direction. This direct-actuated spool valve, featuring the spool symbol Q, operates with solenoid actuation and is suitable for a variety of hydraulic applications. It has a maximum pressure capability and includes an electrical connector with a pole PE according to EN, which comes with a potted-in plug base and sealing element for secure attachment to the valve housing. The product group ID indicates its categorization within Bosch Rexroth's extensive range of hydraulic components. The valve is equipped with four ports and is designed for subplate mounting, adhering to connection diagram standards NFPA T3.5.1 R2 D03 Size 6 CETOP 3, as well as ISO 4401-03-02-0-05. It supports a supply voltage of 24 VDC and offers two switching positions. Weighing in at .9 kg, the 5-4WE 10 Q5X/EG26N6K4K/M valve is built to last with NBR seals ensuring durability and compatibility with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, HETG, and HFC. This makes it an adaptable component suited for a range of systems requiring precise control over hydraulic flow direction.
Size 10, symbol Q, electrical with solenoid, 26 V DC
Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol
Unpacked Weight: 5.2 kg
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Spool symbol | Symbol Q |
| Max. pressure | 350 |
| Electrical connection description | Connector, 3-pole (2 + PE) according to EN 175301-803 (with potted-in plug base and sealing element to the valve housing |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 4 |
| Type of actuation | with solenoid actuation |
| Size | 10 |
| Electrical connector | Connector 3-pole (2 + PE) |
| Type of connection | Subplate mounting |
| Connection diagram NFPA | NFPA T3.5.1 R2-2002 D05 |
| Size_CETOP | D05 |
| Connection diagram | ISO 4401-05-04-0-05 |
| Supply voltage | 26 VDC |
| Number of switching positions | 3 |
| Weight | 5.2 |
| Seals | NBR |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HETG,HFC |
