BOSCH REXROTH
R901322097

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

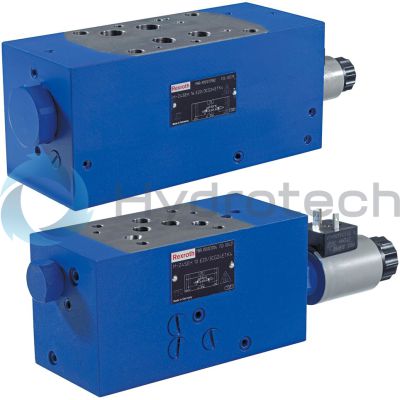

The Bosch Rexroth M-Z4SEH10E2X/3CG24N9PTK4/N (R901322097) is a high-performance industrial hydraulic valve designed for precise control of oil flow direction in hydraulic systems. This solenoid-actuated seat valve is pilot-operated, featuring the spool symbol E, which indicates its specific configuration and function within hydraulic circuits. It is capable of handling a maximum pressure, ensuring reliable performance under demanding conditions. The valve's electrical connection is facilitated through a connector pole PE in accordance with EN standards, highlighting its compatibility with industrial electrical systems. Belonging to a specialized product group, it has multiple ports for integration into various hydraulic setups. The type of actuation is solenoid, which allows for electronic control, making it suitable for automated processes where precision and repeatability are critical. With a size that conforms to CETOP D standards and an interim assembly connection diagram compliant with both NFPA T3.5.1 R2 and ISO standards, the M-Z4SEH10E2X/3CG24N9PTK4/N ensures ease of installation and interchangeability with other components. The supply voltage required for operation is 24 VDC, making it suitable for many industrial applications. This model offers a number of switching positions and boasts a maximum flow rate that can be accommodated without compromising the integrity or performance of the system. It features an electrical connector type Connector pole PE and comes with NBR seals that are compatible with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. Weighing in at an efficient mass, the Bosch Rexroth M-Z4SEH10E2X/3CG24N9PTK4/N valve combines robust construction with advanced engineering to provide reliable operation in a wide range of industrial applications where fluid control is paramount.
